Set-up subject to change without notice. For packages not listed contact Dixie-Narco Factory
Service at (800) 688-9090. Page 36 of 72
ACCEPTS COINS BUT WILL NOT VEND FROM ONE COLUMN

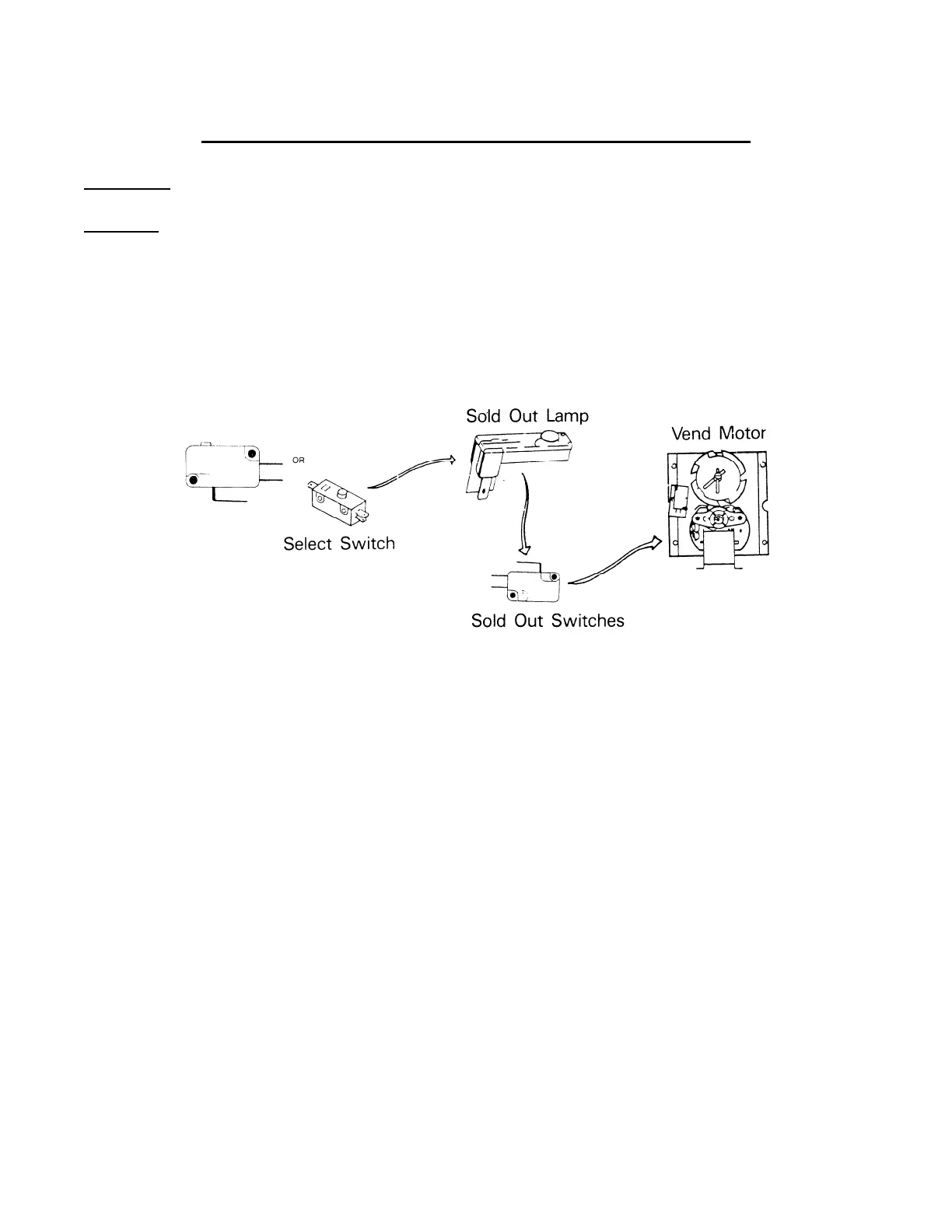

Problem 1: Accepts coins but will not vend from one column.
Example: Selection #3 will not vend.
Check: The normally open of select switch #3.
Note: If the sold-out lamp comes on when the button is pushed, the select switch is O.K.
Check: The sold out switch in the vending circuit.
Check: The vend motor.
Note: If the vend motor runs by depressing the vend switch, the vend motor is O.K.
