dji A3 User Manual

A3/A3Pro
User Manual
12
©
2016 DJI. All Rights Reserved.

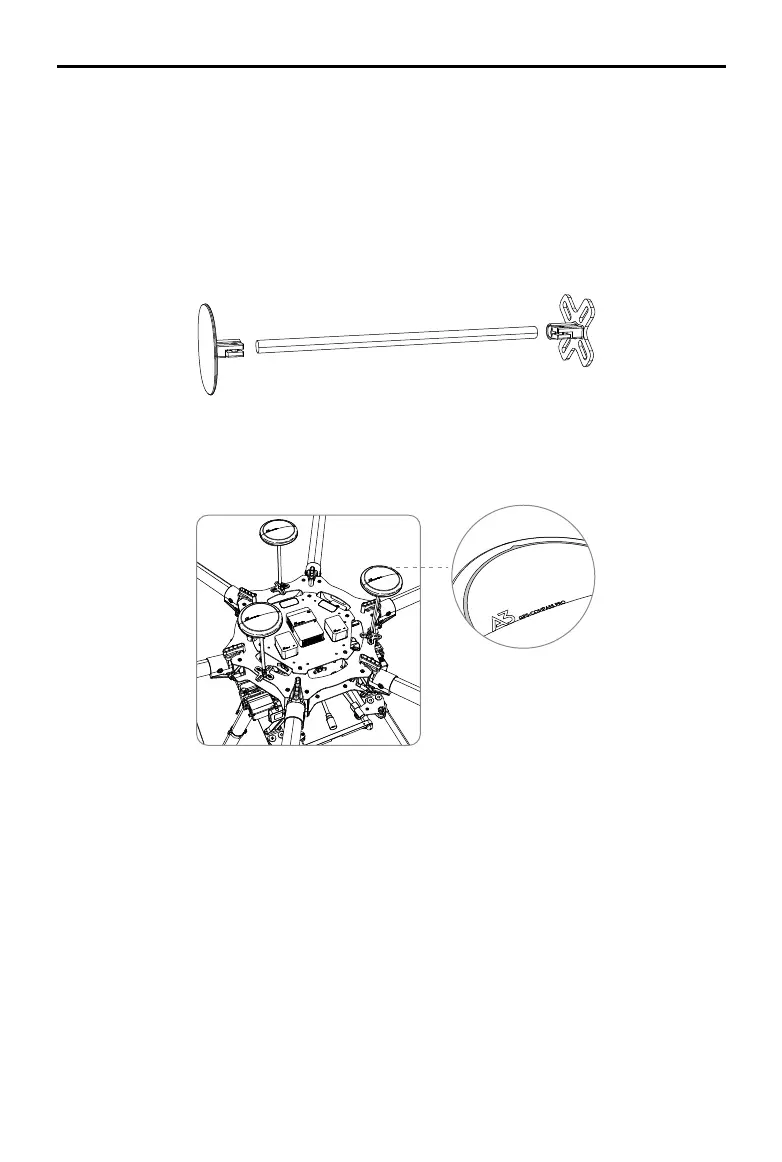

Mounting the GPS-Compass Pro Module
Follow the procedures below to mount the GPS bracket and the GPS-Compass Pro module.
The GPS-Compass Pro module included in the Upgrade kits is the same as the one in the A3
package.
1. Use the M2.0×4 screws to assemble the GPS bracket with the Ball End Hex Key assistant.
The longest one is recommended.
2. With the M2.5×7 screws and M2.5×3.4 nuts, mount the bracket on the aircraft.
Usage Requirements
1. The DJI logo should be facing the sky, with the orientation arrow pointing directly to the nose
direction; otherwise you may experience take o failure.
2
.
Fly the aircraft in an open space without buildings or trees; otherwise the GPS may be aected.
3. The compass is sensitive to magnetic interference. Always keep the compass module away
from magnetic elds. Otherwise, the compass module may become damaged and lead the
aircraft to work abnormally or even lose control.
Mounting the LED Module
Mount the LED module in a position to ensure it remains visible during flight. The LED bracket
included can be used to x the LED module onto the aircraft.
3. Ensure the GPS-Compass Pro arrow is pointing to the aircraft nose and then x it onto the top
of the GPS bracket. Try to keep it parallel to the aircraft.

dji A3 Specifications

Flight Performance

hovering accuracy (vertical)	±0.5 m
hovering accuracy (horizontal)	±2 m
max wind resistance	10 m/s
max yaw angular velocity	150°/s
max pitch angle	35°
max ascent velocity	6 m/s
max descent velocity	6 m/s

Power and Environment

power consumption	Max 21 W (Typical Value: 0.41 A @ 51 V)
operating temperature	14° to 113° F (-10° to 45° C)
