15

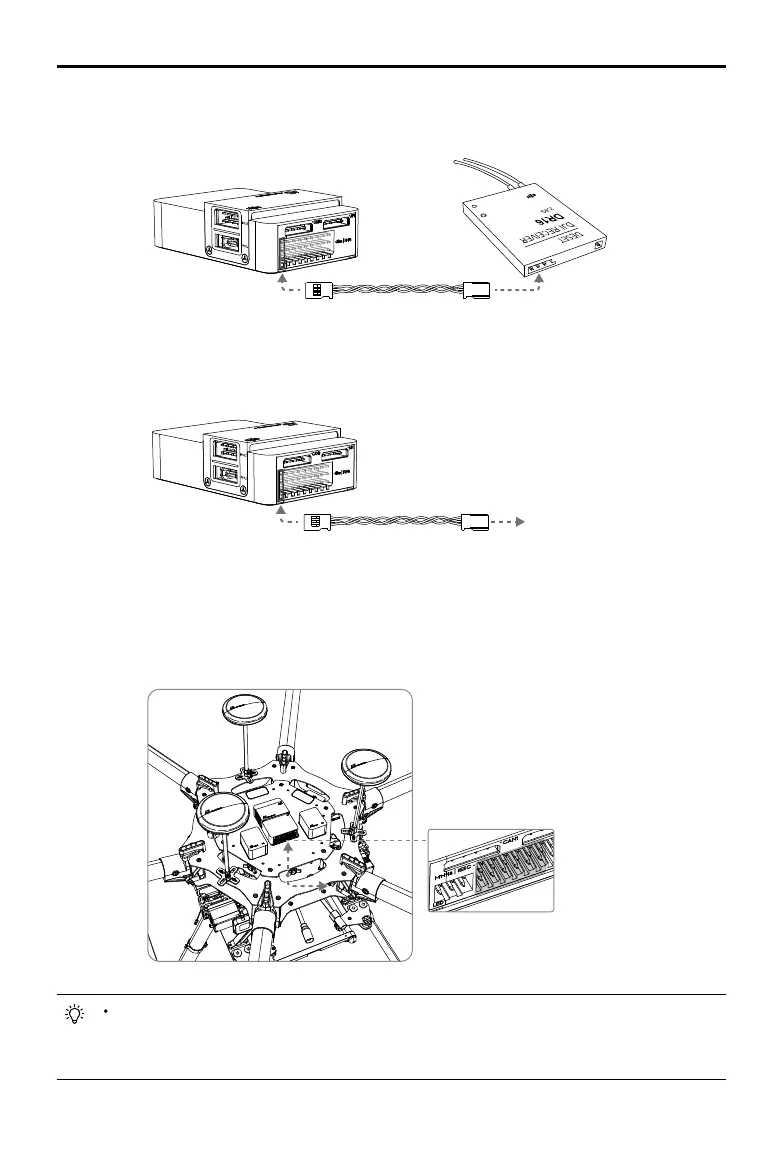

DR16 Receiver
Connect the DR16 receiver DBUS port to the Flight Controller S-Bus Port with a servo cable.
S-BUS Receiver
Connect the S-BUS receiver to the Flight Controller S-Bus Port with a servo cable.
Connecting to the ESCs
S900 Connection Diagram
Connect the M1-M6 ports on the bottom board of the S900 to the M1-M6 ports on the Flight
Controller in order.
S- Bus Receiver
Other Airframe Type Connection Diagram
Connect the ESC ports to the ESC ports on the Flight Controller. The diagram below
uses type V6 for example.
