Flight Controller System Connection

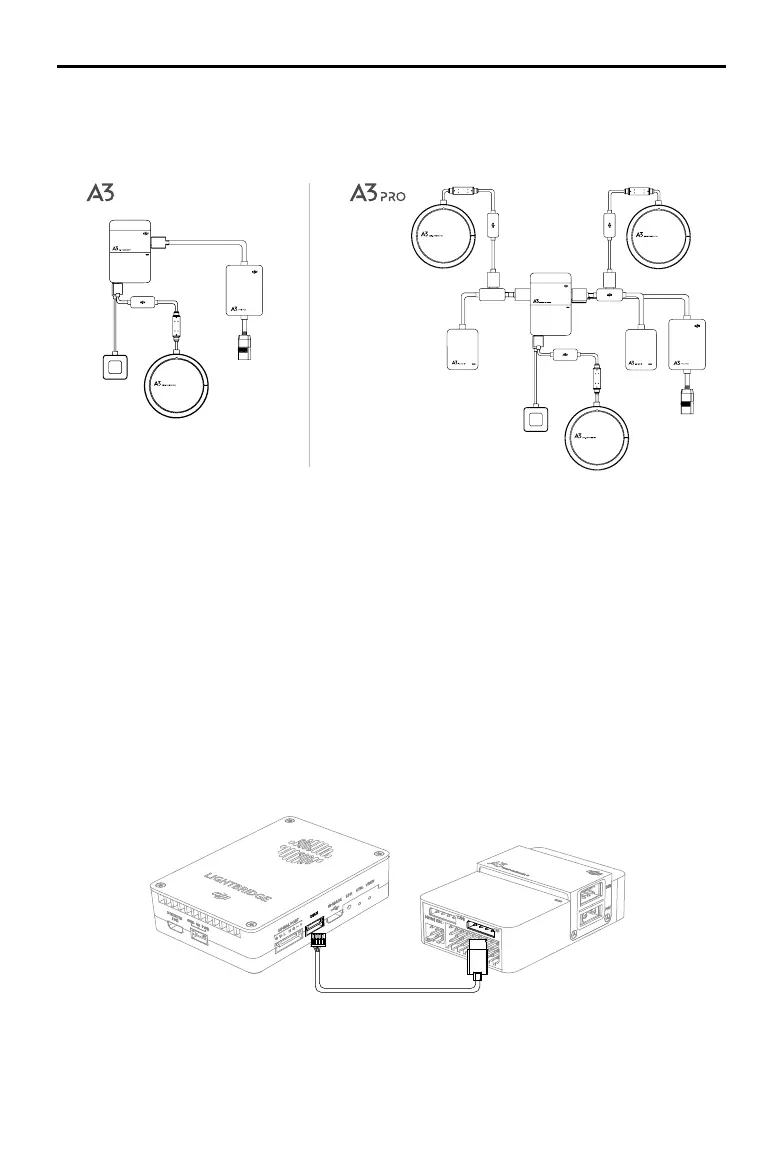

Follow the below diagram to connect the ight control system, and use the cable ties to tidy the
cables.
Connecting to the Airframe and its Equipment
Ensure you have a suitable airframe, remote controller system, ESCs and battery to use with the
A3 series. Strictly follow the provided guidelines. Failure to do so may lead to unexpected ight
behavior or serious accidents.
Connecting to a Receiver
Select the RF port or the S-Bus port for dierent types of receivers.
DJI Lightbridge 2
Connect the DJI Lightbridge 2 receiver DBUS port to the Flight Controller RF Port.
DBUS Cable
II
To Next Page
