dji LIGHTBRIDGE User Manual

©2014 DJI. All Rights Reserved. 25
Scenario 9 – DIY mode
DIY users should select either HDMI or AV based on camera video output and follow the below connection
procedures:
1. On AV cameras, connect AV port to AV output with AV cable. On HDMI cameras, connect HDMI IN
port to the HDMI out with HDMI cable.
2. Connect Gimbal Port to onboard battery and CAN-bus port on DJI flight control system (CAN1 port
for DJI A2 users) via the supplied air system power and CAN cable.
3. Connect DBUS to DBUS port (X2 ports) on flight control system with DBUS cable.
4. Refer to flight control system manuals to complete connection.

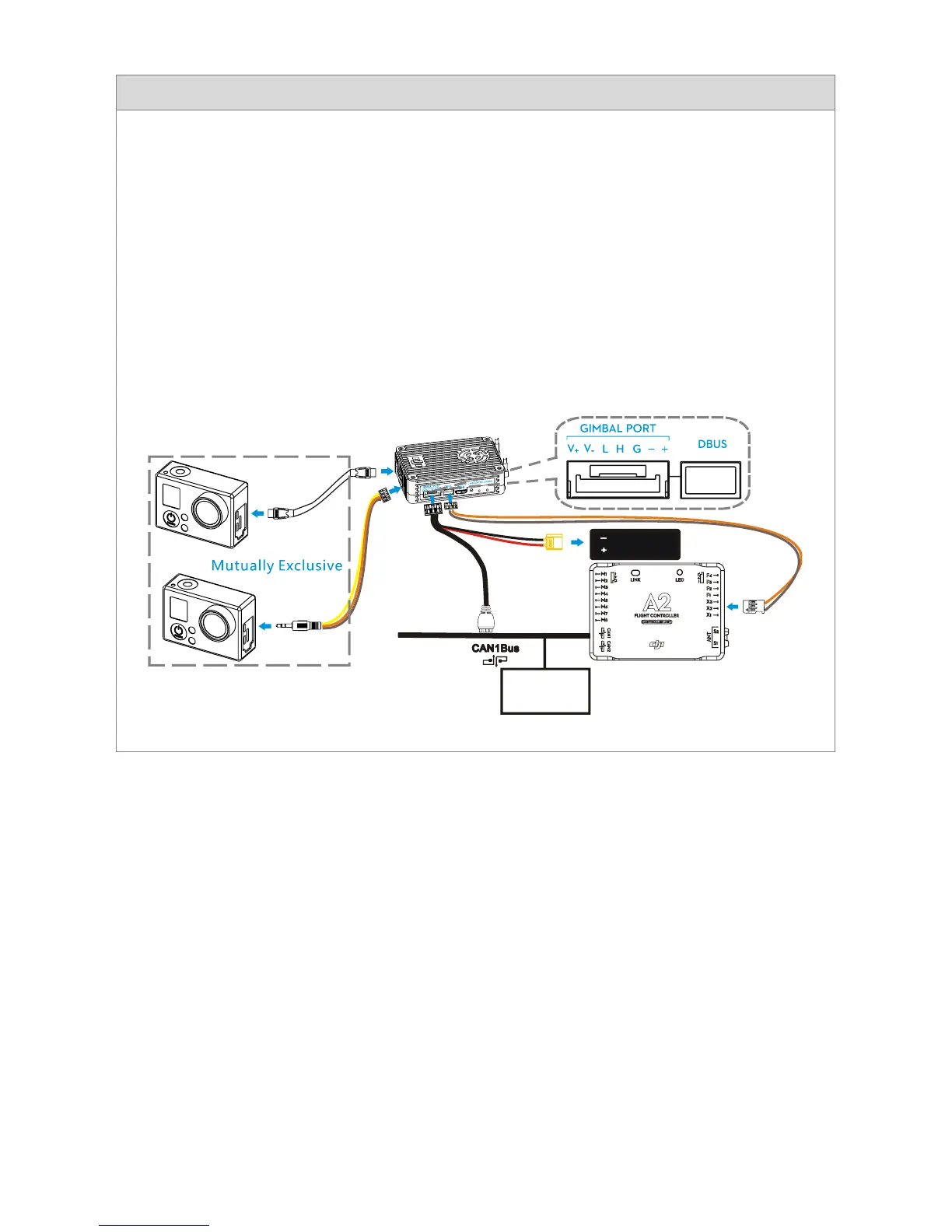

The below example is based on DJI A2.
(3S ~ 6S)
X2
AV
HDMI
Devices on
CAN1 Bus
HDMI

dji LIGHTBRIDGE Specifications

General

Maximum data transfer rate	- Mbit/s
Frequency band	2.4 GHz
Interface	HDMI, AV, USB 2.0
DC-in jack	Yes
Connectivity technology	Wired
Compatible operating systems	Android 4.1.2+
