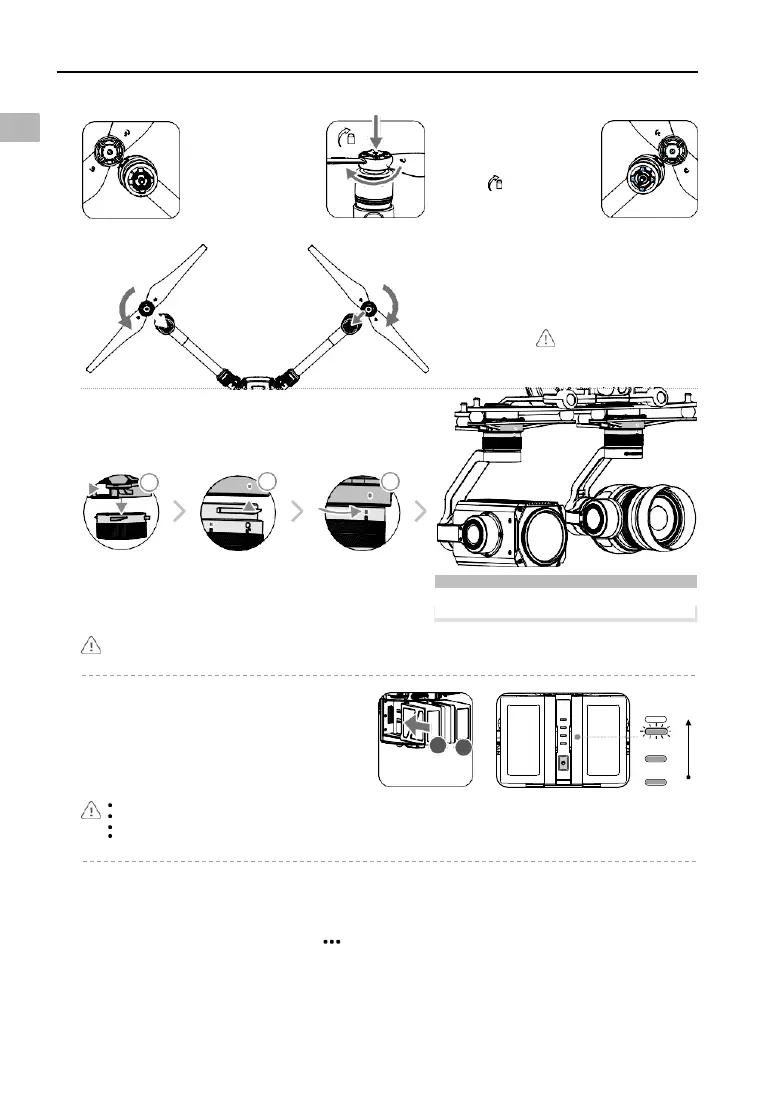

Mounting the Propellers
Propellers without
silver rings should be
installed on unmarked
motors.
Press the propeller
down onto the mounting
plate and rotate it in the
direction indicated by the
lock icon until secure.
Propellers with
silver rings should
be installed on
motors with the
same color marks.
Check that the propellers are secure
before each flight.
Mounting the Gimbal and Camera
Press the Gimbal
Detachment button
to remove the cover.
Align the white and
red dots and insert
the gimbal.
Rotate the gimbal
lock to the locked
position.
Gimbal Connector II Gimbal Connector I
Zenmuse XT ZenmuseX4S/X5S/X7/XT2/Z30
Zenmuse Z30 Zenmuse X4S/X5S/X7/XT/XT2
Make sure to press down the gimbal detachment button when rotating the gimbal lock to remove the gimbal and camera. The gimbal lock should be fully rotated when
removing the gimbal for the next installation.
Mounting the Intelligent Flight Batteries
Insert a pair of batteries.
Press once to check the battery level.
Press again and hold until the batteries turn on or off.
High
Only use battery slot B when using one battery to supply power. In this case, the aircraft can only be powered on, but cannot take off. If
for any reason only one battery is available during flight, land the aircraft immediately and replace the batteries as soon as possible.
Make sure to press the Battery Removal button when removing the battery.
Make sure to use the included TB55 batteries. TB50 batteries are not recommended as they may reduce the flight performance.
Low
Configuring the RTK Module (for M210 RTK V2 only)
The M210 RTK V2 aircraft includes D-RTK antennas. Highly accurate positioning data can be obtained when using the M210
RTK V2 with the DJI D-RTK 2 High-Precision GNSS Mobile Station for Matrice or Network RTK service.
1. In the Camera View in the DJI Pilot app, tap on the upper right corner, and then tap RTK. Enable aircraft RTK and
select a service type in settings.
2. If D-RTK 2 is selected, refer to the D-RTK 2 Mobile Station for Matrice user guide for information on configuration.
Contact a DJI authorized dealer for details on the use of Network RTK.
