MATRICE 200 Series User Manual

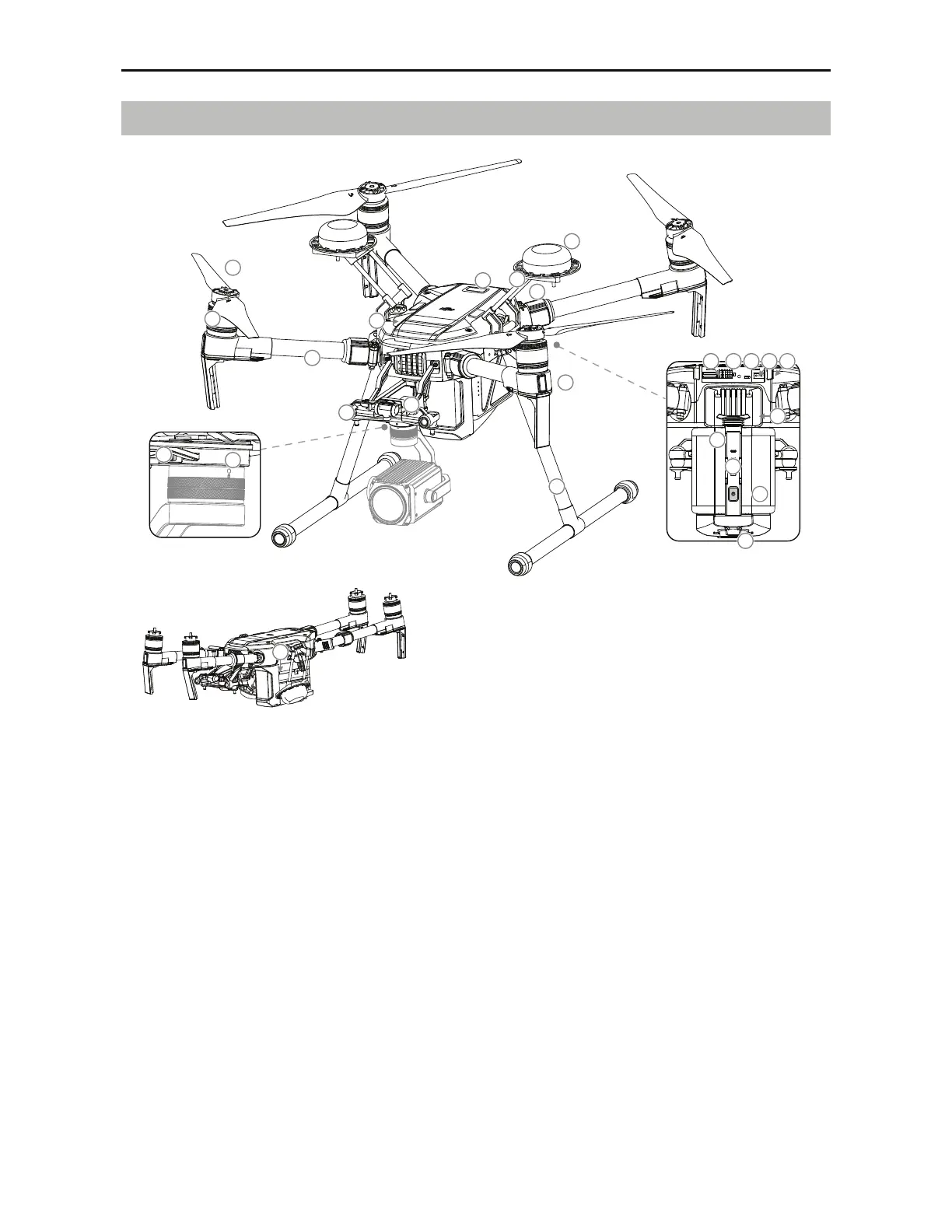

Aircraft Diagram
7
6
3
4
5
10
2
1
9
14
11
12
13
8
15 16 17
21
22
23
24
18 19
20
25
Folded
1. FPV Camera
2. Forward Vision System
3. DJI Gimbal Connector v2.0 (DGC2.0)
4. Gimbal Detachment Button
5. Frame Arms
6. Motors
7. Propellers
8. ESC LEDs
9. Landing Gears
10. Upward Gimbal Mounting Position
11. Upward Infrared Sensor
12. Aircraft Status Indicator
13. D-RTK Mounting Bracket
14. D-RTK Antennas**
15. USB Port
16. Expansion Ports
17. RC/Aircraft Linking
Button and Indicator
18. USB Mode Switch
19. Extended Power Port (XT30)
20. Battery Removal Button
21. Intelligent Flight Batteries
22. Battery Level Indicators
23. Power Button
24. Downward Vision System
25. Micro SD Card Slot
