MATRICE 200
Series User Manual
1
3
4
5
2
1/4"or3/8"

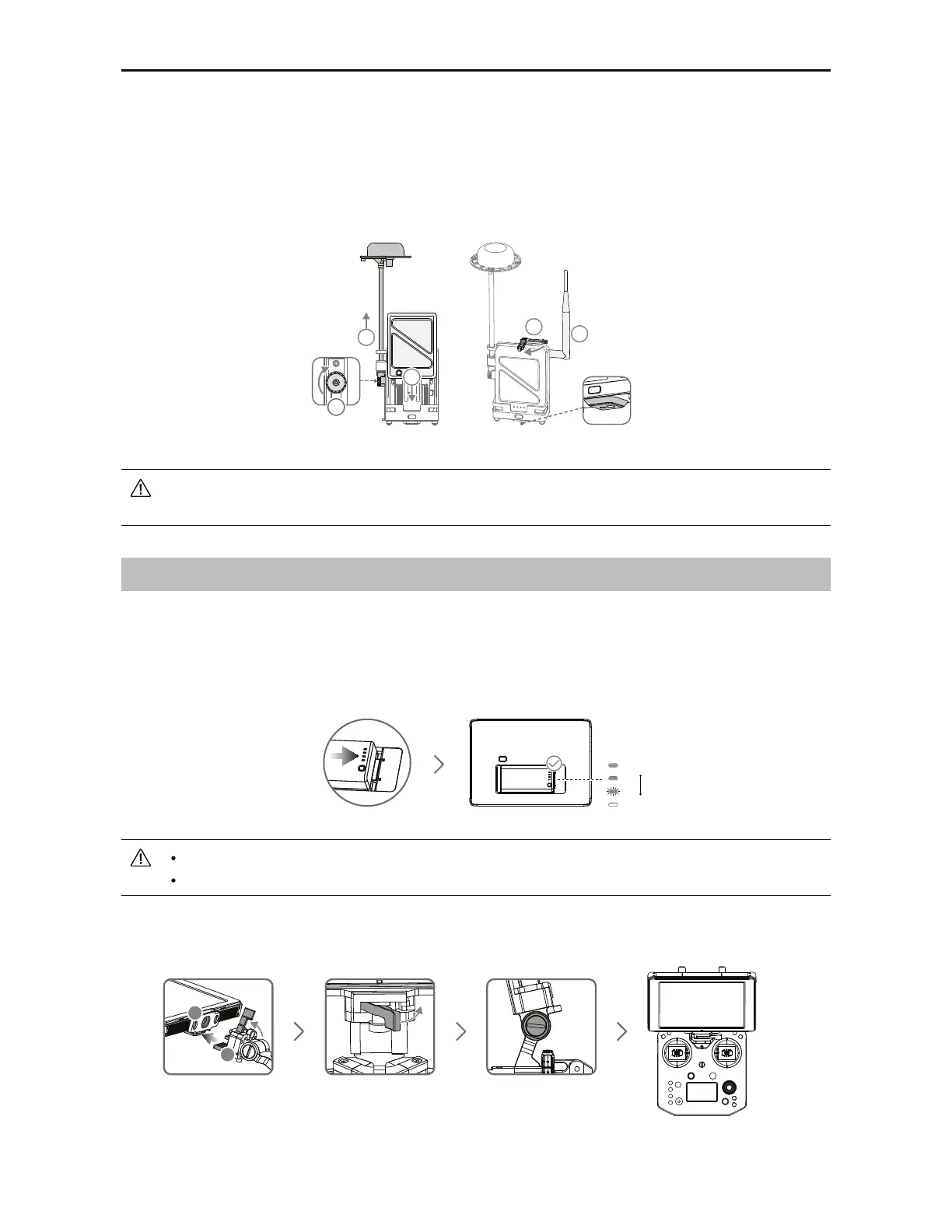

Mounting the D-RTK Ground System
For the M200 series, only mount the D-RTK Ground System to the M210 RTK.
1. Rotate the screws to secure the antenna bracket, and install the battery.
2. Rotate the clamp to secure the battery, and install the Datalink Pro antenna.
3. Install the D-RTK Ground System onto an appropriate tripod.
This manual uses the Datalink Pro 900 as an example. Please refer to the D-RTK and
Datalink Pro user guides for more details.
Preparing the Remote Controller
Mounting Monitor and Remote Controller Batteries
CrystalSky monitors and the Cendence remote controller use the same batteries.
Press the Battery Release Button before removing the battery.
Press the Battery Level Button once to check the battery level.
Lock the Mounting
Bracket.
Use a coin to adjust the
tightness of the tilt axis.
#
"
Ensure that Part B is
unlocked. Connect Part
B to Part A.
Low
High
To Next Page
