FLYSAFE-M350
09/20/2023
INSTRUCTIONS FOR USE
FACILITY
Insert the safety pin! (as below)
ÿ
Remove the tape.
In order to position the parachutes on the drone you must:
Before setting up the “parachute” containers, please place the
two pyrotechnic charges on each side of the drone in the locations
provided (landing gear base, red connector). Place the load
correctly thanks to the two side lugs.
Place adhesive tape on each side
Unscrew the two landing gear supports
of the push piece under the butterfly to hold it during
disassembly.

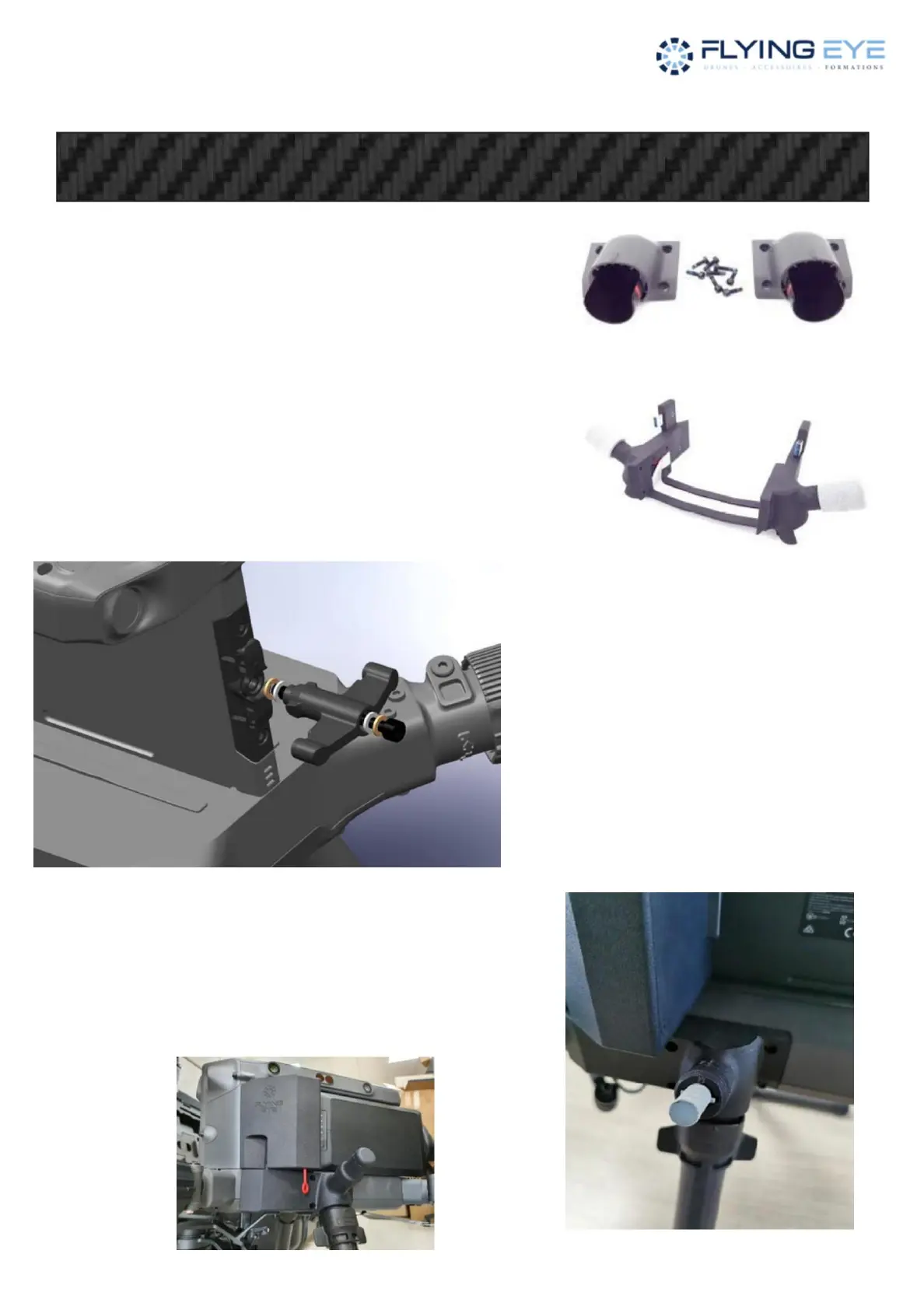

Position the cradle in place under the drone cradle. Secure it using the 4 screws on each
side (USB connector towards the front)
Unscrew the central screw of the butterfly:
BE CAREFUL of the washers, remove the screw and
the butterfly.
Replace the screw in the new butterfly, the
washers then screw.
Installation of the parachute cradle:
Installation of pyrotechnic charges:
Installation of the battery butterfly:
In order to be able to lock the batteries with
the presence of circuit breakers, it is
necessary to change the battery locking butterfly.
