dji N3 User Manual

N3
User Manual
6
©
2016 DJI All Rights Reserved.
1. iBAT
Reserved.
2. Power Status Indicator
Indicates the power status of the flight
control system.
3. 3S-12S
Derives power from LiPo battery.
4. Power Port (9V 2A)
Connected to the Flight Controller for power supply.
5. CAN1 Port
Connected to the GNSS-Compass module.

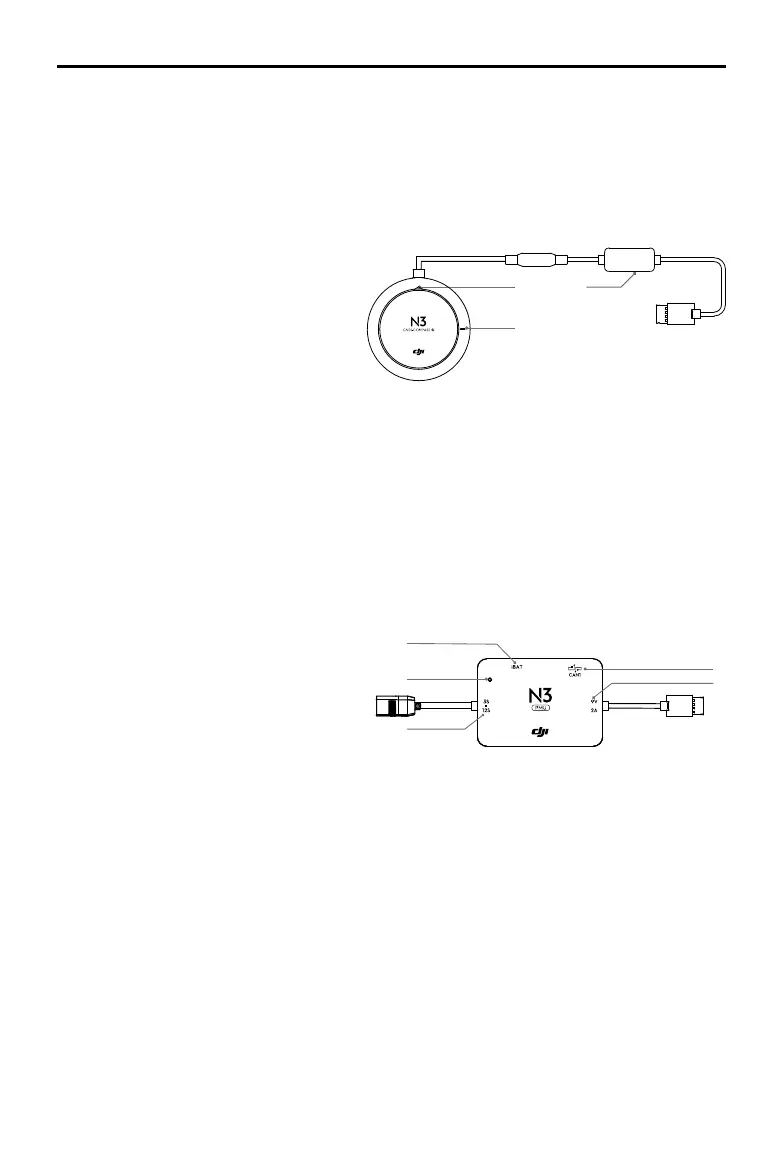

GNSS-Compass Module
The GNSS-Compass module has a built-in GPS/GLONASS and compass. The compass is used
for geomagnetic eld measurements. Compass calibration is required before use. DO NOT use or
store the compass in environments with ferromagnetic materials.
1. Orientation Arrow
The GNSS-Compass module should
be mounted with the arrow pointing
toward the aircraft nose.
2. GNSS-Compass Status Indicator
Indicates the status of the GNSS-
Compass Module.
3. Extended CAN1 Port
Dedicated DJI CAN-Bus port. Communicates with a DJI device.
1
2
3
2
3
4
1
5
PMU Module
Supported the LiPo batteries. with built-in PMU providing power for the whole Flight
Control System and low voltage protection function.

dji N3 Specifications

General

Product type	Control unit
Product color	Black
Brand compatibility	DJI

Weight and Dimensions

Weight	132 g
