dji OSD User Manual

©2012 DJI Innovations. All Rights Reserved. 6

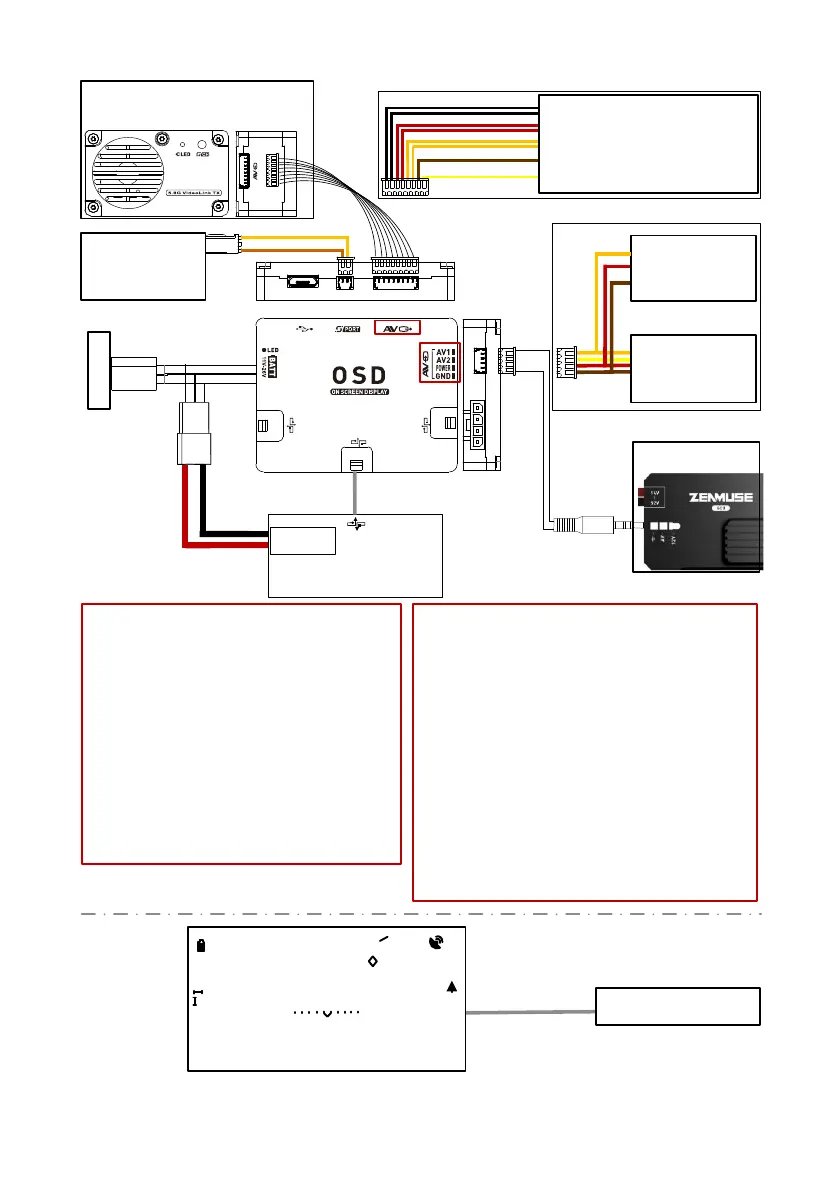

Display Screen
WKM
Autopilot System
B
A
T
T
Wireless Video RX
PMU
12.0
V
1m
ATT
FS
0
0.0
D
H
P 0
o
R 0
o
CH AV1
m
0.0
s
AV Input 1
Power
Ground
AV Input 2
Power
Ground
Video Output Port
· If you use wireless video transmission module
specified by DJI, connect through the bi-port
cable as shown.
· If you use your own module, please connect
through the one-port cable according the pin
description.
· Channel Control：Control signal for The video
transmitter channel number (CH1…..CH8).If
your video transmitter does not support this
feature, then ignore this pin.
Video and OSD output: make sure this is
correctly connected.
Video Input Port
· If you use the DJI Z15, please connect the OSD to
the GCU of the Z15 through a bi-port cable as
shown.
· If you use your own camera(s), please connect
through the one-port cable according the pin
description. AV1、AV2：You can select the
required input. AV1 is default. POWER： supply
power for video input source such as a camera.
If battery is 3S Lipo then: Output Voltage = Input
Votage
If 4S~6S then: Output Voltage=11.2V
Make sure the video input source is rated for this
voltage, if not, and then please use a separate battery
supply
Aircraft End
Ground End
R/C Receiver
3-position switch
Camera1
Camera2
DJI Z15 GCU
Wireless Video Transmission
Module Specified by DJI
Wireless
Video TX
＝Negative voltage of battery
＝Positive voltage of battery
Channel Control
Video Ground
Video and OSD output
