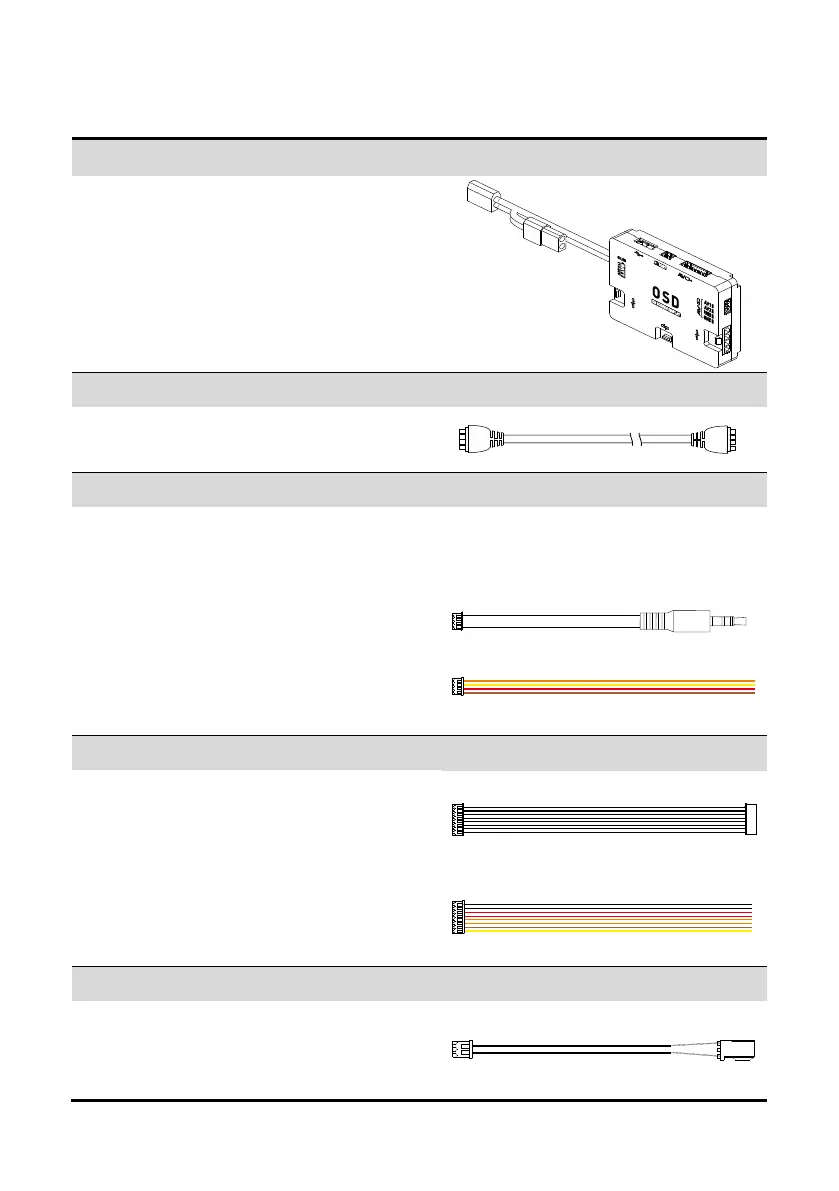

OSD Controller ×1

Connect the OSD controller to your DJI autopilot

system via CAN-Bus. It communicates with the main

controller, receives data from the main controller,

superimposes the data with the video image, and

then transmits the whole information via a

transmitter.

CAN-Bus Cable ×1

Connect the OSD to your autopilot system through a

CAN-Bus cable.

DJI

Video Input Cable ×1

Connect the OSD with video input source (i.e.

camera or DJI Z15) for video input and power

supply.

Only when you use the DJI Z15, you can use the

bi-port cable directly for the connection. Otherwise,

you can use the one-port cable for your own

connection in accordance with the wiring diagram.

Video Output Cable ×1

Only when you use the wireless video transmitter

module specified by DJI, you can use the bi-port

cable to connect the OSD with the video transmitter

module. Otherwise, you can use the one-port cable

for your own connection in accordance with the

wiring diagram.

2-PIN to 3-PIN Cable ×1

Connect the OSD with the R/C receiver through this

cable. When there are two video signal inputs, it is

used for the selection of video signal sources.
