ROBOMASTER EP Core User Manual

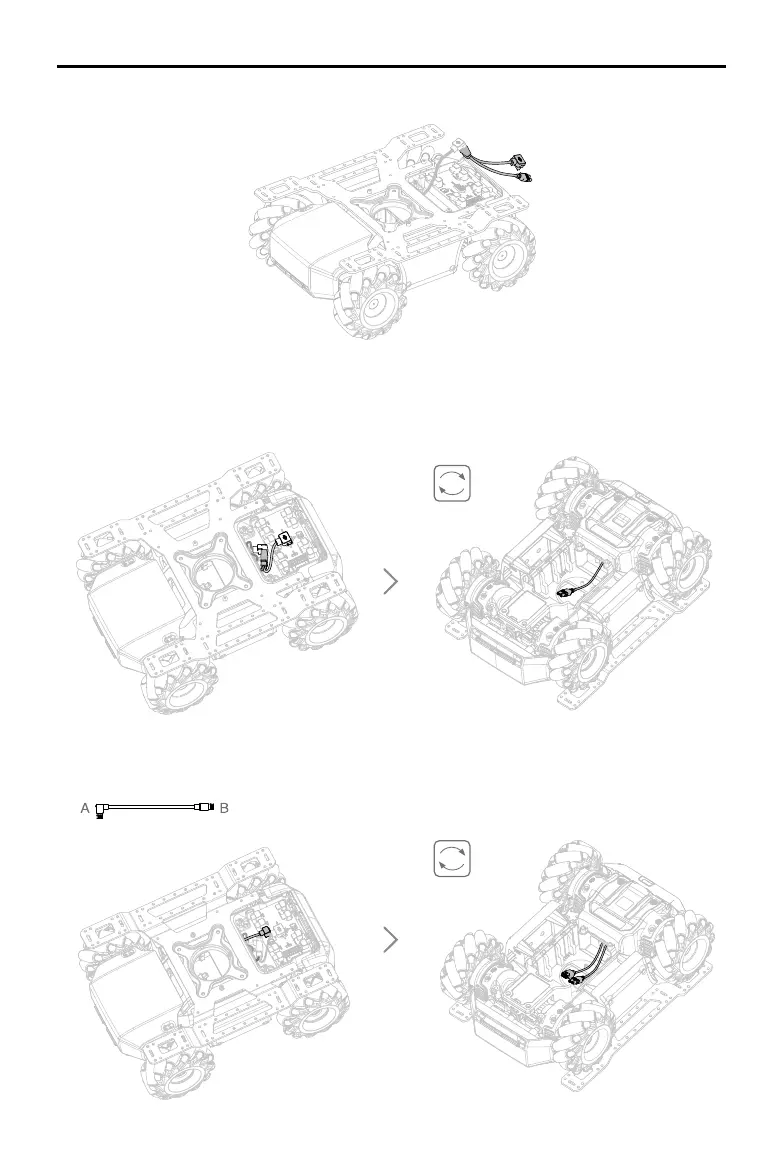

2. Connect the power cable and a Y-cable.
3. After connecting a Y-cable to the motion controller as shown below, place the power cable on
the chassis and pull the XT30 power cable of a Y-cable through the chassis middle frame to the
chassis cabin.
4. As shown below, connect the A end of a 12cm data cable to the motion controller and pull the B
end through the chassis middle frame to the chassis cabin.
12 cm
