dji RONIN 4D Quick Start Guide

EN
©
2021 DJI OSMO All Rights Reserved.
3
DJI Ronin 4D Quick Start Guide
B. Balancing

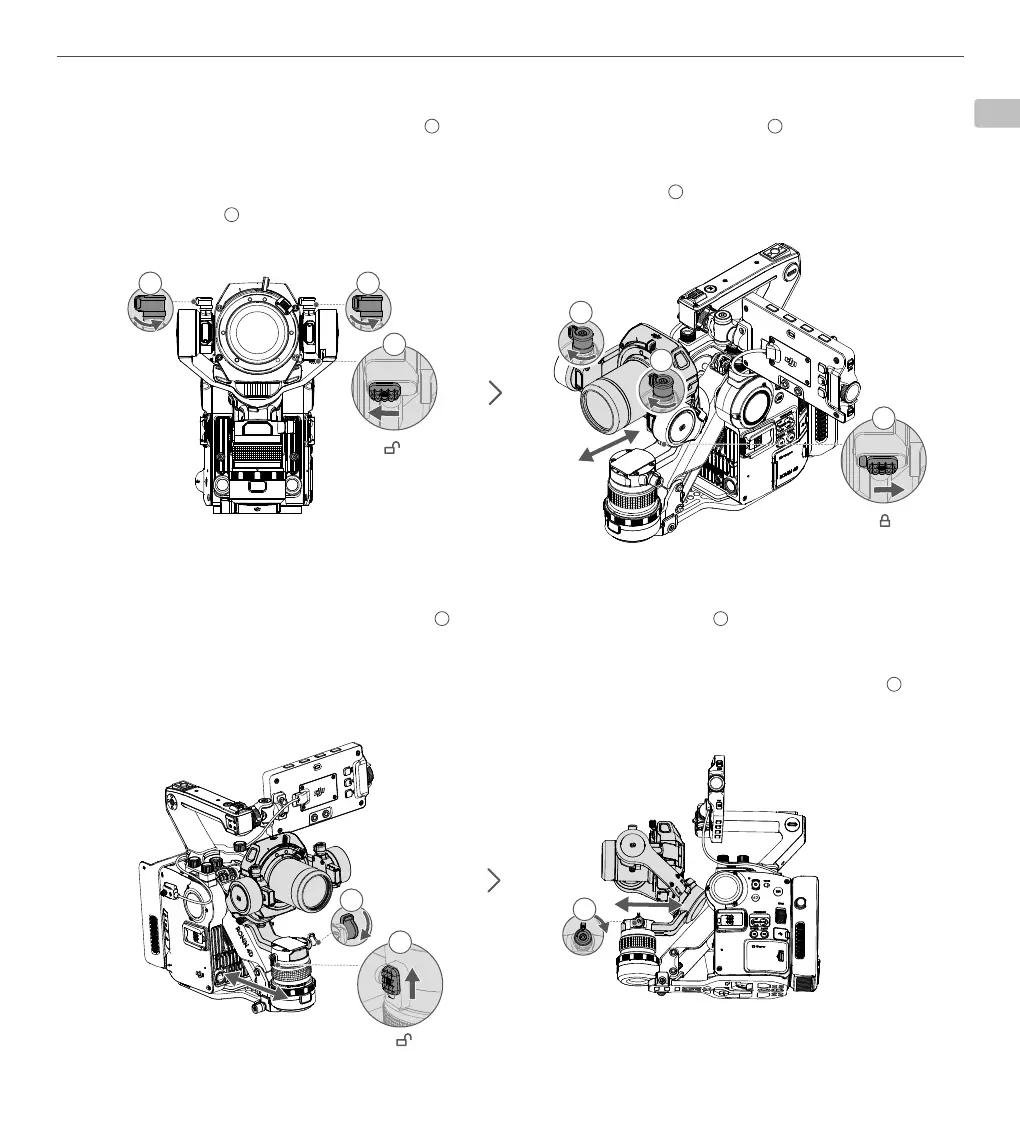

1. Balancing the Tilt Axis
a. Toggle the tilt axis lock to the unlocked position
1
and loosen the knobs on both sides of the tilt axis
2
.
b. Check to make sure the camera is not front or back-heavy. If front-heavy, move the camera backward. If back-heavy, move the
camera forward.
c. The tilt axis is balanced if the camera is steady while tilted forward. Tighten the knobs
3
.
d. Lock the tilt axis
4
.
2. Balancing the Pan Axis
a. Toggle the pan axis lock to the unlocked position
1
and loosen the knobs on the pan motor
2
.
b. Tilt Ronin 4D towards you while holding the top handle. Check the movement of the pan axis. If the camera lens rotates to the left,
push the pan axis to the right. If the camera lens rotates to the right, push the pan axis to the left.
c. The pan axis is balanced if the camera is steady when the pan axis is rotated by tilting the top handle. Tighten the knob
3
.
1
2 2
4
3
3
1
3
2

dji RONIN 4D Specifications

General

Camera Sensor	Full-Frame CMOS
Dynamic Range	14+ stops
Battery	TB50 Intelligent Battery
Sensor Size	36 x 24 mm
Video Resolution	6K (4096 x 2160)
Lens Mount	DL mount, with E-mount compatibility via adapter
Stabilization	4-axis stabilization
Recording Formats	Apple ProRes 422 HQ, H.264
Frame Rates	Up to 6K/60fps, 4K/120fps
Storage	CFexpress Type-B
Audio Input	3.5mm
Display	5.5-inch touchscreen
Battery Life	Approx. 2.5 hours
Internal ND Filters	Built-in ND filters (ND 2 to ND 512)
Weight	Approx. 4.67 kg (without lens)
