required to launch the Ronin app. Once detected in the list of Bluetooth devices, select DJI RSC 2

and input the default Bluetooth password: 12345678. Make sure you are connected to the internet

and follow the on-screen instructions to activate DJI RSC 2.

Mounting the Camera

Make sure to prepare the camera before mounting it to DJI RSC 2. Remove the lens cap and check

that the battery and memory card are inserted in the camera. Make sure DJI RSC 2 is powered off

or in sleep mode before mounting the camera.

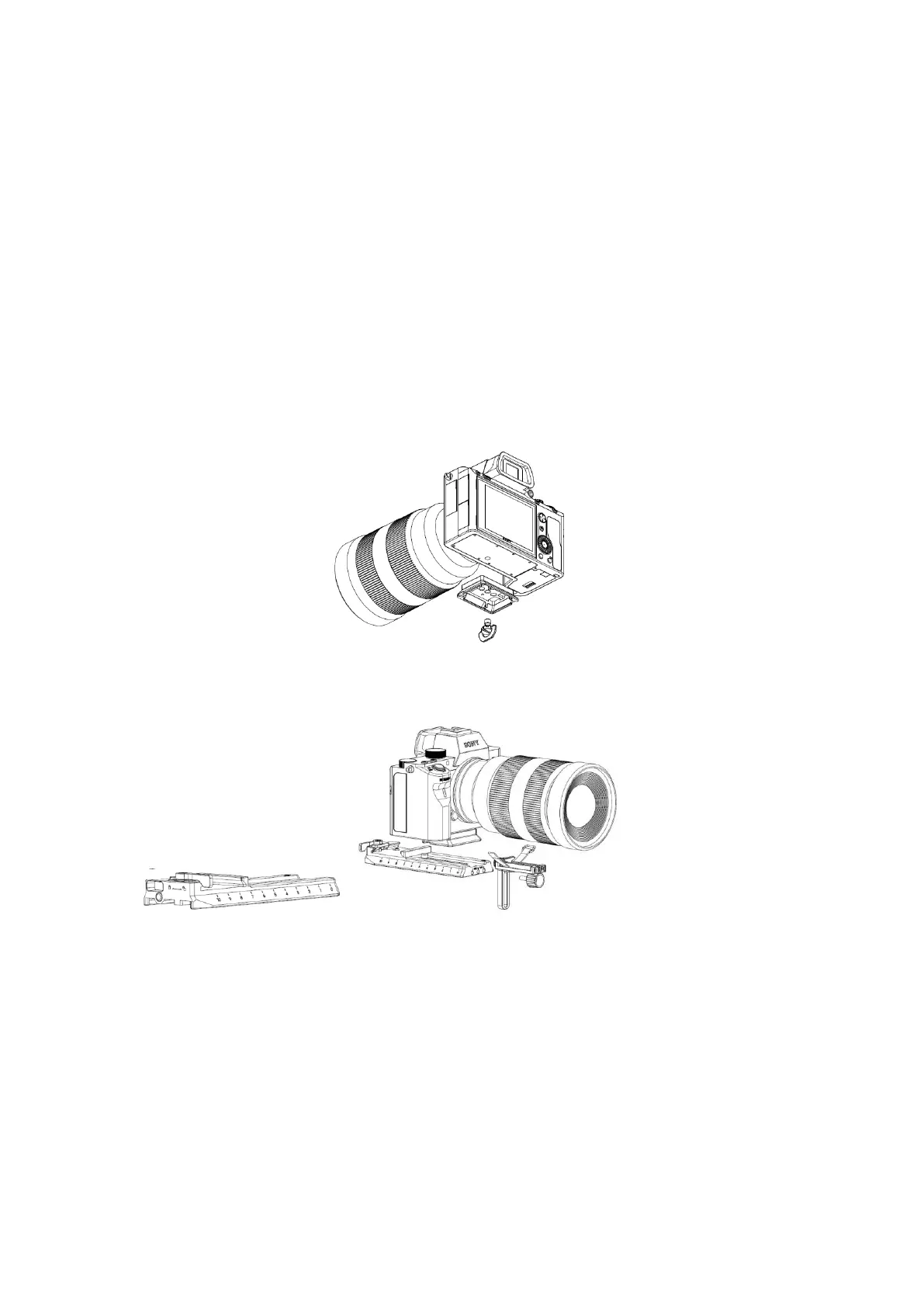

1. Attach the Upper Quick-Release Plate

The camera lens and the arrow on the bottom of the upper quick-release plate must face the same

direction. Attach the upper quick-release plate to the camera by tightening the screw.

2. Attach the Lower Quick-Release Plate and Lens-Fastening Strap

3. Attach the Camera to the Gimbal

Other manuals for dji RSC 2

Questions and Answers:

Need help?

Do you have a question about the dji RSC 2 and is the answer not in the manual?

General

Type	Hand camera stabilizer
Foldable	Yes
Material	-
Mounting	1/4\
Applicability	Universal
Product color	Black
Number of axis	3
Tilt angle range	0 - 360 °
Angle of rotation	360 °
Compatible products	Sony: A9/A9 Ⅱ, A7M III/A7S III/A7R IV/A7R III/A7R II/A7S II/A7M II, A7S, A6300/A6100/A6400, A6600/A6500; Panasonic: GH5S/G9, GH5, GH4/GH3, S1, S1H; Nikon: Z6/Z7, Z50, D850, D780, D6/D5; Canon: EOS R5/EOS R6, EOS RP, 5D MK III/5D MK IV/5DS R, 6D MK II/90D, 80D/6D, EOS-1DX Mark II/EOS-1DX Mark III, EOS 77D; FUJIFILM: X-T3/X-T2, X-T4, X-H1, X-T30/X-T20/X-E3; Black magic design: BMPCC 4K, BMPCC 6K; Z CAM: Z CAM E2; Olympus: OM-D E-M1 II;
Maximum weight capacity	3 kg
Bluetooth version	5.0
Battery type	18650
Charging time	2 h
Operating time	14 h
Battery voltage	7.2 V
Battery capacity	3400 mAh
Operating temperature (T-T)	-20 - 45 °C
Cables included	USB
Package depth	275 mm
Package width	330 mm
Package height	103 mm
Package weight	1950 g
