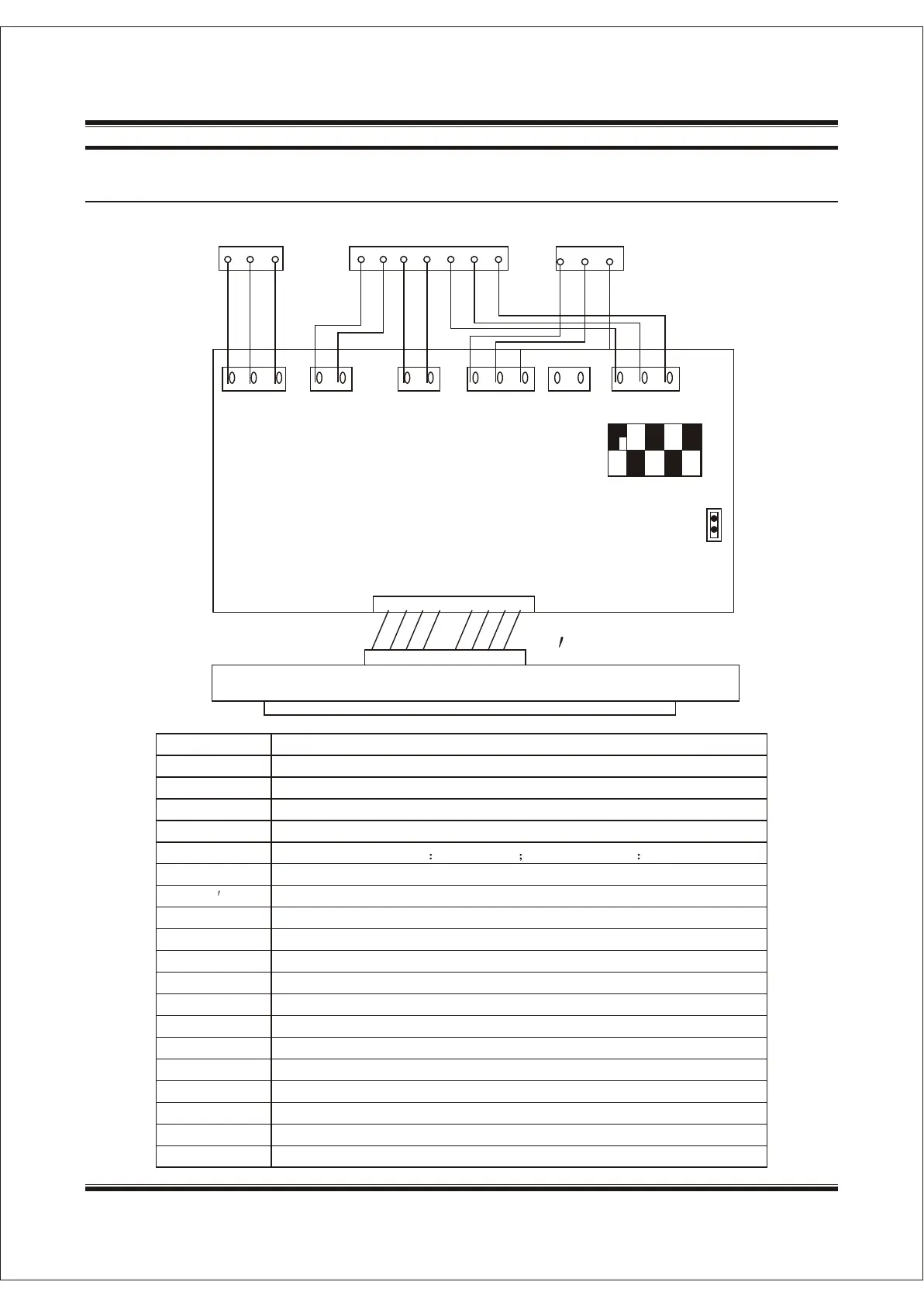

3.1.6 Control Box Inter-configuration Diagram
JP1 JP1 JP2 JP2 JP3JP3
W1 W1 W2 W2 W3W3
Red Red YellowYellow
YellowYellow
Red & Green Red & Green
Red Red Red Brown Red Brown
BlueBlue
BlackBlack
WhiteWhite
Brown Black Blue Brown Black Blue
J1 J1 J6 J6 J3 J3 J8 J8 J7 J7 J11 J11
DK1100ADK1100A
SW1
J5 J5
J4 J4
W4 W4
J5 J5
LED BoardLED Board
ITEM NO .
DK1100A
LED BOARD
J1
J3
J4
J5
J5
J6
J7
J8
J11
W1
W2
W3
W4
JP1
JP2
JP3
SW1
Description
Main Control PCB
LED Display & Keypad
3pins, input plug-in for AC100~220V supply
2-pin output plug-in for 24V DC magnetic iron
Wire jumper shorted Auto-track Disconnection Fixed delay
16pins, output plug-in for LED Display & Keypad
16pins, input plug-in for LED Display & Keypad
2pins, AC power wire for heating tube
Unplugged
3pins, input plug-in for print signal
3pins, input plug-in for thermocouple
3pins, input plug-in for AC power wire
7-pin drive cable
3-pin signal input cable
16pin display data cable
3-pin AC power plug
7-pin air plug for the drive of head
3pins, input plug-in for external signal
Switch for the selection of external signals
SHANGHAI DIKAI SEPARATE MACHINERY CO., LTD.SHANGHAI DIKAI SEPARATE MACHINERY CO., LTD.3-153-15
