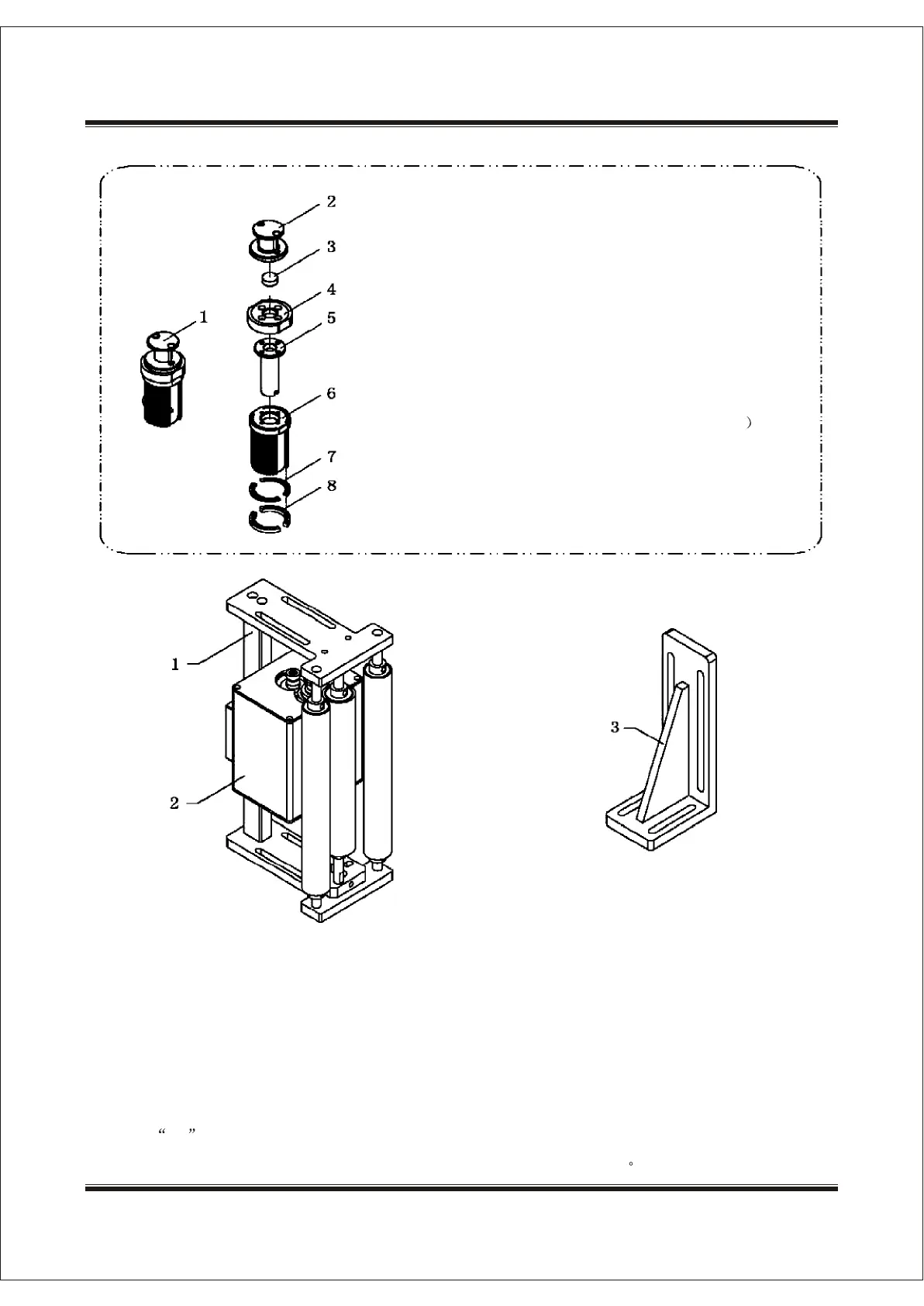

dk DK-1100A - Type Holder and Bracket Assembly Parts; Type Holder Assembly Components; Bracket and Print Head Components

DK-1100A Ink Roll Coder Operation Manual
Item No .
Quantity
Part No .
Description
1
2
3
4
5
6
7
8
1
1
1
1
1
1
1
1
1
2
4
2
4
C9912002E
C9912004S
C9900026bk
Y9904155
C9900002E
C9900004S
Y9901001
Y9901002E
Y9901002S
C9900026E
C9900026S
C9900027E
C9900027S
Type Wheel Assy (2-up)
Type Wheel Assy (4-up)
Type Arm
Magnet
Rubber Wheel (2-up)
Rubber Wheel (4-up)
Type Holder Sheath
Type Holder (2-up)
Type Hodler (4-up
Type Retainer Metal(2-up)
Type Retainer Metal(4-up)
Type Retainer Rubber (2-up)
Type Retainer Rubber (4-up)
Item No .
Quantity
Part No .
Description
1
2
3
1
1
1
1
1
1
C9912***
C9911000ZE
C9911000ZE
C9911000ZE
C9911000ZE
C9900004
Standard Bracket
Print Head (Natural 2 Group)
Print Head (Natural 4 Group)
Print Head (Reverse 2 Group)
Print Head (Reverse 4 Group )
L Mounting Bracket
Note: *** is the PN of standard bracket indicates the length, shall be filled in when doing order.
Take 350mm length bracket as an example, the PN is C9912350 Item 3 is optional part.
