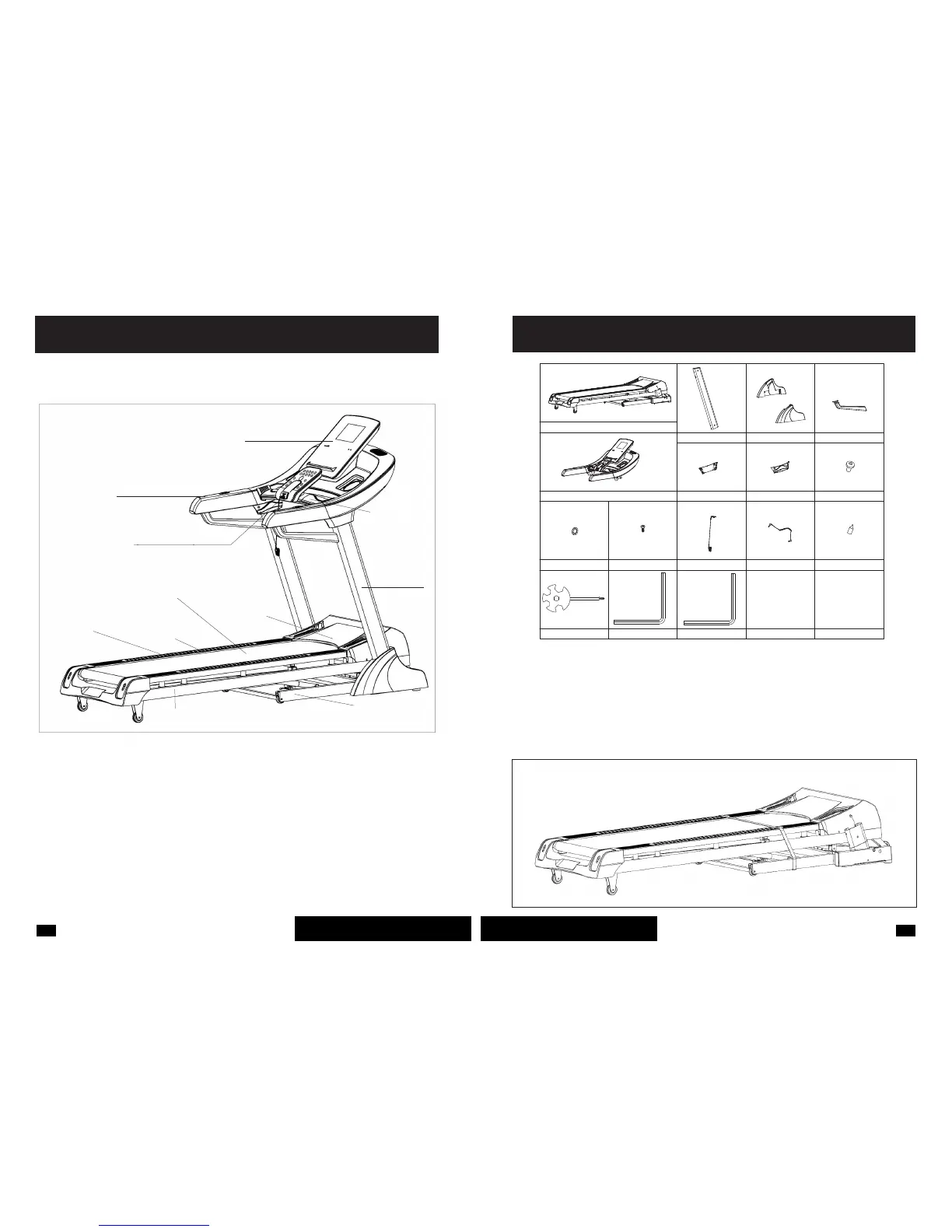

Assembly Instructions
STEP 1:
To begin assembling, unpack the box and prepare all the parts depicted above, checking to
make sure all are present. Place the main frame on a level at surface.
The main base is a heavy unit and it is recommended that you obtain the assistance of
another person when lifting it.
NOTE: Please do not cut the banding straps at this time.
#2 Main frame 1PC
#3 Upright tube 2PCS
#4 Console Frame 1PC
#8 Bottom Handlebar 2PCS#36L/R Front side cover 1PR
#34 Outside upright cover 2PCS #35 Inside upright cover 2PCS
#67 Hex socket screw M10*15
18PCS
#91 Lock washer Φ10*1.2 18PCS
#88 Cross tapping screw
ST4.0*12 10PCS
Cross wrench 1PC Allen wrench（S=6） 1PC Allen wrench（S=5） 1PC
#30 Safety key clip 1PC
#112 MP3 wire 1PC
Silicon oil 1PC
Product Overview
Console
Hand Pulse
Handrail
Upright
Safety Key
Motor Cover
Side Rail
Anti-slippery Pad
Running Belt
Side Rail Cover
Base Frame
