DLE DLE55 User Manual

ENGINE MOUNTING
During the break-in process the engine must be installed in an environment where vibraon can be ab-
sorbed i.e. in the model or with so mount if bench running. Hard mounng to a bench without adequate
vibraon damping may cause vibraon damage to internal parts and shorten the life of the engine. The
best way for break-in process is mount the engine in the model.
Always stand clear of and behind the propeller; never allow anyone including yourself, to be in front of or
to the sides of the propeller when starng or running the engine. Anyone near the engine should wear
protecve eyewear. NEVER WEAR LOOSE CLOTHING near the engine or propeller.
SPECIFICATIONS
• 5.5HP/8500rpm
• Idle Speed: 1500 rpm/min.
• Stac Thrust 14.5Kg / 100 meters Altude
• Stac Thrust 12.8Kg / 1800 meters Altude
• Recommended propeller: 22x8, 22x10, 23x8, 23x10
• Sparking plug：NGK CM6
• Displacement : 55cm3
• Piston Diameter × stroke: 45mm×35mm
• Compression Rao: 7.6:1
• Recommended Oil Rao : 30:1
• Weight: Main engine - 1330g Exhaust pipe - 140g Ignion equipment - 140g

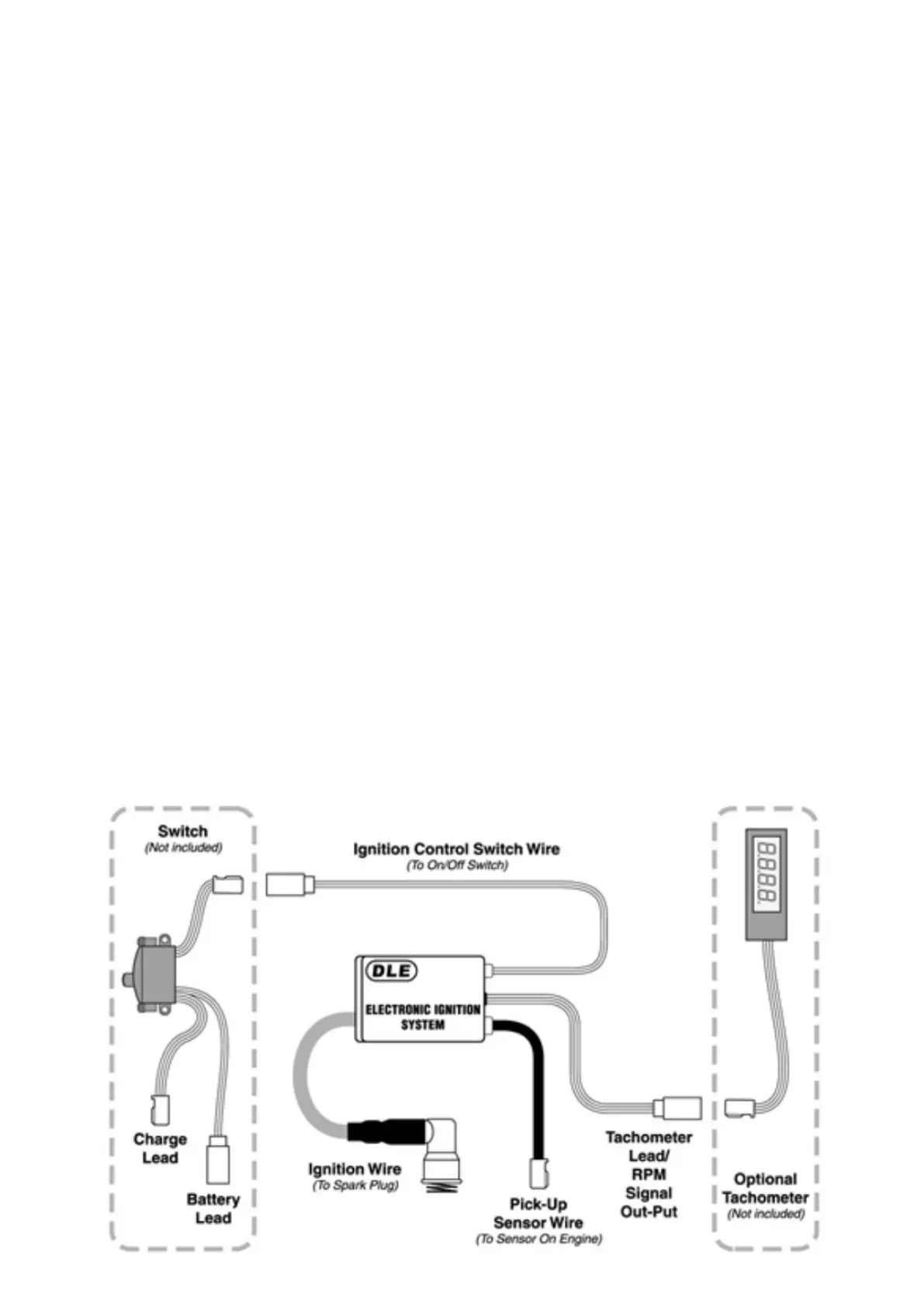

• Ignion voltage 4.8V-14V
