DLS SuperNaturalSound Reference 100 - MONO SUBWOOFER BRIDGE MODE

- 8 -
HP-filter LP-filter LP-filter LEVEL
IN
OUT
15 200
50
200
70 90
5,5V 0,3V
2,5V
25
FUSE PROTECT POWER
25 A x 2
25
POWER INPUT
GND RMT BATT
2,5V
15 200
70 90
50 200 5,5V 0,3V
OUT
HP-filter LP-filter LP-filter LEVEL
IN
SPEAKERS
+LEFT- +RIGHT-
+ BRIDGE -
SIGNAL INPUT
LEFT RIGHT
Fuse
40 A
Battery
12 volt
FM1 101,9
Button out
Remote
Pre
out

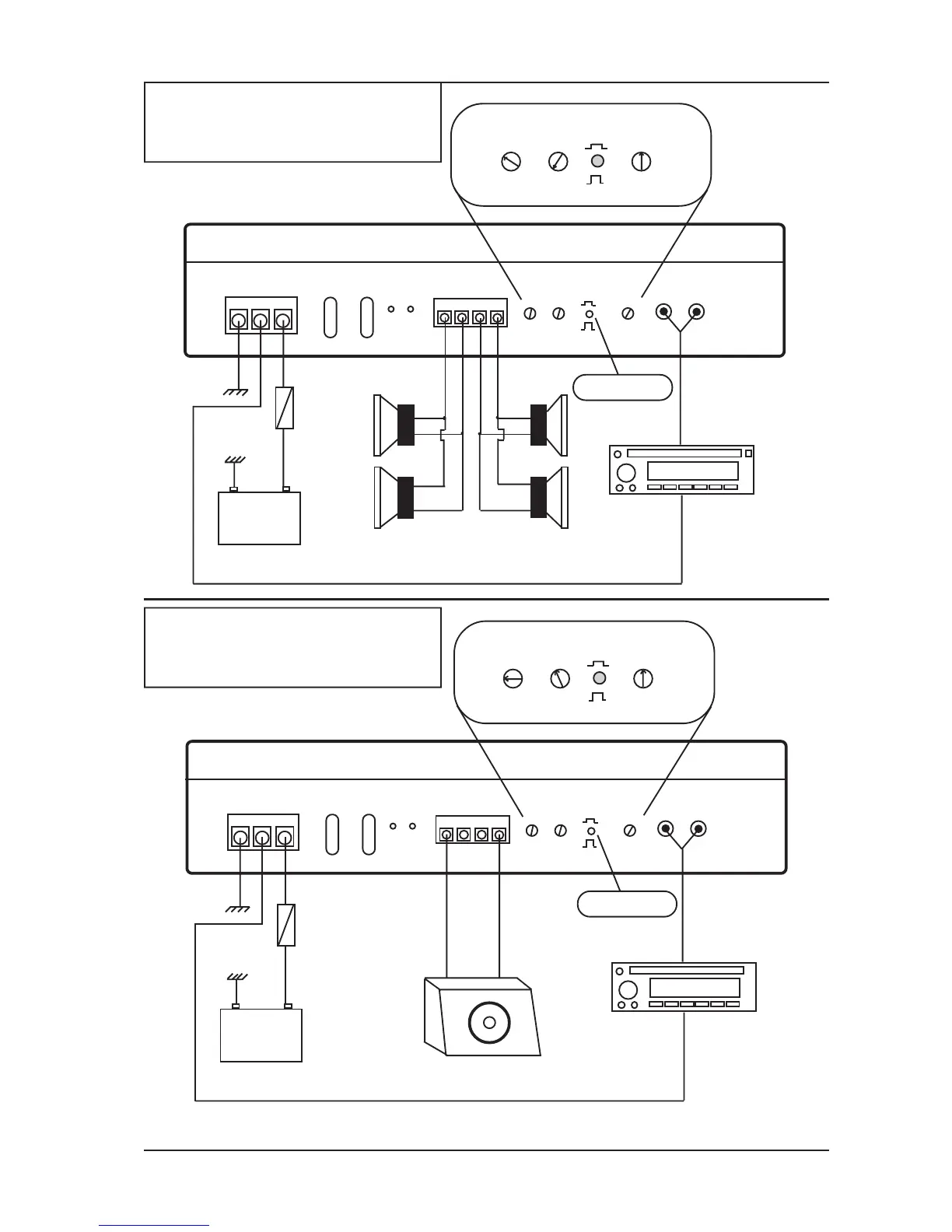

5.2 Two speaker pairs
connected in parallel stereo
You can use all DLS coaxial, 2-way or 3-way
systems in this example.
The speaker impedance must be 4 ohm.
5.3 Connection in mono with one
subwoofer in bridge mode.
You can use all DLS 4 ohm subwoofers in
this example.
Front
Rear
Button in
Remote
Pre
out
Subwoofer
4 ohm
HP-filter LP-filter LP-filter LEVEL
IN
OUT
15 200
50
200
70 90
5,5V 0,3V
2,5V
FM1 101,9
Fuse
40 A
25
FUSE PROTECT POWER
25 A x 2
25
POWER INPUT
GND RMT BATT
2,5V
15 200
70 90
50 200 5,5V 0,3V
OUT
HP-filter LP-filter LP-filter LEVEL
IN
SPEAKERS
+LEFT- +RIGHT-
+ BRIDGE -
SIGNAL INPUT
LEFT RIGHT
+
+-
+
+
+
+
-
-
-
-
CONNECTION DIAGRAMS Reference 100
Battery
12 volt
+
For power cable, speaker cable and fuse size selection we refer to section 2.2 - 2.4
