X-D30
For power wiring, see page 4
For High or low level input wiring, see page 5
10
With the HPF-filter in OFF
position the amplifier
allows the speakers to play
fullrange. If you for some
reason want to limit the low
bass reproduction switch
on the HPF-filter. The
typical setting is then aro-
und 60 – 80 Hz.
Filter settings Sub channel

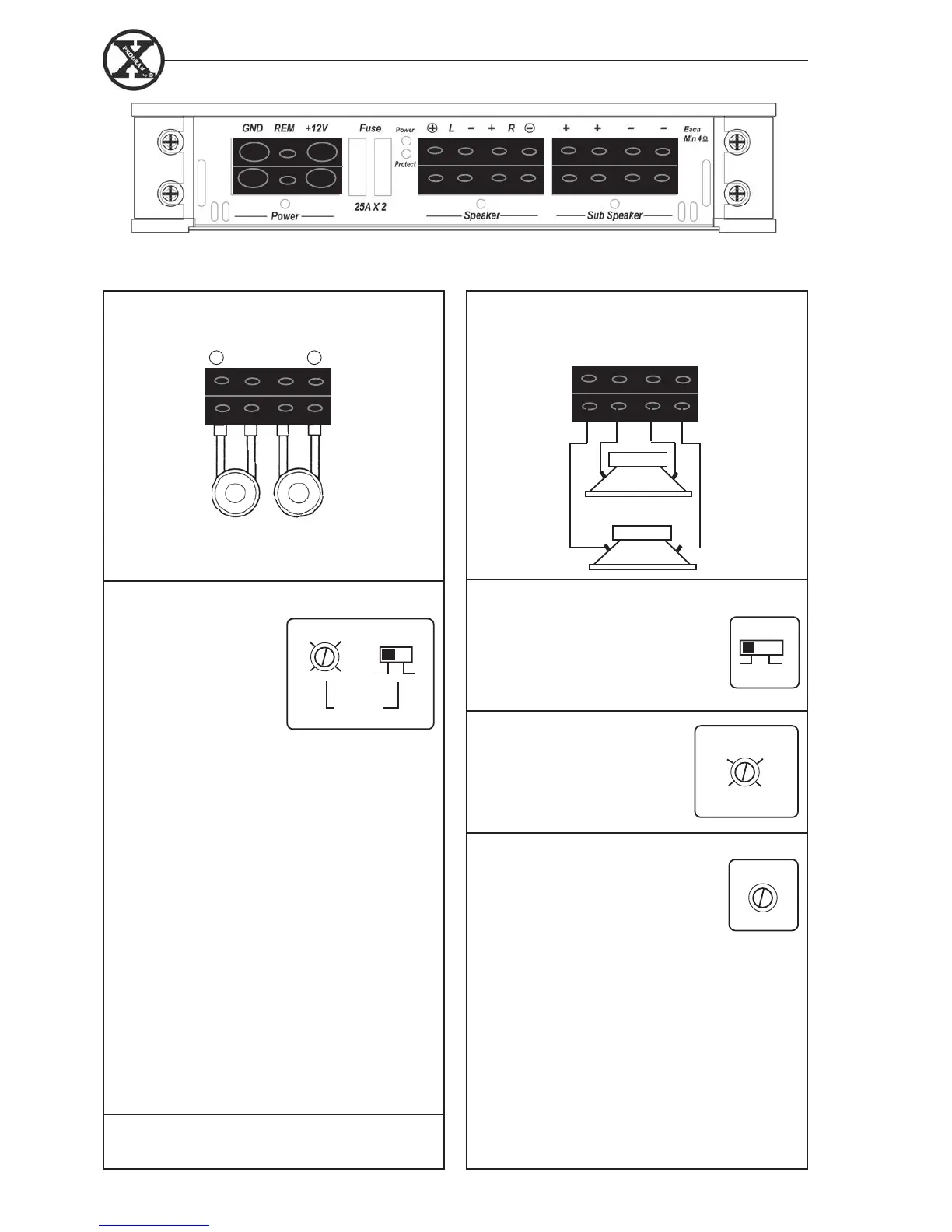

Speaker wiring X-D30
1. Two fullrange speakers to the front channels
- - + +
+ L - + R -
Filter settings Front channels
HPF
150 Hz
50 Hz
500 Hz
On Off
250 Hz
The Subsonic filter blocks the very
deepest frequencies from reaching the
subwoofers. It can be switched on / off.
The cutoff frequency is 25 Hz. Normal
position is ON.
Subsonic
Off
On
The low pass filter is used for
subwoofers. It will allow low
frequencies only and blocks
higher frequencies.
A typical setting is 50 – 70 Hz.
LPF
30 Hz
150 Hz
60 Hz 100 Hz
The phase control can be set
continuously from 0 - 180 degrees.
This function is used together with
subwoofers. This is very useful when
you want to adjust the bass sound for
best front stage image. Start at 0 and
turn the control slowly clockwise until
you experience that the bass sound is
coming from the front. If you don’t get
the result you want, also try to phase
reverse the subwoofer connections and
make a new adjustment.
Phase
0
180
o
One or two subwoofers to sub channels,
Each speaker min 4 ohm.
