One 4 ohm subwoofer
Phase control setting:
The phase control can be set
continuously from 0 - 180 degrees.
This function is used together with
subwoofers. This is very useful when
you want to adjust the bass sound for
best front stage image.
Bass boost setting:
Bass boost is used to increase the
bass volume at a low frequency.
frequencies. You can select the
amplification between 0 dB ( no
amplification ) and +18 dB ( full
amplification ).
Two 4 ohm subwoofers
NOTE!
Minimum amplifier load is 1 ohm, lower
impedances may damage the amplifier. This
connection gives a 2 ohm load with 4 ohm
subwoofers.
Filter settings
8

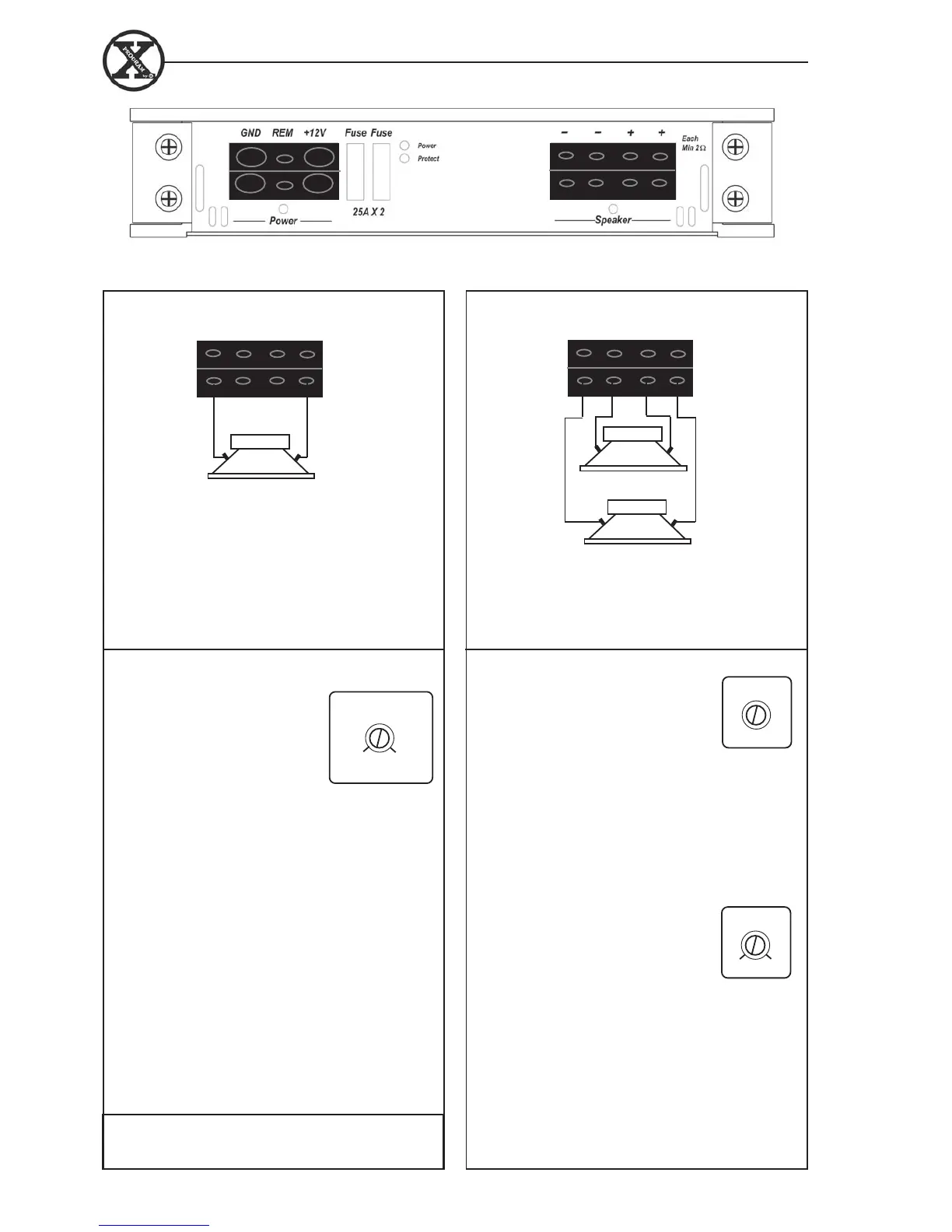

Speaker wiring X-D10
X-D10
- - + +
NOTE!
Minimum amplifier load is 1 ohm, this connection
gives a 4 ohm load with a 4 ohm subwoofer.
On page 12 you can find more examples of how to
connect subwoofers to amplifiers.
Crossover
50 Hz
500 Hz
150 Hz 250 Hz
Phase
0
180
o
Bass boost
0
+18 dB
This function is used to compensate for the bass
box function and to adjust for your own taste of bass.
Set level control at 0 dB if you want it to be
inoperative.
NOTE! Use the bass boost very carefully. The
sound can be destroyed if you turn it up to high.
Start at 0 and turn the control slowly clockwise until
you experience that the bass sound is coming from
the front. If you don’t get the result you want, also try
to phase reverse the subwoofer connections and
make a new adjustment.
For power wiring, see page 4
For High or low level input wiring, see page 5
LP-filter:
The low pass filter is mostly
used for subwoofers. It will allow
low frequencies only and blocks
higher frequencies.
A typical setting is 50 – 70 Hz.
- - + +
NOTE!
The speaker termi-
nal has dual + and
- for easier
connection if you
have more than
one subwoofer.
They are internally
connected in
parallel and can
not be bridged.
