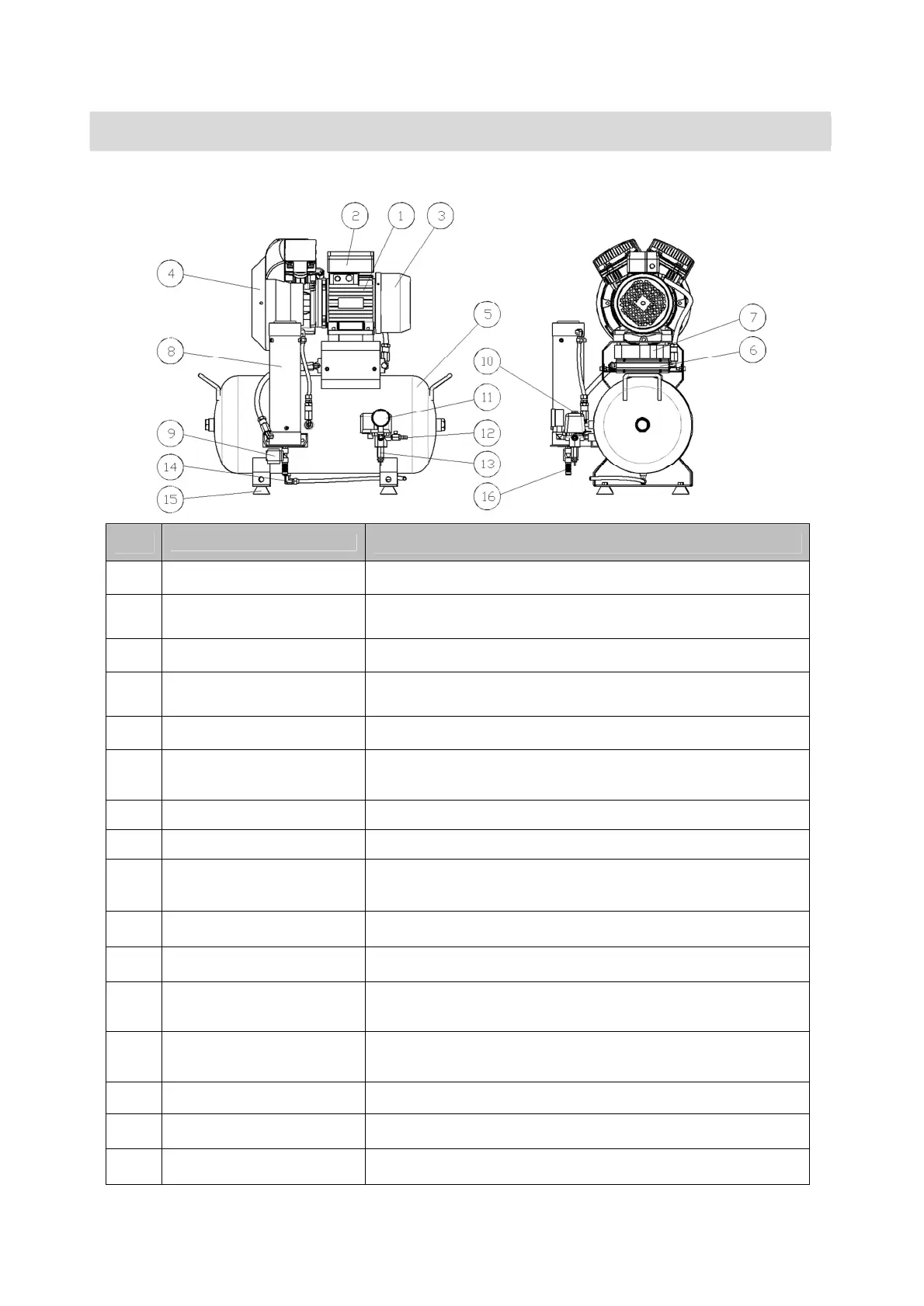

4.1 Functional Description
No.
Components
Description
1
Motor Housing
Housing to protect shaft and motor
2
Interrupter switch box
Switch to cut off the electric current in case of
overload.
3
Fan cover
Fan to cool motor and prevent tentacle danger.
4
Motor cover
Motor cam protection and cooling air circulation
cover
5
Air tank
Containers to store compressed air.
6
Cooling Body
Device for cooling the air generated by motor to
supply air to the dryer.
7
Cooling Fan
Auxiliary device for cooling air of cooling body
8
Dryer
Removing moisture from compressed air.
9
Solenoid valve
Valve that maintains pressure to prevent air in the
tank connected to dryer from leaking out.
10
Power switch
Switch for inputting motor power.
11
Pressure gauge
Gauge indicating air pressure of the tank.
12
Air exhauster
Air outlet for supplying compressed air from the
tank to dental device.
13
Safety Valve
Safety valve that discharges pressure when the
reference pressure is exceeded.
14
Drain
Removing moisture form compressed air.
15
Rubber foot
Rubber base of this equipment.
16
Silencer
Air exhaust noise reduction device
