D I S P L A Y

4,3" / 5"4,3" / 5"4,3" / 5"

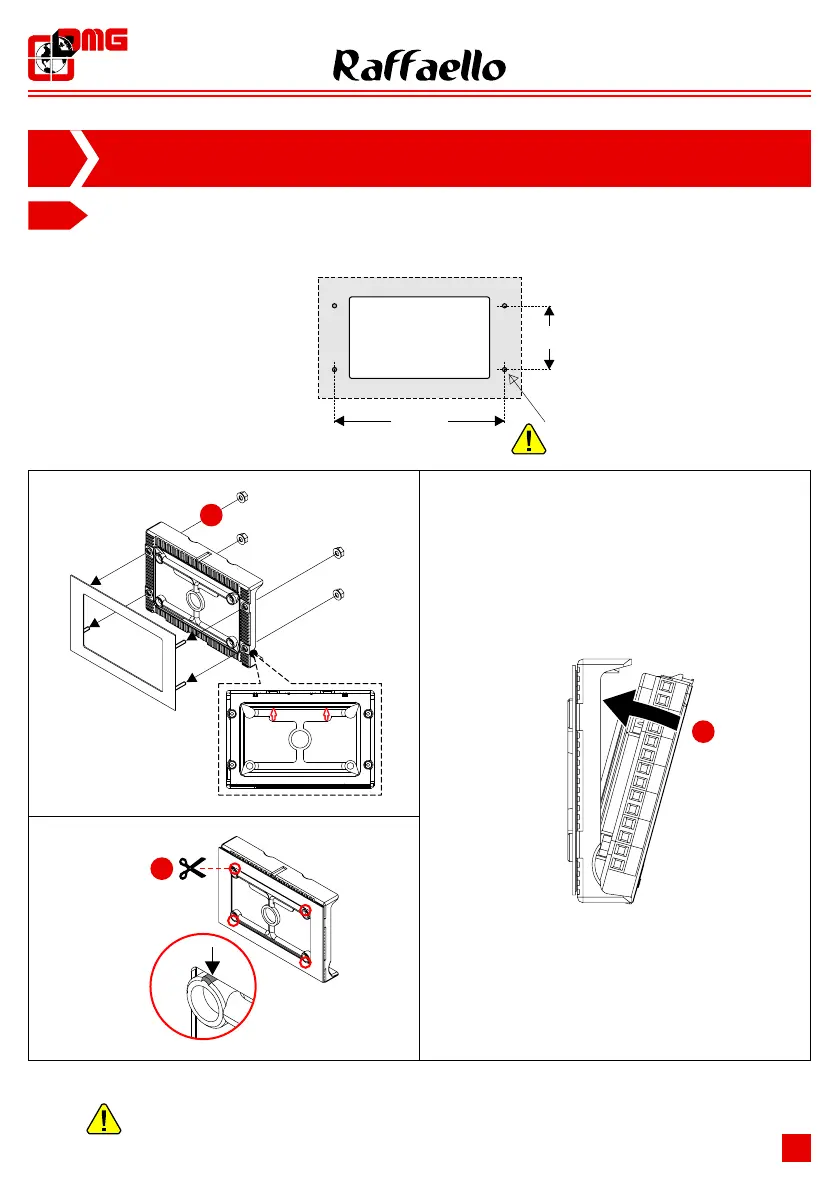

MONTAGGIO • MOUNTING

FICHE DE MONTAGE • MONTAGEANLEITUNG • INSTRUCCIONES DE MONTAJE

2.1

RAFFAELLO 4,3"

Con perni saldati su piastre 1,5÷3 mm

With studs on 1,5÷3 mm faceplate

Scasso piastra

Faceplate cut-out

99x57,5 mm - R1,65

120 mm

45 mm

4,3"

PIASTRA / FACEPLA

ALTOALTOALTO

Perni / Studs

M3x6

In caso di sostituzione di display esistente verificare che la lunghezza dei perni sia ≤ 8mm ed eventualmente accorciarli.

If you are replacing an existing position indicator, please verify that studs' length is ≤ 8mm; if not, shorten them.
