Peripherals

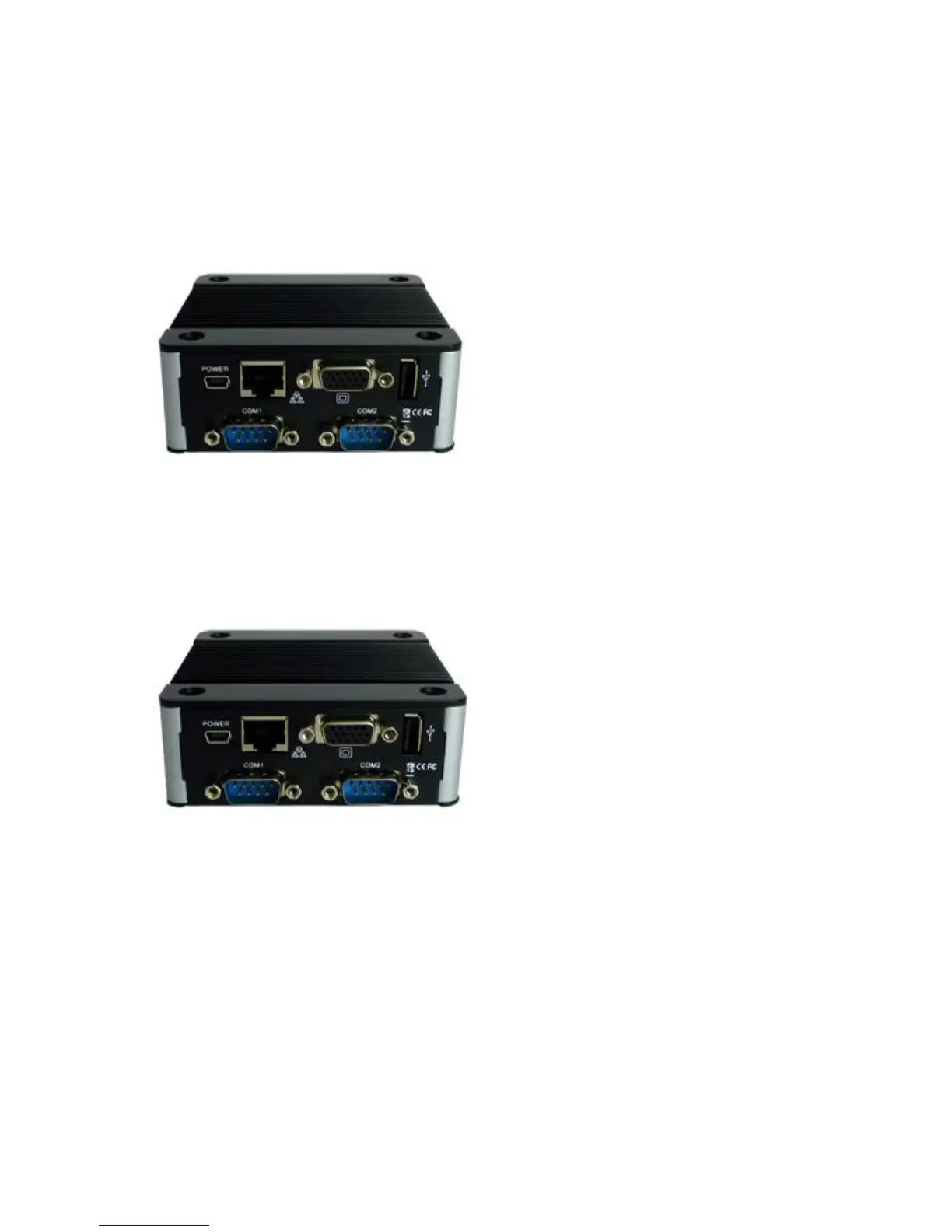

Connecting the Power Adaptor
A: DC Power Jack
To use EBOX-3350MX Series immediately,
please attach the supplied adapter for the power
source. See the left diagram for visual
connection.
Connect the DC power jack of the power
adaptor to the DC Input of EBOX-3350MX
Series.
Note: With the Auto Power On supported
models (Optional), the system then will be
turned on automatically.
Connecting the Monitor
B: VGA Connection
Make your LCD display connection with the
VGA cable to the 15-pin D-Sub VGA port.
A
B
