Connecting the LAN

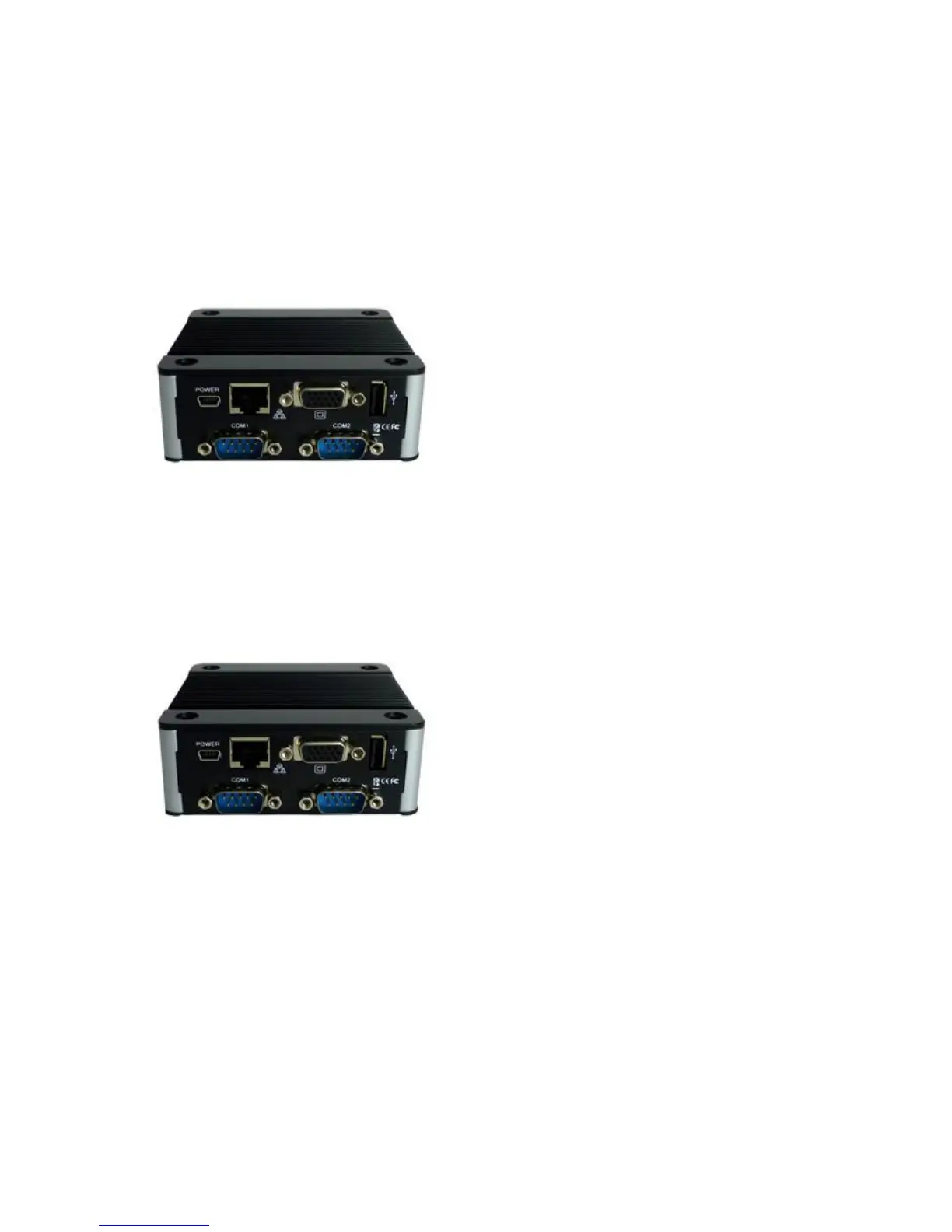

G: RJ-45 LAN
There is an available RJ-45 LAN jack for
Ethernet connection.
(see left diagram for RJ-45 Jack).
Connecting Serial port
G
H: Serial Ports (Available in EBOX-3350MX-C2/C2AP)
The serial port is usually connected to a serial device like
modem or terminal devices.
