Pin Assignments

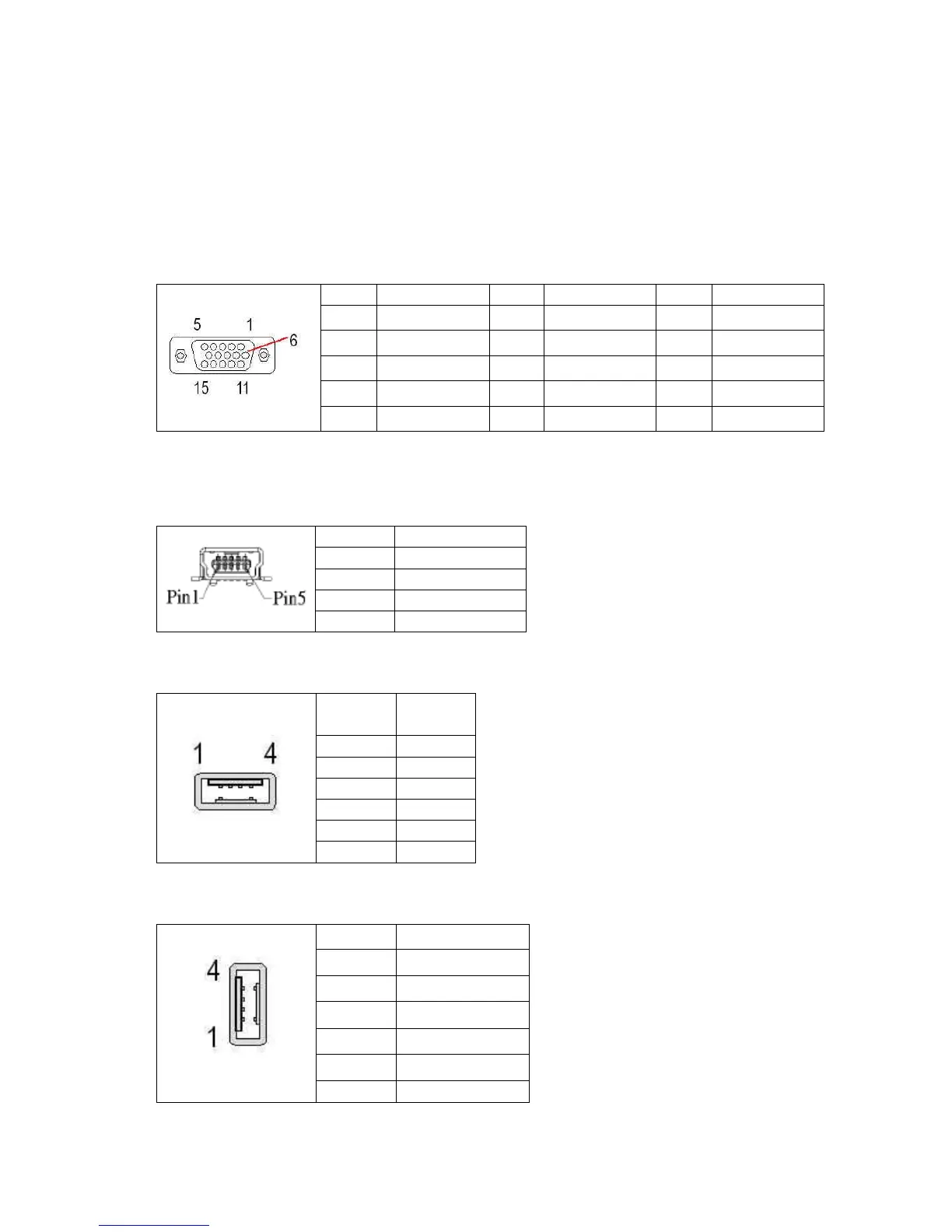

J3: VGA – 15-pin D-Sub Connector
Pin #
Signal Name
Pin #
Signal Name
Pin #
Signal Name
1
MR
6
GND
11
NC
2
MG
7
GND
12
VCC
3
MB
8
GND
13
HYSYNC
4
NC
9
NC
14
VSYNC
5
GND
10
GND
15
VCC
J4: Mini USB DC Power Input
J7, J8: USB : For connection to external USB device – 4-pin USB Type 1 Connector (H)
Pin #
Signal
Name
1
VCC
2
USB2-
3
USB2+
4
GND
5
NC
6
NC
J9: USB (90
o
) – For connection to external USB device – 4-pin USB Type 1 Connector (H)
Pin #
Signal Name
1
+5V Input
2
USB In -
3
USB In +
4
None
Pin #
Signal Name
1
VCC
2
USB0-
3
USB0+
4
GND
5
GGND
6
GGND
