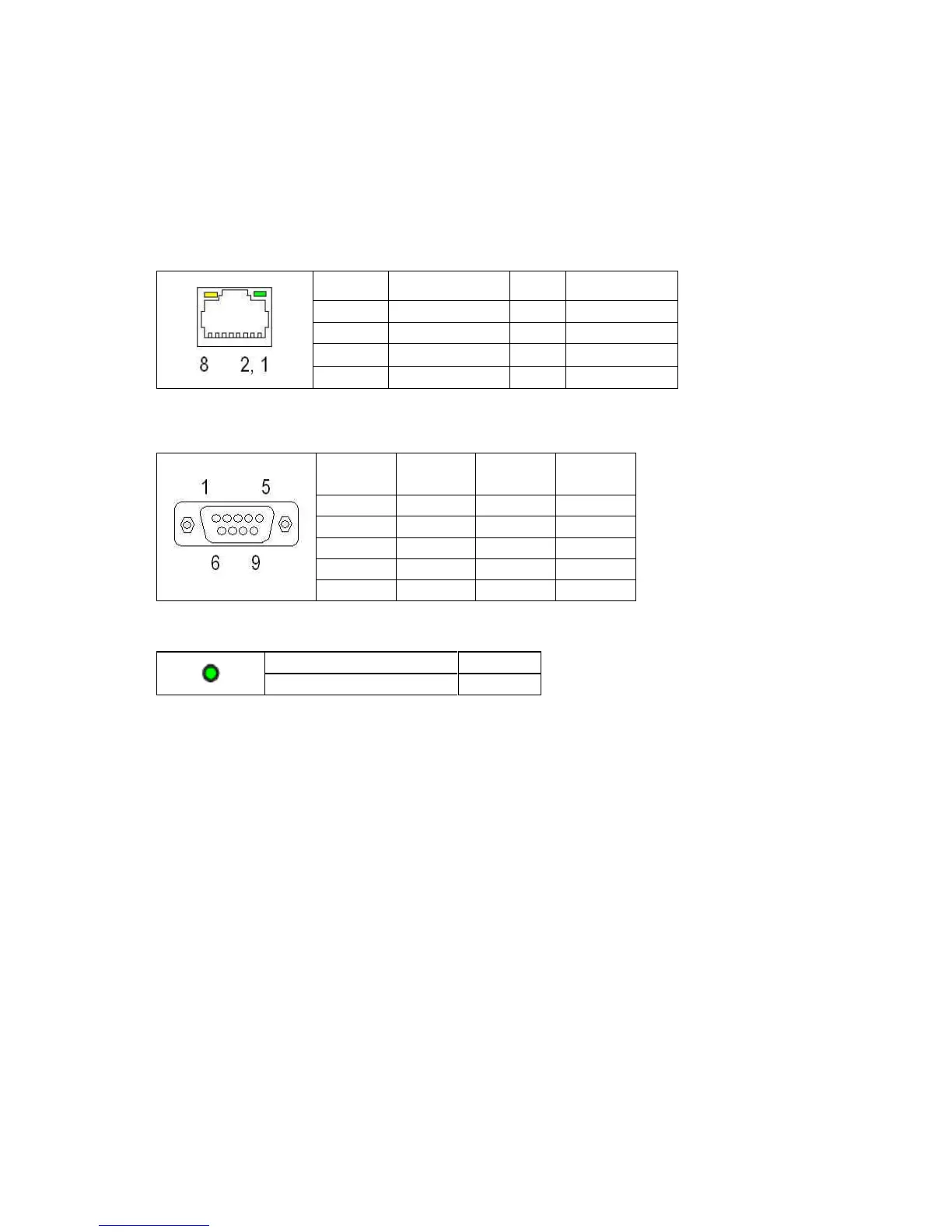

Pin Assignments
J12: LAN: RJ-45 Connector
Pin #
Signal Name
Pin #
Signal Name
1
FTXD+
2
FTXD-
3
FRXIN+
4
NC
5
NC
6
FRXIN-
7
NC
8
NC
J13, J14: COM - 9-pin D-Sub Connector
Pin #
Signal
Name
Pin #
Signal
Name
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
- -
- -
LEDS: POWER ON / OFF
LED Color
State
Green
Power On
