2. Instrument Front Panel
The instrument front panel in Figure 2.1 contains:
• Outputs for three 150 VA voltage/low current convertible sources
• Outputs for three 150 VA current sources
• Outputs for 75 VA sources when the 150 VA sources are split
• Battery simulator
• Connections for eight logic outputs
• Connections for eight logic inputs
• Ports for system communications
• On/Off switch and AC power connection
Control of all test functions is accomplished from a computer.

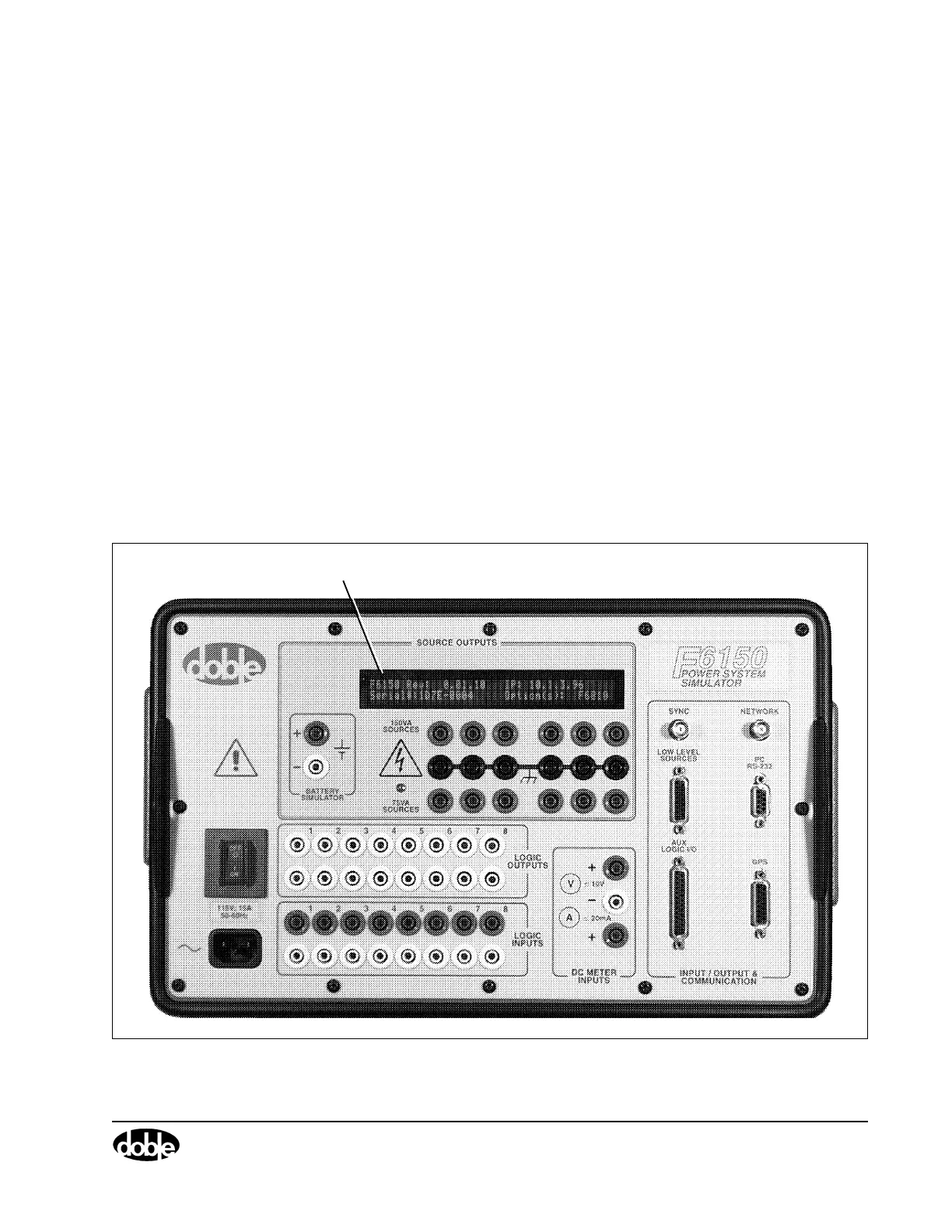

Figure 2.1 F6000 Instrument Front Panel
Instrument Display (VFD)
