Dobot MOOZ-3 - Fast Assembly Guide; Accessories List; Install Filament Support; Connect Bourdon Pipe and Extruder

1
I

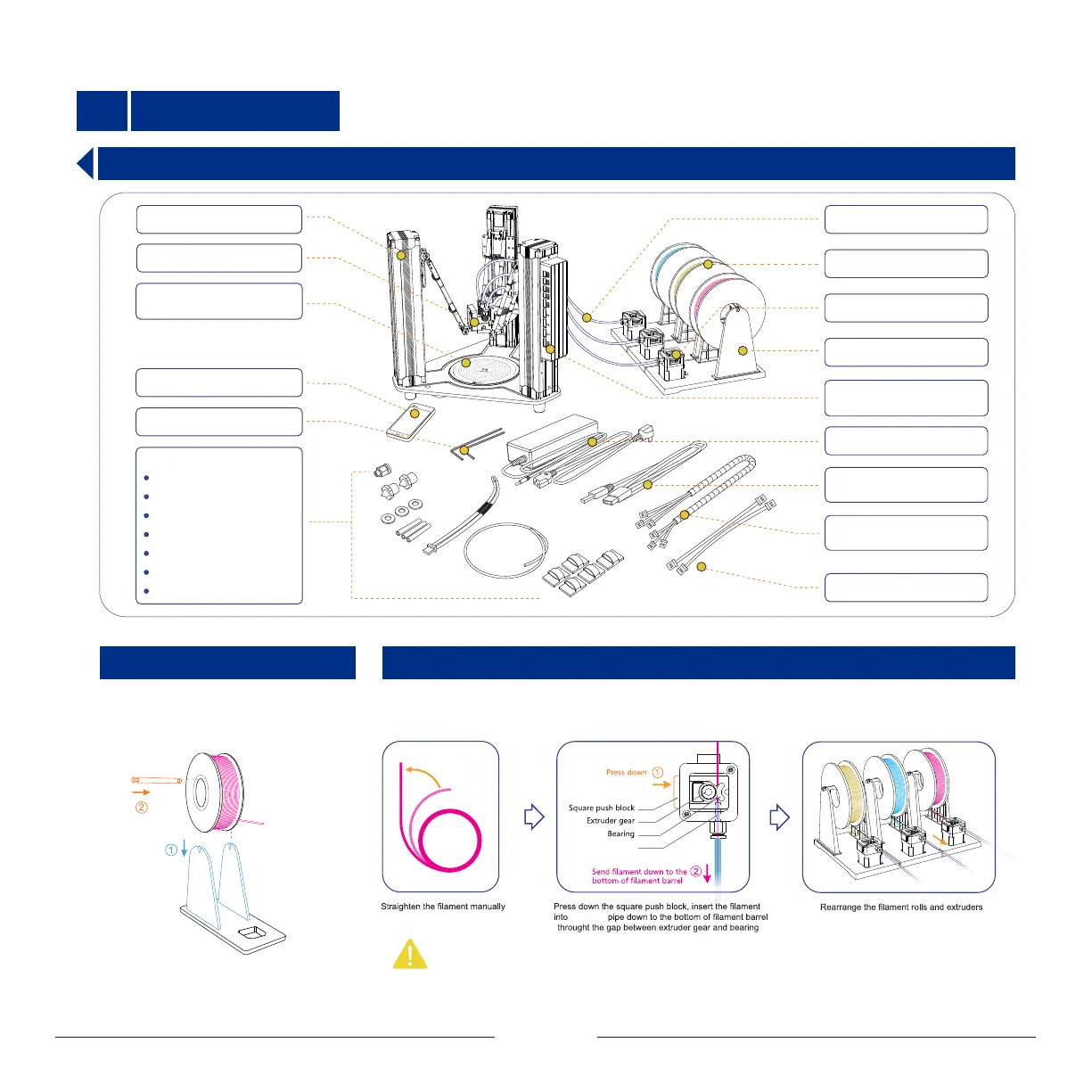

Fast Assembly
Set up the filament support, and place the
filament on it. As shown below
1.1.1 Install the Filament Support
1.1 Accessories List
1.1.2 Connect the Bourdon Pipe and Extruder
Run the filament through the extruder and insert one end of the bourdon pipe into pipe connector. Keep
feeding the filament until it extends out of the other end of the pipe for about 20~30mm.Place the
extruder on the filament support orderly after proper connecting.
Note:
In case the bourdon pipe and pipe connector need to be detached: Press down the plastic part of the connector and pull the
pipe out quickly (see the illustration above).
Bourdon Pipe x 3
250g PLA Filament x 3
Filament Support x 3
8-Core Cable x 2
Printer Head Control Board
x 1
Extruder x 3
Usb 2.0 Cable x 1
(A-Male to B-Male)
Extruder Motor Power
Cable x 3
12V Power Adapter x 1
Quick Pipe Connector x 1
Bourbon Pipe x 1
Temperature Sensor x 1
Nozzle Sealing Gasket x 3
PTFE Pipe x 3
Cable Clip x 5
LCD Touch Pad x 1
L-type Hex Screwdrive x 2
Identical Linear Actuators x 3
Printer Head Module x 1
Base + Main Control
Board + Heated Bed x 1set
Spare Parts:
Nozzle x 2
bourdon
Bourdon pipe
