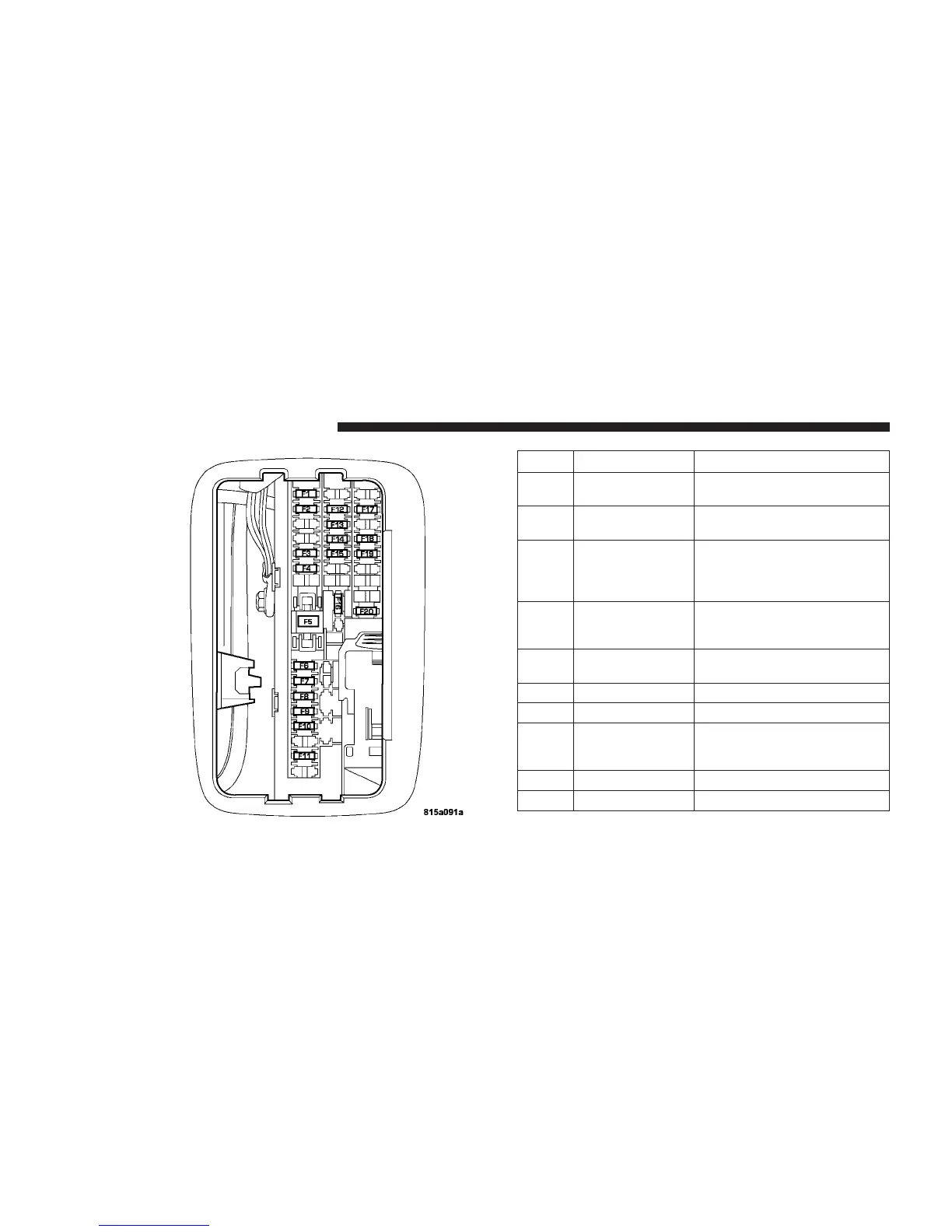

Cavity Mini Fuse/Color Description
F1 15 Amp Blue
Instrument Cluster Battery
Feed
F 2 10 Amp Red
Occupant Classification
Module (OCM) Battery Feed
F3 10 Amp Red
Ignition Run/Start for Con-
troller (NGC), Integrated
Power Module (IPM), AC
Relay and Fuel Pump Relay
F4 10 Amp Red
Door Node and Non-
Memory Power Mirror
Switch Battery Feed
F5 (2) 10 Amp Red
Airbags (2 Fuses in Yellow
Holder)
F6 10 Amp Red Ignition Run/Start Unlock
F7 25 Amp Natural Radio Battery Feed
F8 10 Amp Red
Ignition Run/Start for
Cluster/Transfer Case/Seat
Sw. Back lighting
F9 10 Amp Red SDAR/DVD Battery Feed
F10 10 Amp Red Spare
Fuse Block
372 MAINTAINING YOUR VEHICLE
