BULB REPLACEMENT
Headlights/Parking/Turn Signal

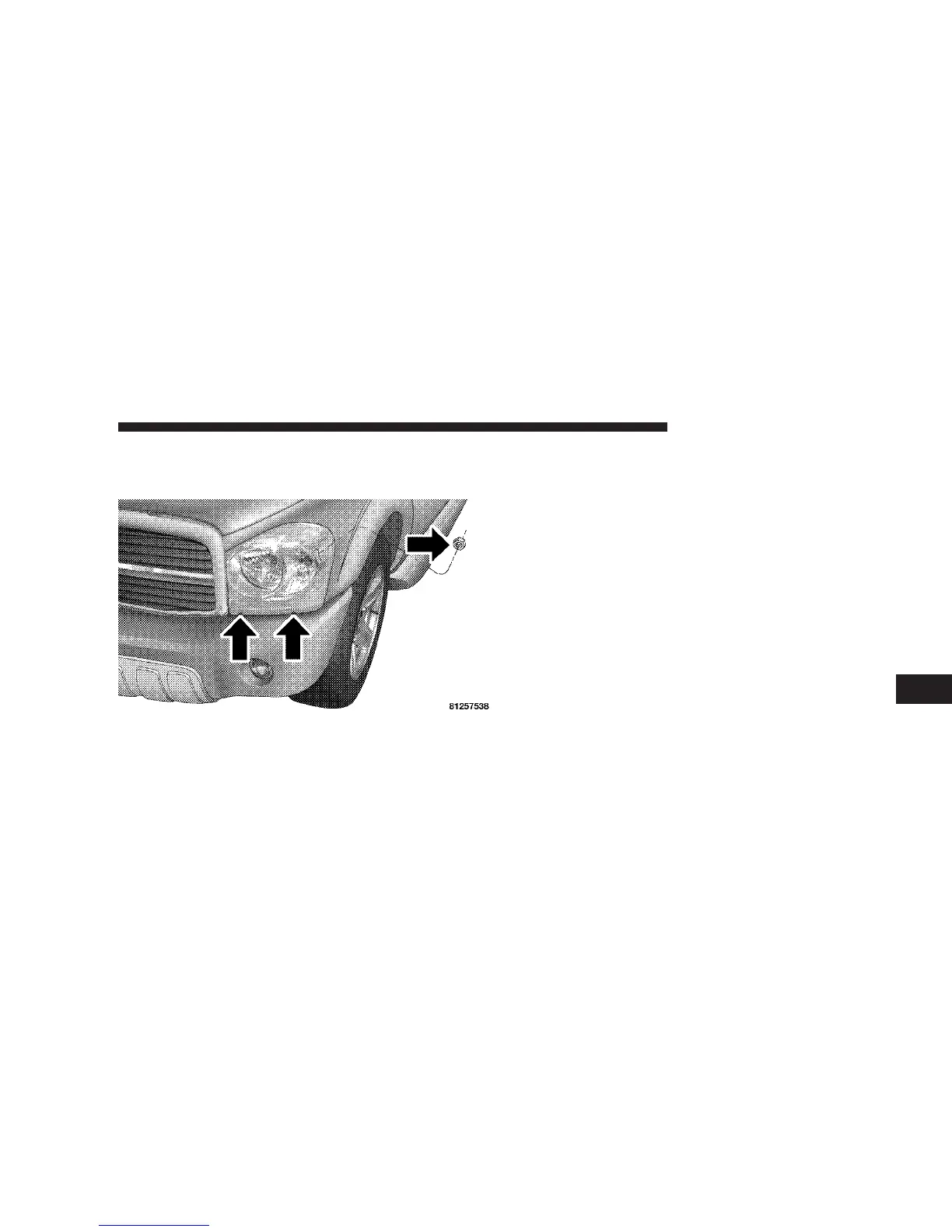

1. Remove the two bolts attaching the headlight to the
inner fender panel.
2. Remove one nut that attaches the headlight to the
inner fender panel. Access to the nut is possible by
removing the fender panel access door which is located
in the wheel liner.
3. Grasp the headlight and pull firmly to disengage the
headlight from the fender panel.
4. While firmly holding the headlight in your hands
disconnect all connectors by following the procedure
described in step number 5 below.
5. Remove the bulb connector from the headlight making
sure to pull and release the red tab on all connectors.
Loosen the connector by pressing down on the black
and/or green release which is located below or above the
red tab. The green release is located above the red tab on
the H13, the black release is located above the 3457AK
red tab.
