Cavity Cartridge Fuse Mini Fuse Description
F24 – 5 Amp Tan Run/Accessory Relay
F25 – 5 Amp Tan Transmission Control Module #4
F26 – 5 Amp Tan Stop Lamp Switch
F27 – 10 Amp Red Pneumatic Lumbar Support
Underhood Fuses

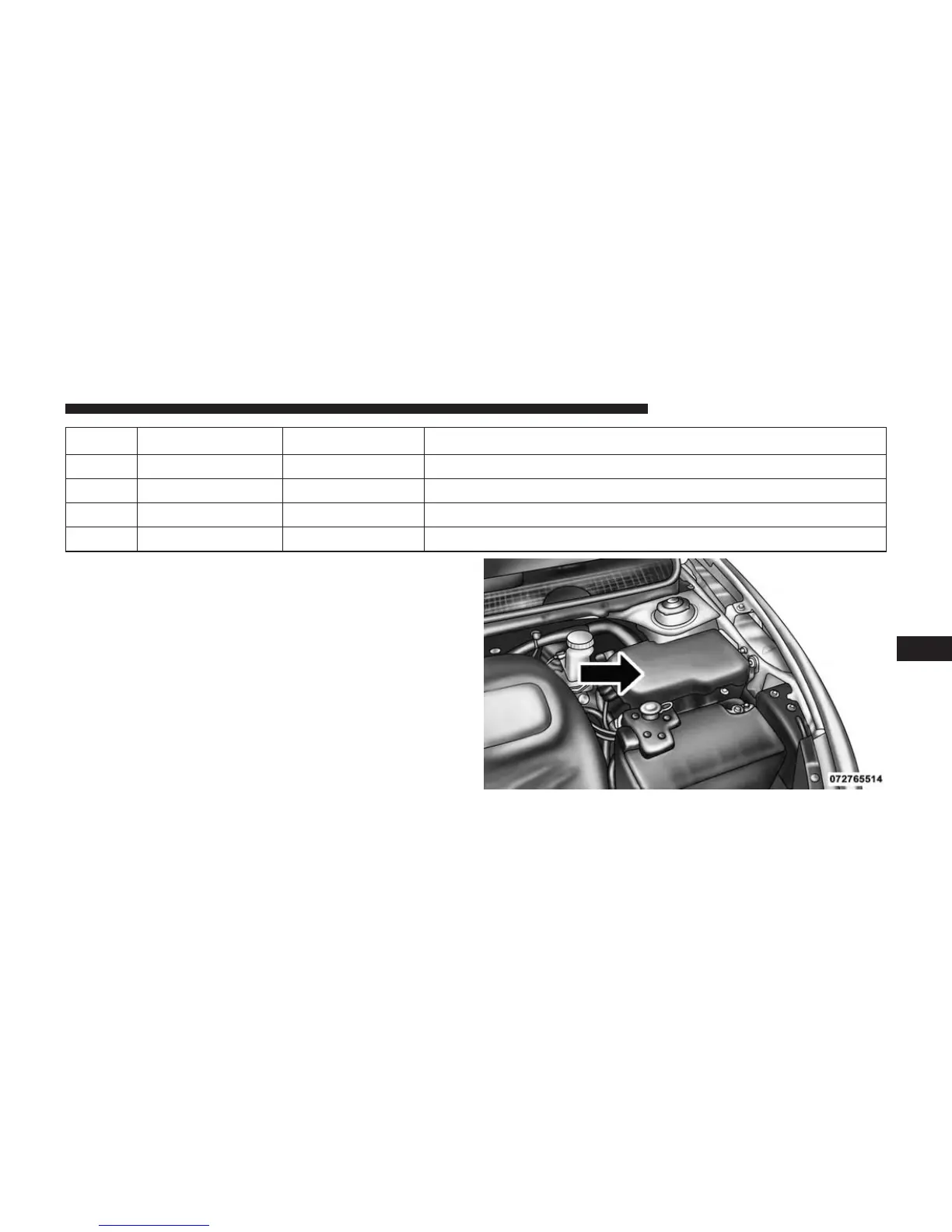

The Power Distribution Center is located on the right side
of the engine compartment, behind the battery. This
center contains maxi fuses, mini fuses, relays, and circuit
breakers. The cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart.
Power Distribution Center
7
MAINTAINING YOUR VEHICLE 611
