DID Displays

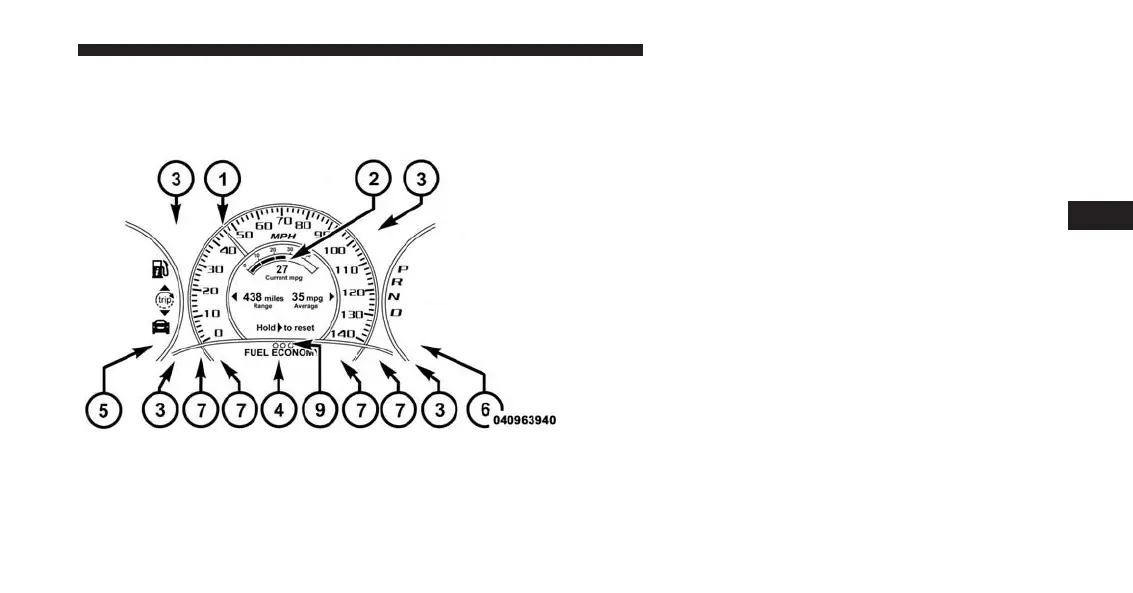

The DID displays are located in the center portion of the
cluster and consists of the follow sections:
1 — Speedometer (Digital or Analog) (km/h or mph)
2 — Main Screen — The inner ring of the display will
illuminate in grey under normal conditions, yellow for
non critical warnings, red for critical warnings and white
for on demand information.
3 — Selectable Information (Compass, Temp, Range to
Empty, Trip A, Trip B, Average MPG)
4 — Menu Titles / Odometer
5 — Menu Set (Selectable Icons)
6 — Gear Selector Status (PRNDL)
7 — Reconfigurable Telltales
9 — Submenu Current Position — Whenever there are
submenus available, the position within the submenus is
shown here.
