2. Disengage the retaining tab that secures the filter
cover to the HVAC housing, and remove the cover.
3. Remove the A/C air filter by pulling it straight out of
the housing. Take note of the air filter position indica-
tors.
4. Install the A/C air filter with the air filter position
indicators pointing in the same direction as removal.
When installing the filter cover, make sure the retain-
ing tab fully engages the cover.

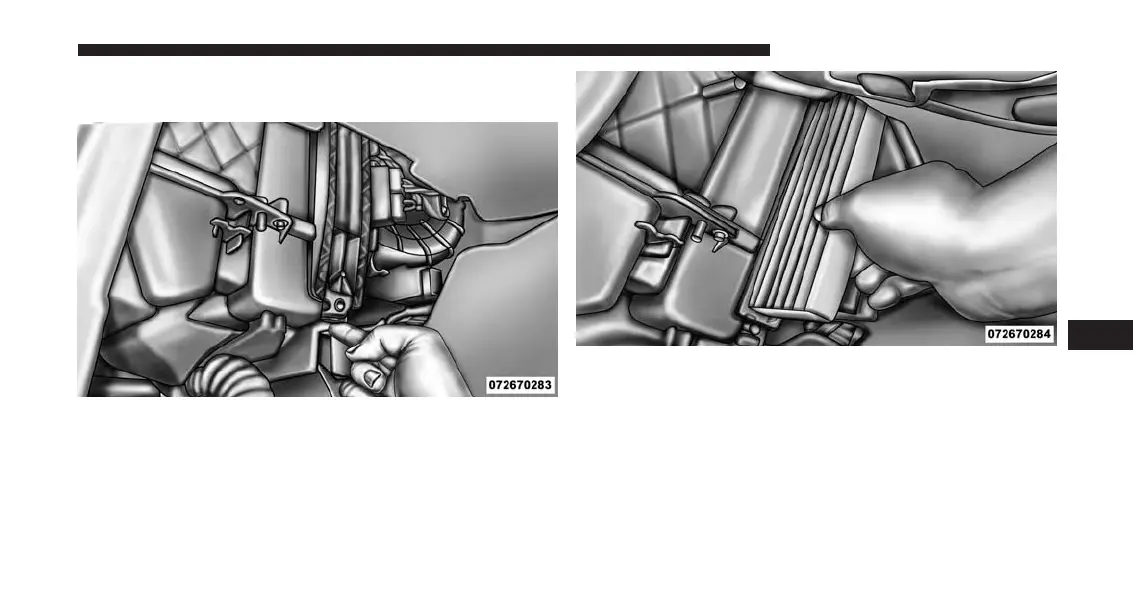

Filter Cover Retaining Tab
Air Conditioning Filter Removal
7
MAINTAINING YOUR VEHICLE 603
