5
ENGLISH (Original instructions)
Explanation of general view
1-1. Lever
1-2. Sprocket cover
2-1. Adjusting dial
3-1. Sprocket
4-1. Guide bar
4-2. Hole
5-1. Hook
5-2. Hole
5-3. Pin
7-1. Lever
7-2. Sprocket cover
8-1. Loosen
8-2. Tighten
8-3. Adjusting dial
8-4. Guide bar
8-5. Saw chain
9-1. Lever
9-2. Sprocket cover
10-1. Cord hook
10-2. Tool's cord
10-3. Extension cord
10-4. Plug and socket (the shape may
differ from country to country)
11-1. Lock-off button
11-2. Switch trigger
14-1. Oil filler cap
14-2. Strap
15-1. Loosen
15-2. Tighten
15-3. Adjusting dial
15-4. Guide bar
15-5. Saw chain
16-1. Front hand guard
16-2. Lock
16-3. Unlock
17-1. Front hand guard
17-2. Lock
17-3. Unlock
18-1. Oil level sight
20-1. Spike bumper
24-1. Felling area
27-1. Felling direction
27-2. Danger zone
27-3. Escape route
29-1. Cutter length
29-2. Distance between cutting edge
and depth gauge
29-3. Minimum 3 mm
30-1. Side plate angle
35-1. Oil guide groove
35-2. Oil feed hole
36-1. Sprocket

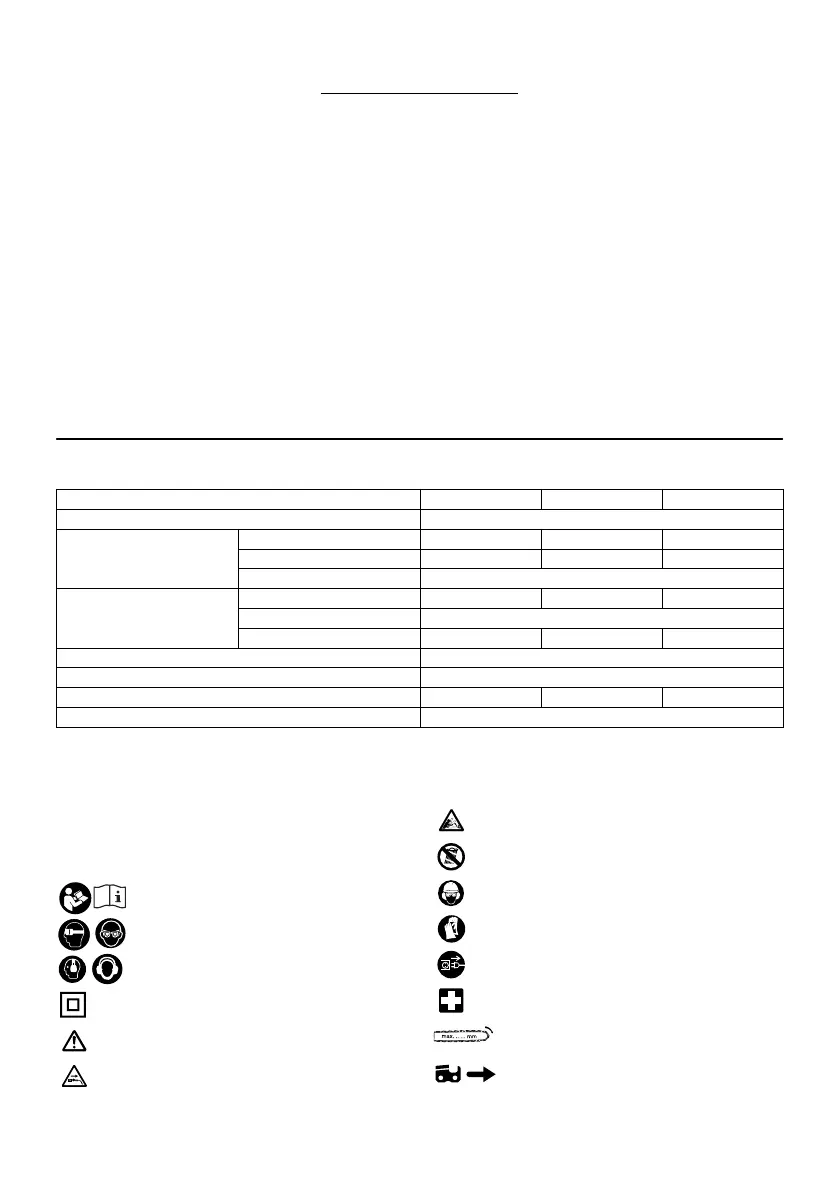

SPECIFICATIONS
Model ES-34 TLC ES-39 TLC ES-43 TLC
Max. chain speed 14.5 m/s (870 m/min)
Bar length 300 mm 350 mm 400 mm
Cutting length 265 mm 325 mm 360 mm
Standard guide bar
Guide bar type Sprocket nose bar
Type 291 (90PX) 291 (90PX) 492 (91PX)
Pitch 3/8"
Standard saw chain
No. of drive links 46 52 56
Recommended guide bar length 300 - 400 mm
Overall length (without guide bar) 455 mm
Net weight 4.6 kg 4.7 kg 4.7 kg
Extension cable (optional) DIN 57282/HO 7RN -F L=30 m max.,3x1.5 mm
2
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END218-7
Symbol
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･ Read instruction manual and follow the
warnings and safety instructions.
･ Wear eye protection.
･ Wear ear protection.
･ DOUBLE INSULATION
･ Caution: particular care and attention
required!
･ Caution: withdraw the mains plug
immediately if the cable is damaged!
･ Caution: kickback!
･ Protect against rain and damp!
･ Wear a helmet, goggles and ear
protection!
･ Wear safety gloves!
･ Withdraw the mains plug!
･ First aid
･ Maximum permissible length of cut
･ Direction of chain travel
