Dolmar PC-7314 S - Denomination of Components

12

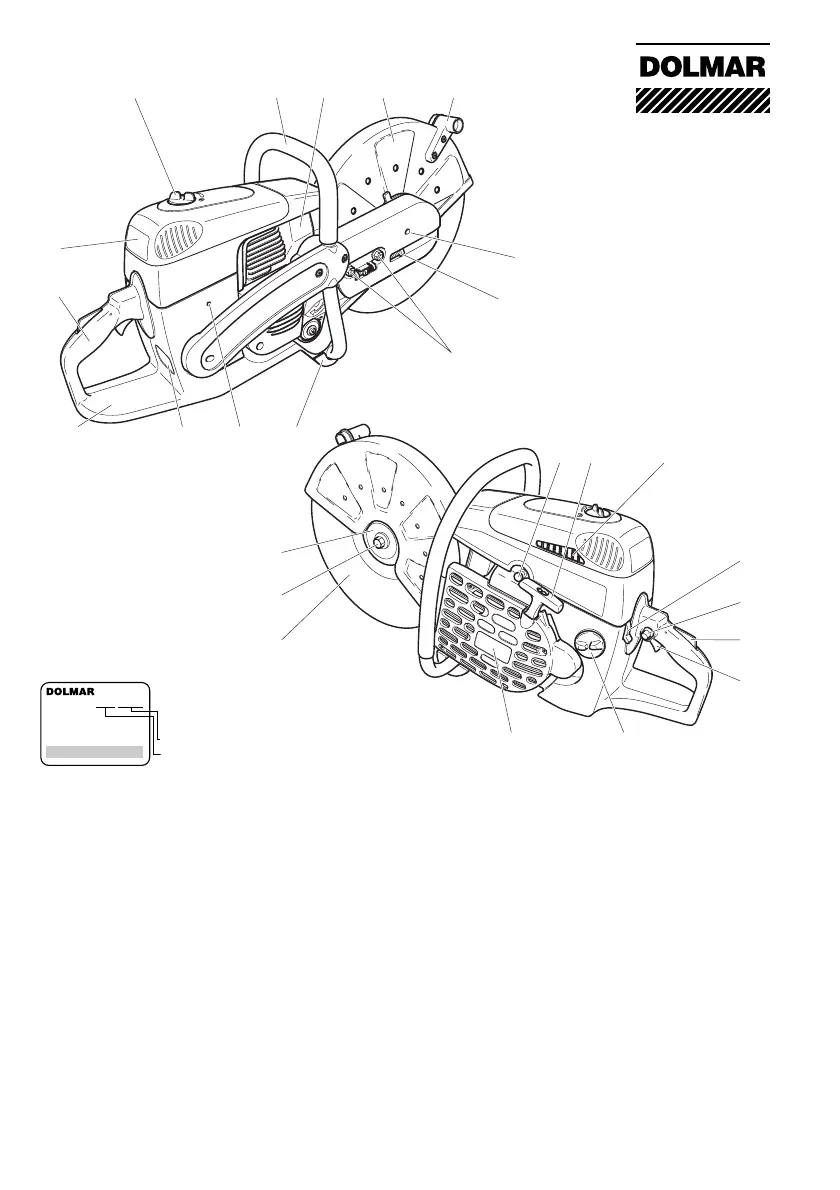

Denomination of components (Illustration shows model PC-7314 S)
1 Handle
2 Filter cover for air Þ lter and spark plug cap
3 Cover lock
4 Tubular handle
5 Mufß er
6 Protection hood
7 Grip
8 V-belt tension adjusting screw
9 Retaining nuts
10 Stand
11 Carburetor adjustment opening
12 IdentiÞ cation plate
13 Fuel tank with handle
14 Decompression valve
15 Starter grip
16 Air intake
17 Combination Start/Stop (I/O) switch, choke
18 Stop knob for halfway throttle
19 Safety locking button
20 Throttle lever
21 Tank cap (fuel)
22 Starter housing with starter
23 Cutting disc
24 Disc bolt
25 Spring washer
26 Hold opening
1
24
25
23
2
3 4 5 6 7
8
26
14 15 16
17
18
19
20
9
10
2122
12 1113
PC-7314 S
2007 123456
DOLMAR GmbH, 22045 Hamburg, Germany
394.100.101 Typ 394
EMI OFB
973108
Serial number
Year of manufacture
IdentiÞ cation plate (12)
Indicate when ordering spare parts
