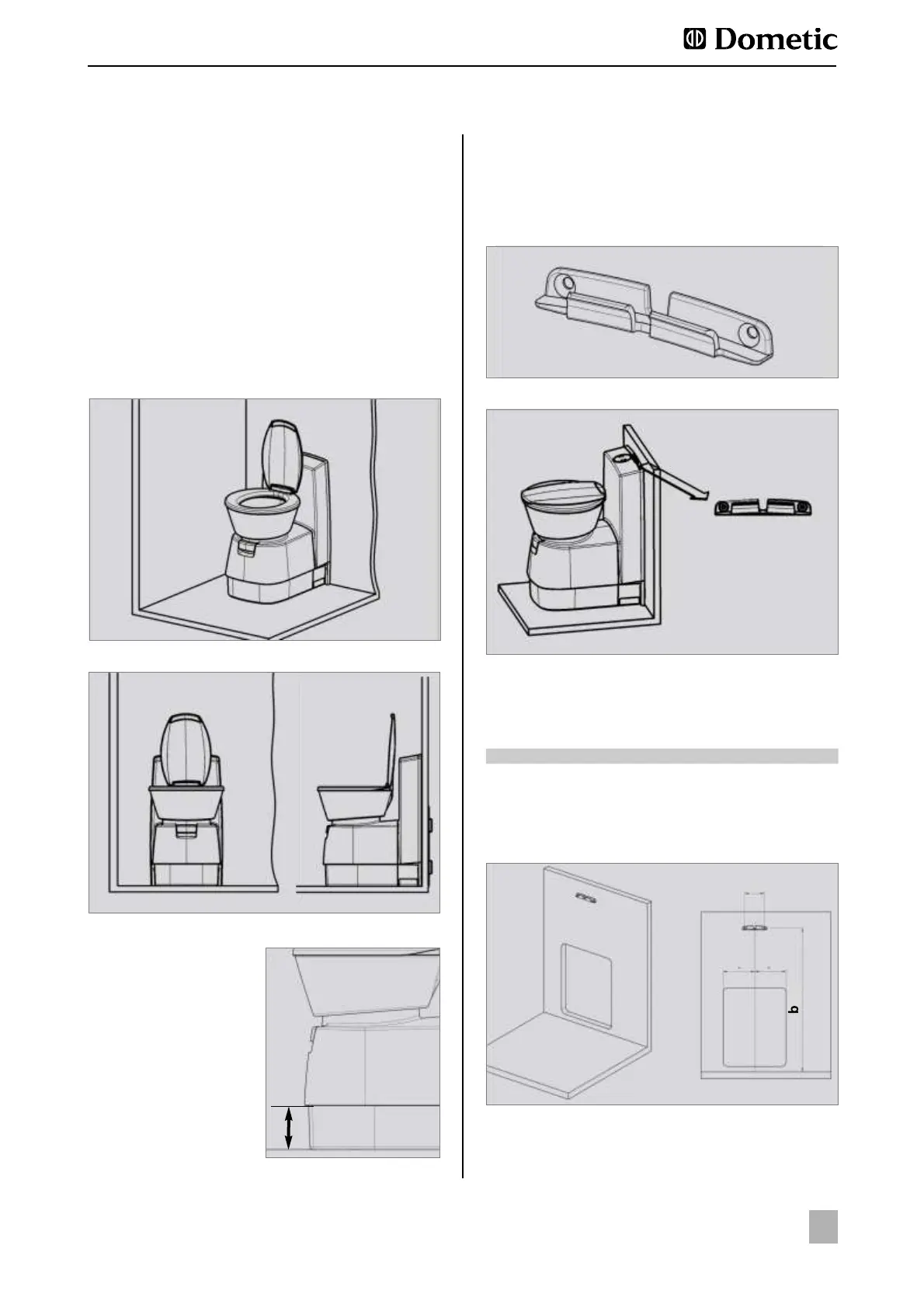

Dometic CT4110 - Placing the CTS 4110 Toilet; Fitting the Wall Holder

10
EN
Installing the toilet
The CTS 4110 model has no integrated water
tank.
The control and operator panel is integrated in
the housing with this model.
This toilet can be installed directly against the
room wall (see Fig. below). To fit the toilet and
the console, a previously installed wall holder
is used (see Section 4.3.2.1).
The pedestal height
b) amounts 110 mm
(
(4.33
″
).
4.3.2
Placing the CTS 4110 toilet
Fig. 18
b
Fig. 16
Fig. 17
Fitting the wall holder
4.3.2.1
Fit the wall holder (Fig. 19) in the designated
position (see table, Fig. 20, 21)
Fig. 19
Fig. 21
a
Fitting height of the wall holder:
b
Model
a
CTS 4xxx
90
mm (3.54
″
)
651.5
mm (25.65
″
)
Fig. 20
