- 10 -

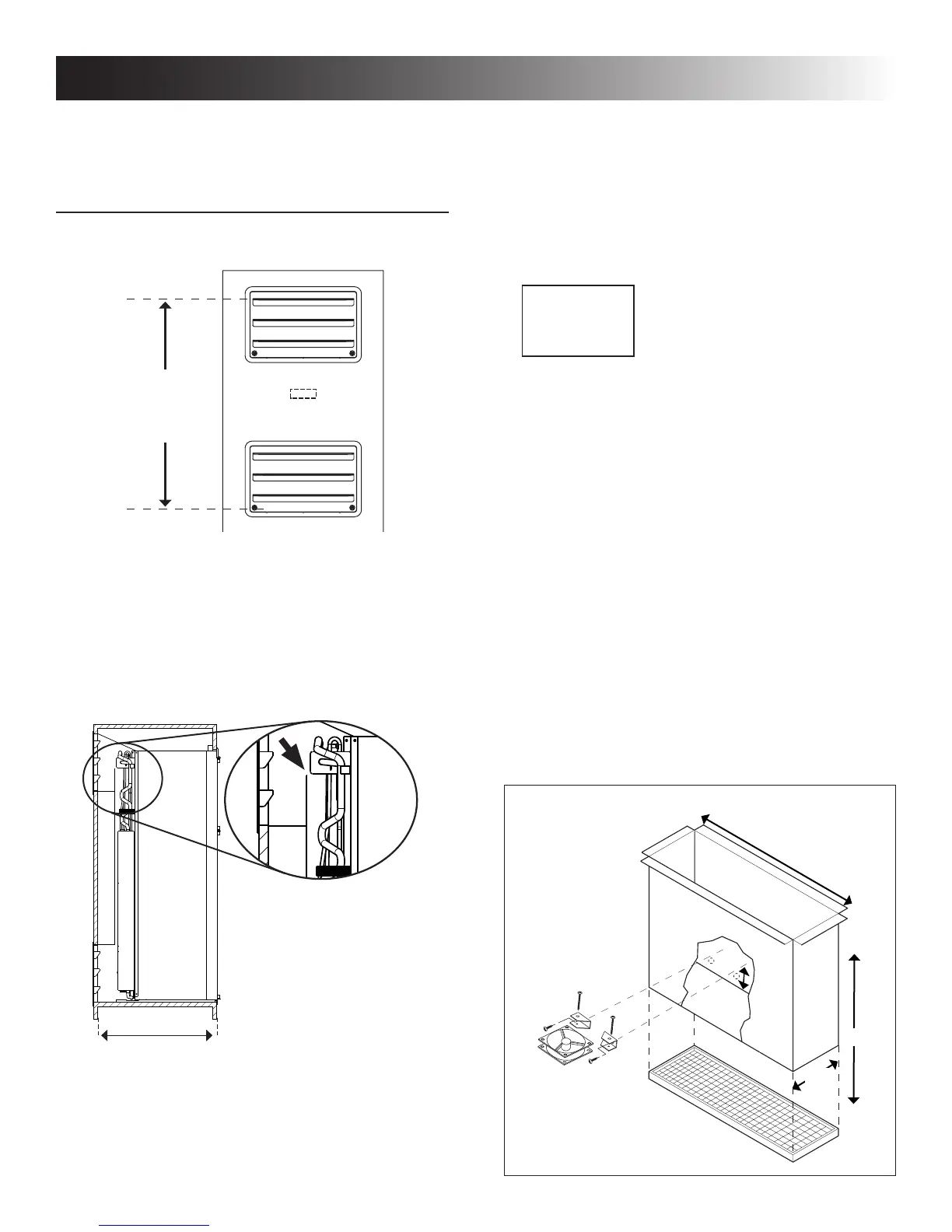

VENT APPLICATION TYPES
Step Action
1 CHECK VENTILATION HEIGHT.
See “APPENDIX B”.
2 CHECK RECESS DEPTH.
See “INSTALLATION PREPARATION >
RECESS DEPTH”. If required, install a box baf-
e above the lower access vent extending within
1/2” lower than the condenser ns as shown in the
picture below.
3 INSTALL LOWER SIDE VENT.
See “APPENDIX D”.
4 INSTALL UPPER SIDE VENT.
See “APPENDIX D”.
UPPER AND LOWER SIDE VENT
APPLICATION
INSTALL UPPER AND LOWER SIDE VENTS
ISLAND APPLICATION
ACCESS PANEL
• A sealed access panel is required when using this
system in conjunction with below oor ventilation.
Access is necessary to complete gas connections, gas leak
tests, and periodic service requirements at the rear of the
refrigerator.
Access panel dimensions
• If the refrigerator is located within the vehicle interior it
must be completely sealed to prevent products of com-
bustion or raw gas leakage within the living space! If it
is placed alongside the sidewall and oor ventilation is
provided, rear access is still required.
• The door or panel should prevent water entry.
DUCT
An air duct extends downwardly from the refrigerator through
a oor of the vehicle. If the refrigerator is not equipped with
a fan, a fan must be installed in the duct to aid air circulation.
Air for cooling the condenser and absorber is drawn up the
duct from outside the vehicle and exhausted outside the vehi-
cle through an upper duct and vent in a roof of the vehicle.
The duct must be centered horizontally on the back of the
refrigerator and should have the following dimensions:
Length (L): 11-34” min - max values
Width (W): 6.5”
Depth (D): 4-54” min - max values
Fan(s)*
Minimum
Ventilation
Height
* Fan(s) position may vary by model.
BOX BAFFLE
RECESS
DEPTH
FIG 10 - DUCT DIMENSIONS
D
L
W
Center Fan
Horizontally
Min 3”
Max 8”
1/4” x 0.025 metal mesh
22”
14”
