- 20 -
INSTALLATION PROCEDURE
PANEL DIMENSIONS
MAX. THICKNESS 5/32”
HEIGHT
MAX MIN
WIDTH
MAX MIN
UPPER DOOR
DM2652
DM2662
DM2663
DM2852
DM2862
NDM1062
15-27/32 15-25/32 20-3/4 20-5/8
RM2620 12-3/64 11-31/32 20-9/32 20-13/64
RM2820 14-7/8 14-51/64 22-11/64 22-3/32
RM3762
RM3962
17-3/64 16-31/32 23-25/32 23-11/16
LOWER DOOR / SINGLE DOOR
RM2351
RM2354
26-17/64 26-3/16 19-5/8 19-17/32
RM2410 27-7/16 27-23/64 20-9/32 20-13/64
RM2510 35-5/16 35-15/64 20-9/32 20-13/64
RM2620 32-1/4 32-5/32 20-9/32 20-13/64
RM2820 35-5/16 35-15/64 22-11/64 22-3/32
RM2451
RM2454
DM2652
DM2662
DM2663
32-9/16 32-1/2 20-3/4 20-5/8
RM2551
RM2554
DM2852
DM2862
NDM1062
38-11/16 38-5/8 20-3/4 20-5/8
RM3762 32-7/16 32-23/64 23-25/32 23-11/16
RM3962 41-39/64 41-9/16 23-25/32 23-11/16
INSTALLING THE DOOR PANEL(S)
Before starting the mounting work, read this section thorough-
ly. Make sure the panel dimensions are in compliance with
those given in “PANEL DIMENSIONS”. After having mounted
the panel(s) as described in “MOUNTING INSTRUCTIONS”,
install the handles. For installation instructions for RM3762
& RM3962 (stainless steel doors) and for NDM1062, see “IN-
STALLING THE DOOR HANDLES”.
DOOR PANEL DIMENSIONS
RM2351, RM2354, RM2410, RM2451, RM2454, RM2510,
RM2620, DM2652, DM2662, DM2663, RM2551, RM2554,
RM3762, RM2820, DM2852, DM2862, RM3962 & NDM1062
RM2620 & RM2820
To change the door hinges from one side to the other, follow
these steps:
1. Open the upper door and remove the two screws
holding the top decoration. (The screws are acces-
sible from beneath.)
2. Remove the top hinge pin and lift out the door.
3. Remove center hinge pin and lift out the lower door.
4. Unscrew the bottom hinge pin.
5. Remove the plastic cap from the opposite lower
hinge and place it in the hole just “left empty” by
the lower hinge pin.
6. Screw the lower hinge pin in the hole from which
the plastic cap was removed.
7. Before replacing the doors on the refrigerator,
remove the catches and move them to the opposite
side of the cabinet. The holes are covered with
plastic caps that must be removed and inserted in
the holes that previously held the catches.
8. Unscrew the handles and move them to the opposite
side of the door.
9. Insert the plastic caps into the holes left open on the
doors. (Plastic caps for empty holes are in the parts
bag inside the refrigerator.)
10. Remount the doors and hinge pins in the reverse
order of their removal.
11. Before the top decoration is retted, check that the
door closes easily and the gasket seals well on all
sides.

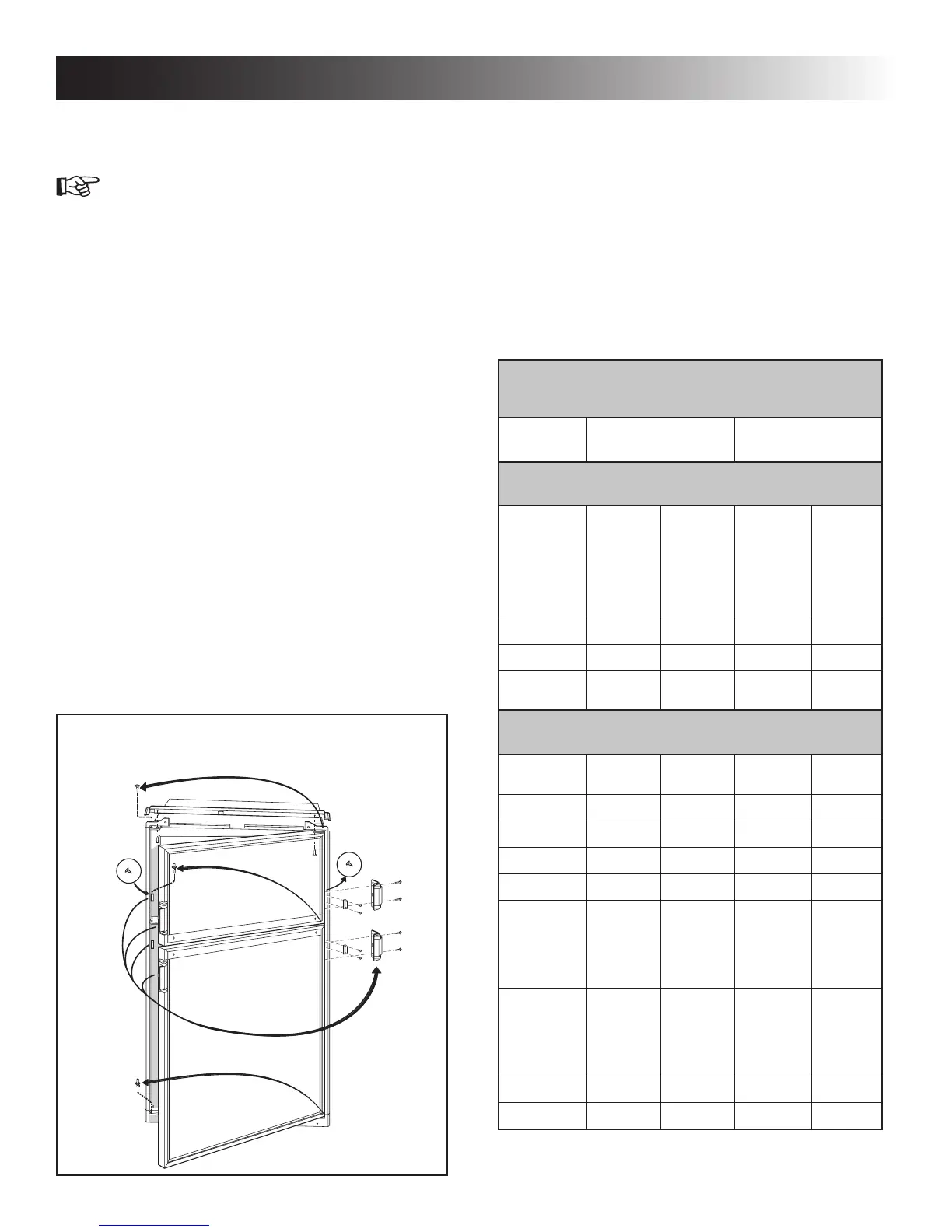

FIG 20 - RM2620 & RM2820, REVERSING THE DOOR SWING
