Dometic DMR 7-Series - Appendices; Appendix A - Rearview Equipment

- 22 -


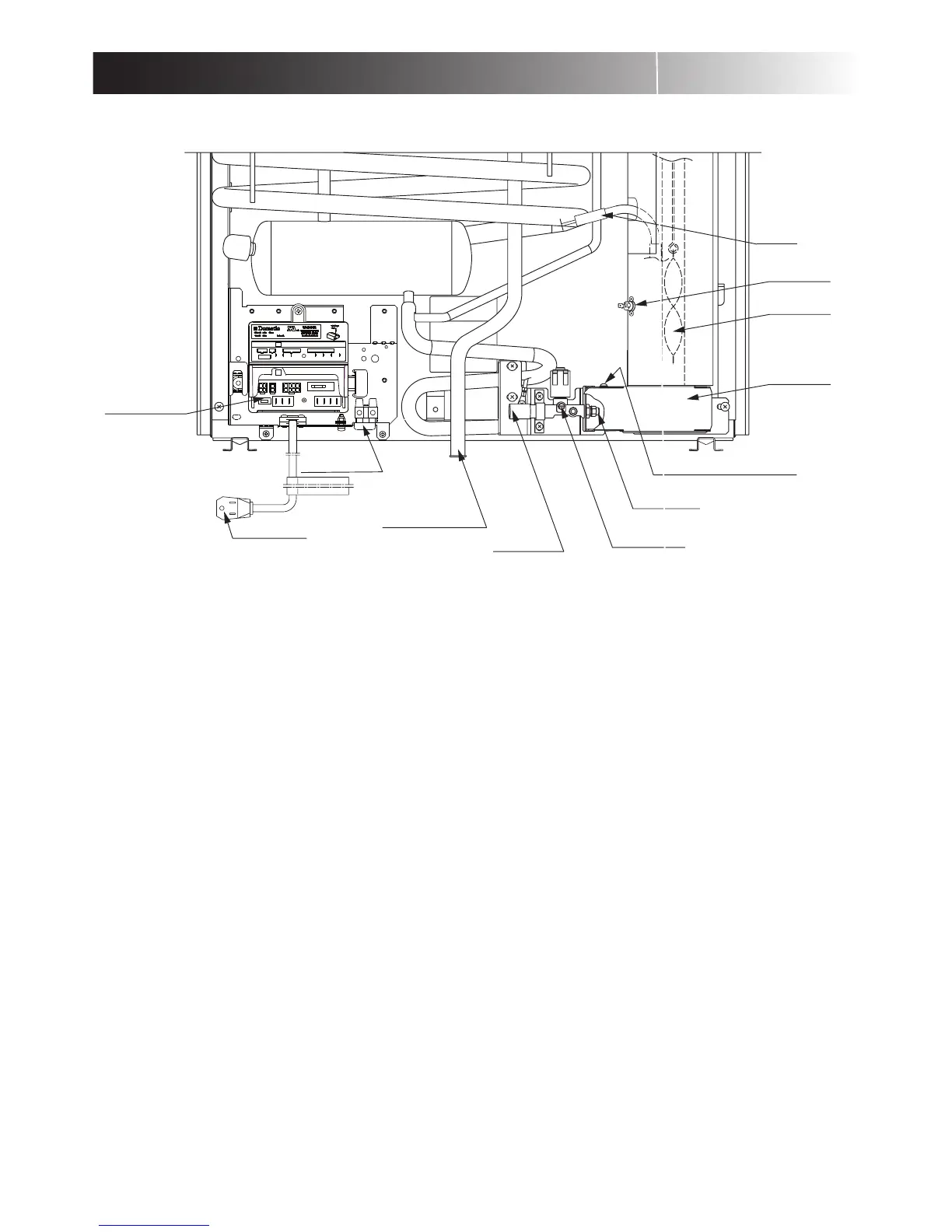

Power module
Flexible cord
12 volt
Terminal block
Drain water hose
Inlet fitting
Manual gas
shutoff valve
Burner jet
Screw for protection cover
Protection
cover
Flue baffle
Heater
Thermofuse
385 13 31−01
5
12V DC
HVT
J2
J3
J1
F4 (5A)
F3 (5A)
SWITCHED
12V
LAMP
TEST
LINE
AC HTR
LINE
AC HTR
NEUT
NEUT
