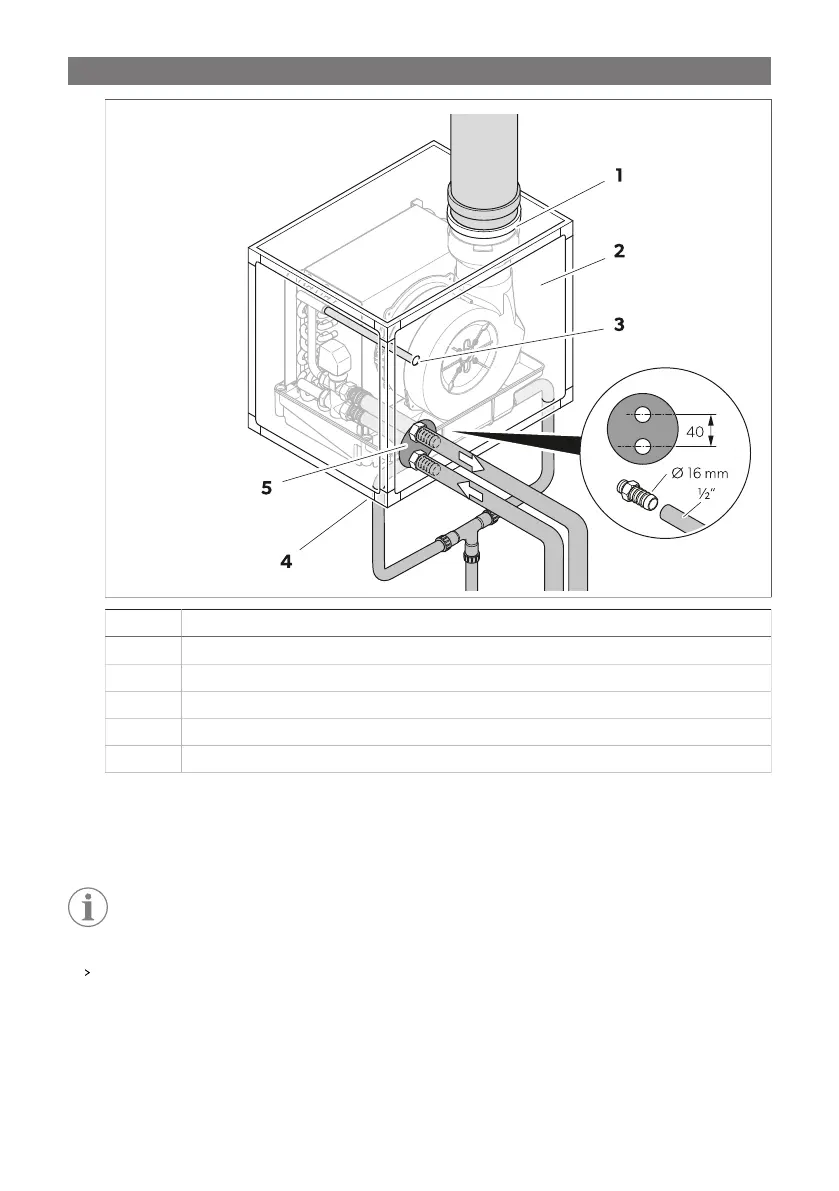

No. Description
1 Supply air connection manifold
2 Fan side
3 Air flush
4 Drainage
5 Water connection
Installing a drip tray (optional)
If the ship or boat has severe roll or hull pitch above the standards or if the fan coil needs to be installed in the false
ceilings, the installation of an additional drip tray is neccesarry.
NOTE There are 2 types of drip tray, one for a single vent valve and one for all fan coil models. In order to
reduce the vibrations transmitted to the structure install rubber buffer when using a drip tray that can be
used for all fan coils (see Reducing the noise level on page12).
Install an additional drip tray.
13
