The fan coil operates with high-pressure radial fans and can be connected to supply and return
ducts.
The fan coil can be installed outside the cabin to be treated.
The fan of the fan coil, except for the APM and AP12, can be rotated. The installation position of
the fan coil with rotating fan can be adjusted to the installation requirements.
The APM and AP12 fan can be installed only horizontally. A special version that can be installed
vertically can be purchased from Dometic on request.
The fan coils can be controlled by switching the fan on and off or by a vent valve with integrated bypass.

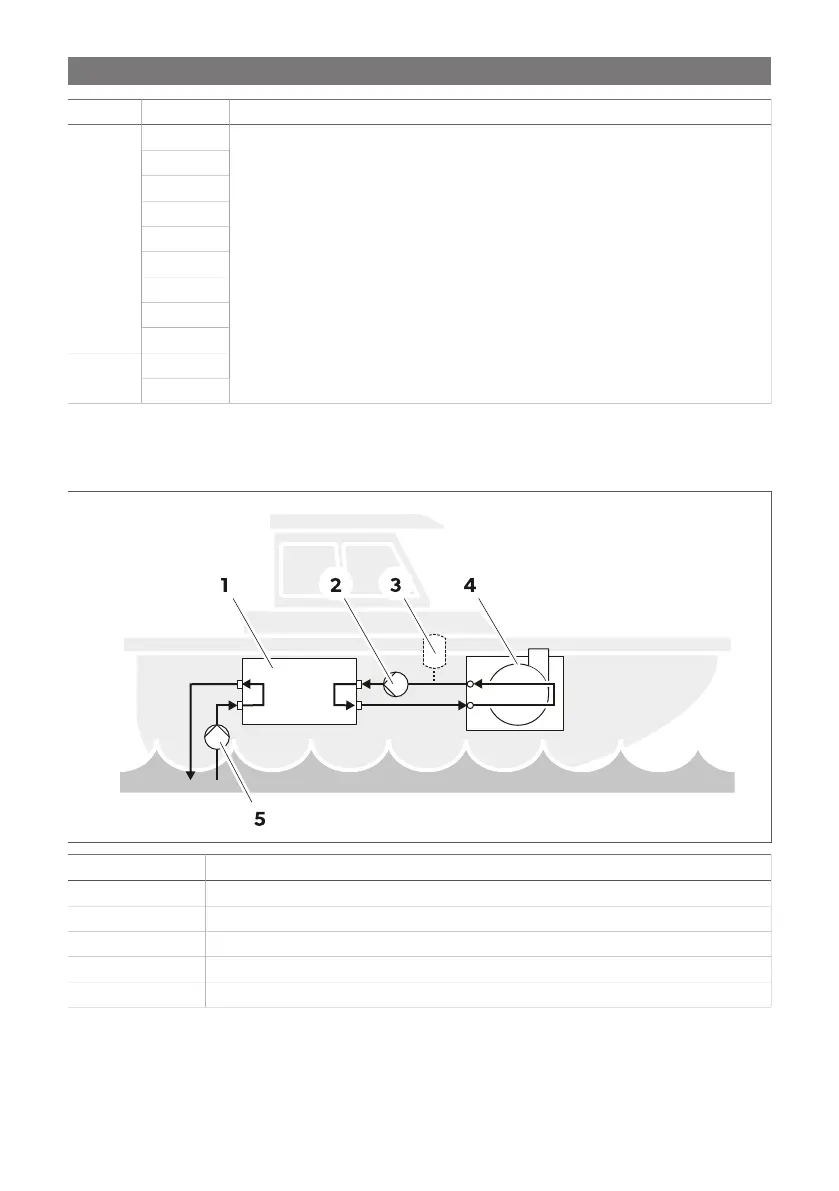

Process description
No. Description
1 Chiller
2 Circulation pump
3 Expansion tank
4 Fan coil
5 Seawater pump
A seawater pump (3) supply water to the chiller (1) which cools or heats the circulation water and directs it via a circu-
lation pump (4) to the water manifold to which one or more fan coils are connected. The water is transported from
the water manifold through the fan coil (2) to the return manifold. The fan coil (2) exchanges heat with the environ-
ment. The return water is heated, returned to the chiller (1), and then released into the circulation.
