Dometic RCD10.5XES - Securing Ventilation Grilles

RCD10.5XES Installation
EN
17

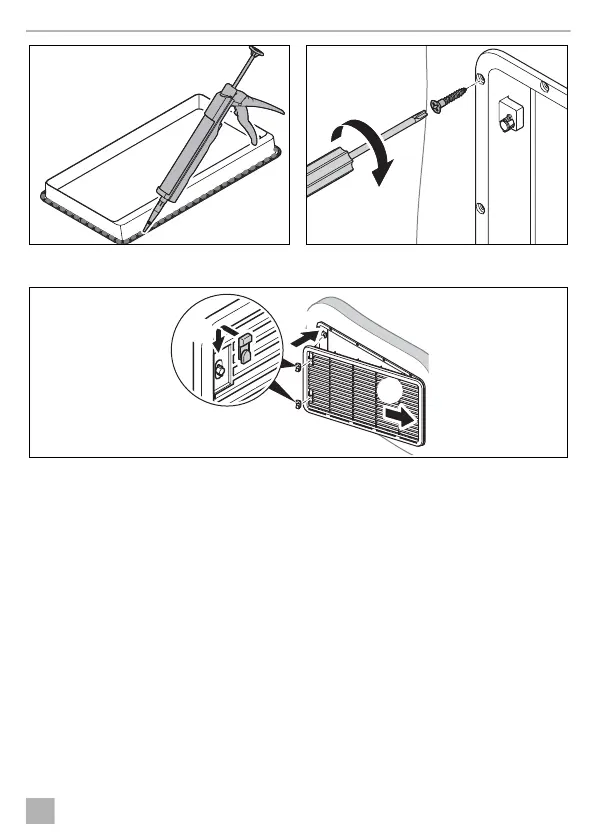

2. Ensure the installation frame is water resistant (fig. 7).
3. Insert the installation frame and screw it down tightly (fig. 8). Use all the fixing holes for this.
4. Fit the ventilation grille (1. and 2. in fig. 9).
5. Insert the slider and lock the ventilation grille with it (3. in fig. 9).
7
8
9
1.
2.
3.
