7. INSTALLING REFRIGERATOR IN
ENCLOSURE
NOTE: DO NOT install the appliance directly on car-
peting. Carpeting must be removed or protected by a
metal or wood panel beneath the appliance, which
extends at least the full width and depth of the appli-
ance.

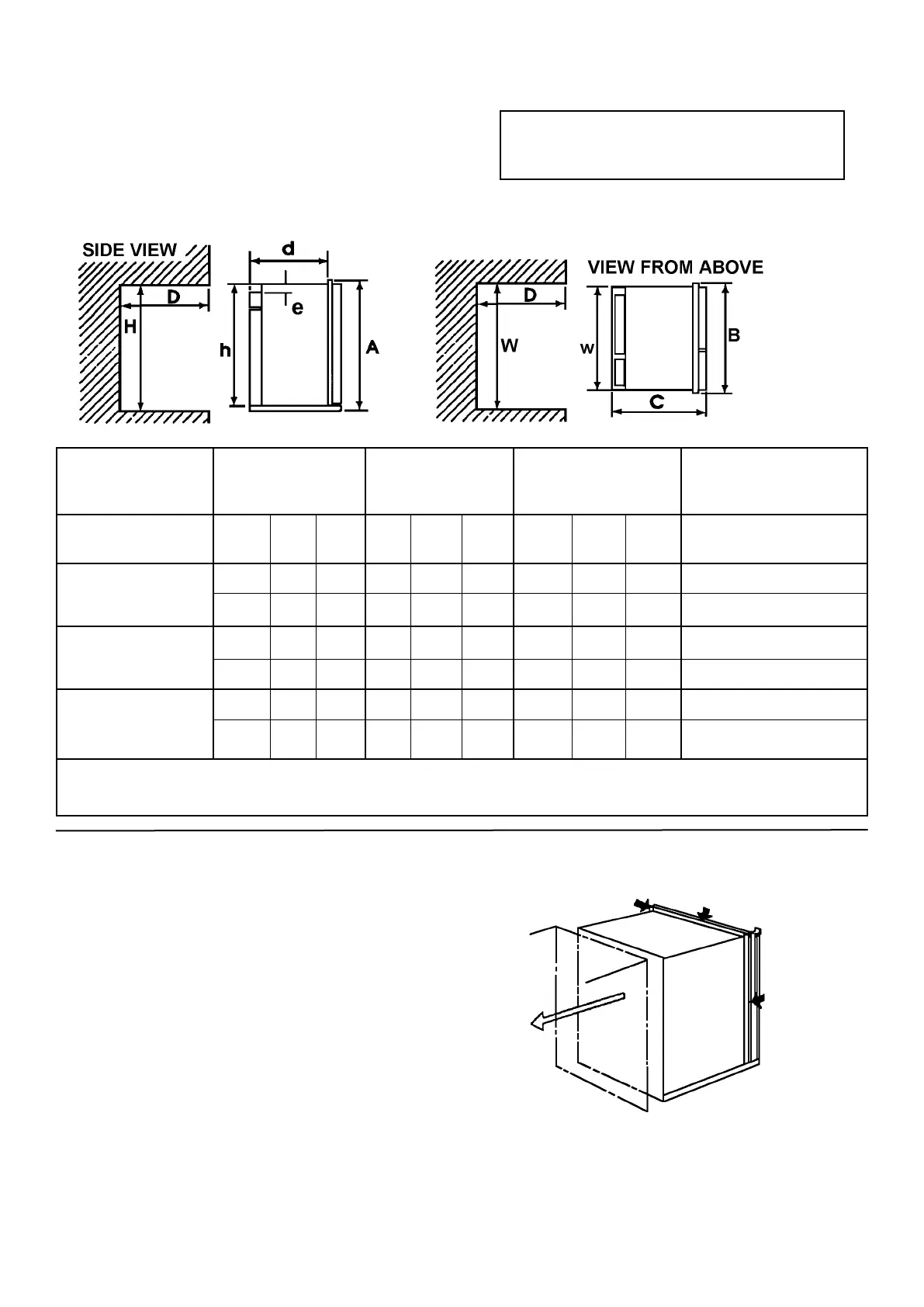

The dimensions shown in FIG.3 will give you
adequate space for service and proper
installation.
FIG. 3
A. INSTALLATION
The refrigerator must be installed in a substantial enclo-
sure and must be level. When installing the refrigerator
in the enclosure, all areas within the recess in which the
refrigerator is installed must be sealed from the living
space.
Make sure that there is a complete seal between the
front frame of the refrigerator and the top, sides and bot-
tom of the enclosure. A length of sealing strip is applied
to the rear surface of the front frame for this purpose
(FIG. 4).
The sealing should provide a complete isolation of the
appliance's combustion system from the vehicle interior.
4
RM 2191 Overall Installation Recessed Distance between
RM 2193 Dimensions Dimensions Dimensions Top of condenser and
Top of refrigerator
Vent Height Width Depth Height Width Depth Height Width Depth
Type A B C h w d H W D e
Dual Metal (inches) 21-9/16 19-5/16 21-7/16 20-5/8 17-1/2 19-7/8 20-7/8 17-3/4 20-7/8 1/4”
Side Vents (mm) 548 491 545 524 445 505 530 451 519 6
Metal & Plastic (Inches) 21-9/16 19-5/16 21-7/16 20-5/8 17-1/2 19-7/8 20-7/8 17-3/4 20-7/8 1/4”
Side Vents (MM) 548 491 545 524 445 505 530 451 519 6
Dual Plastic (Inches) 21-9/16 19-5/16 21-7/16 20-5/8 17-1/2 19-7/8 20-7/8 17-3/4 *20-7/8 1/4”
Side Vents (MM) 548 491 545 524 445 505 530 451 *519 6
* Depth “D” Dimensions Requirement with Plastic Vent System is Dependant on Vehicle Side Wall Thickness. If the Vehicle Side Wall Thickness is less than
1,5 inches ( 38mm ), the Recessed Depth Dimensions will be required to be Increased Proportionally to the Vehicle Wall Thicknes.
FIG. 4
NOTE: Be careful not to damage the sealing strip when
refrigerator is put in place.
