Dometic RM 2620 - Panel Dimensions

INSTRUCTIONS FOR MOUNTING
THE DOOR PANEL
The refrigerator is normally delivered without door pan-
els. Before starting the mounting work, check that the
panel dimensions are in compliance with those given in
the table and the instructions are read thoroughly.

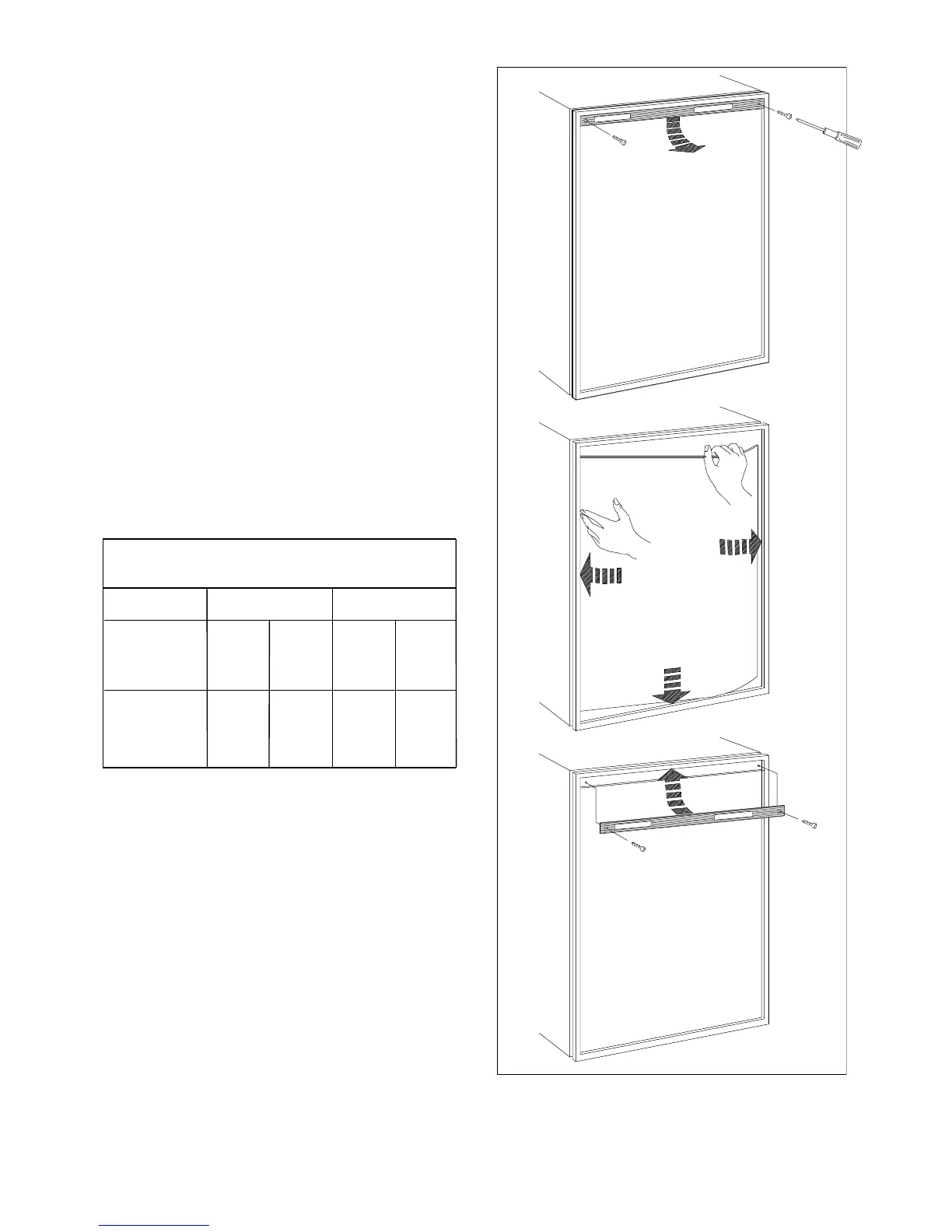

When mounting the panel, proceed as follows):
A. On new refrigerators, the decoration strips are taped
inside the door; if installed on the door, remove the
door decoration strip (2) by removing its two screw
(1).
B. Insert one vertical edge into the groove of the door
frame (3).
C. Bend the panel gently so that the free side of the
panel can be slipped into the corresponding groove
of the door frame (4). Slide the panel down into the
groove of the bottom frame (5).
D. Between the upper edge of the panel and the door
frame there is a gap which should be covered by the
decoration strip.
E. Put the decoration strip across the door so that the
gap is covered and push it upward (6). The tabs on
the inside of the strip should fit behind the flange of
the door frame. Secure the decoration strip with the
two screws removed in Step A (1).
PANEL DIMENSIONS
MAX. THICKNESS 5/32" (4 mm)
REFR.MODELS HEIGHT WIDTH
TYPE MAX. MIN. MAX. MIN.
RM 2620
upper mm 306 304 515 513
inch 12-3/64 11-31/32 20-9/32 20-13/64
lower mm 819 817 515 513
inch 32-1/4 32-5/32 20-9/32 20-13/64
RM 2820
upper mm 378 376 563 561
inch 14-7/8 14-51/64 22-11/64 22-3/32
lower mm 897 895 563 561
inch 35-5/16 35-15/64 22-11/64 22-3/32
