Dometic RM 5310 Installation Instructions

13
Installation

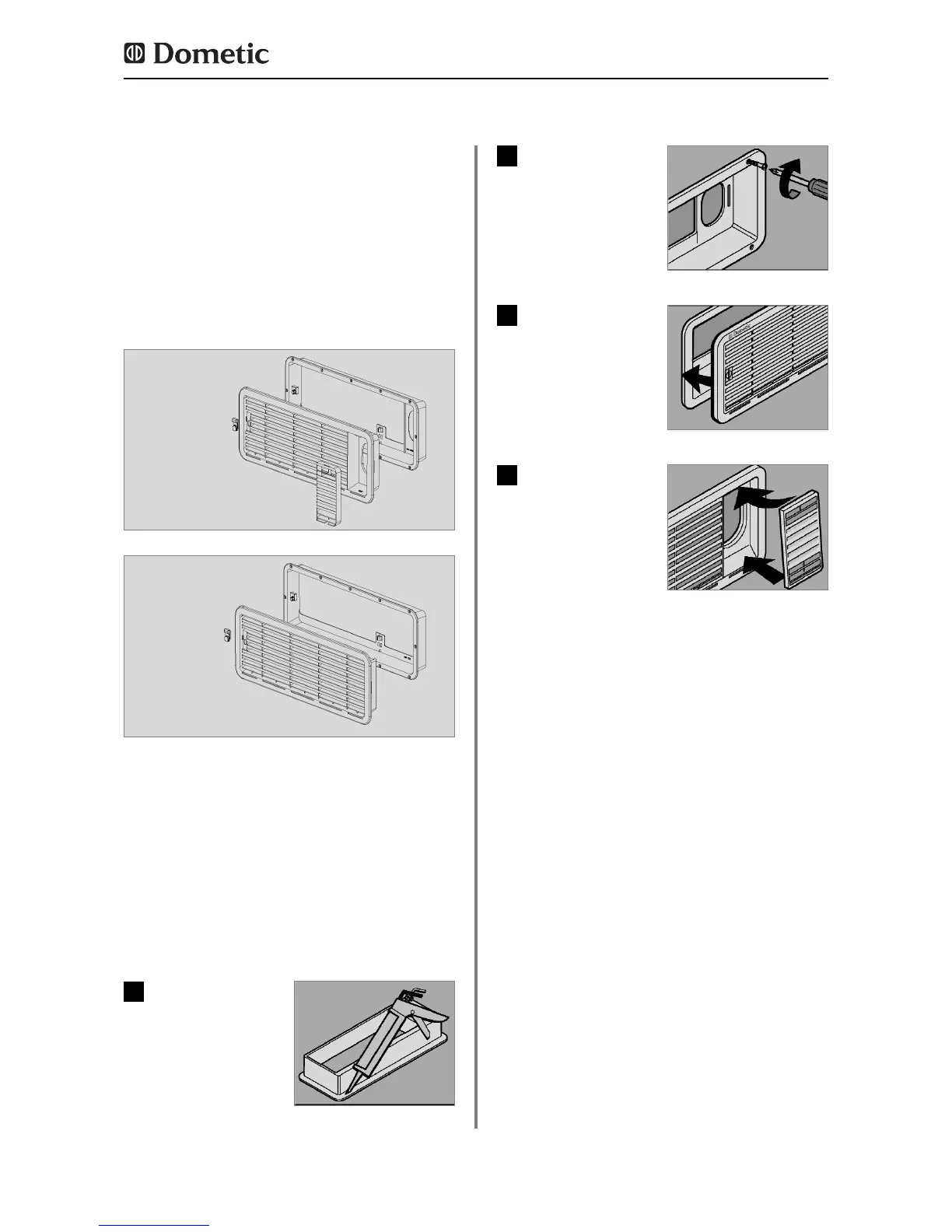

Fig. 19
Dometic recommends the A 1625 ventilation
and flue gas extraction system which has
been tested and approved for this purpose.
These ventilation grills provide the required
open cross-section of at least 250 cm².
4.3 Installing the ventilation
system
LS 100
Fig. 20
LS 200
Top ventilation grille
with flue
Lower
ventilation grille
4.3.1 Ventilation systems
Fig. 23
Seal the mounting frame
making it waterproof
( does not apply for
mounting frames with
integral seal
).
1
Fig. 24
Insert frame and screw
into position
2
To install the ventilation grilles LS 200, cut two
rectangles (451mm x 156mm) in the outer
wall of the vehicle (
for position of the cuts,
s see Fig. 16).
Fig. 25
Insert and lock ventilati-
on grille.
3
Fig. 26
Clip the insert for flue
gas duct in position ( only
for L100 upper ventilati-
on system kit ).
4
4.3.2 Installing LS 100/LS 200
LS 100

Dometic RM 5310 Specifications

General

Climate class	SN
Total net capacity	55 L
Total gross capacity	60 L
Minimum operating temperature	10 °C
Lamp type	LED
Fridge net capacity	50 L
Fridge interior light	Yes
Number of vegetable drawers	-
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	5 L
Storage time during power failure	- h
Current	0.54 A
Power source	Gas/Electric
Connected load	125 W
Gas consumption	270 g/24h
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Door hinge	Left
Control type	Rotary
Product color	Black, Grey
Appliance placement	Freestanding
Refrigerating medium	R717
Package depth	543 mm
Package width	523 mm
Package height	635 mm
Package weight	24000 g

Weight and Dimensions

Depth	474 mm
Width	486 mm
Height	618 mm
Weight	20000 g
