Dometic RM 5330 Installation Instructions

11
Installation

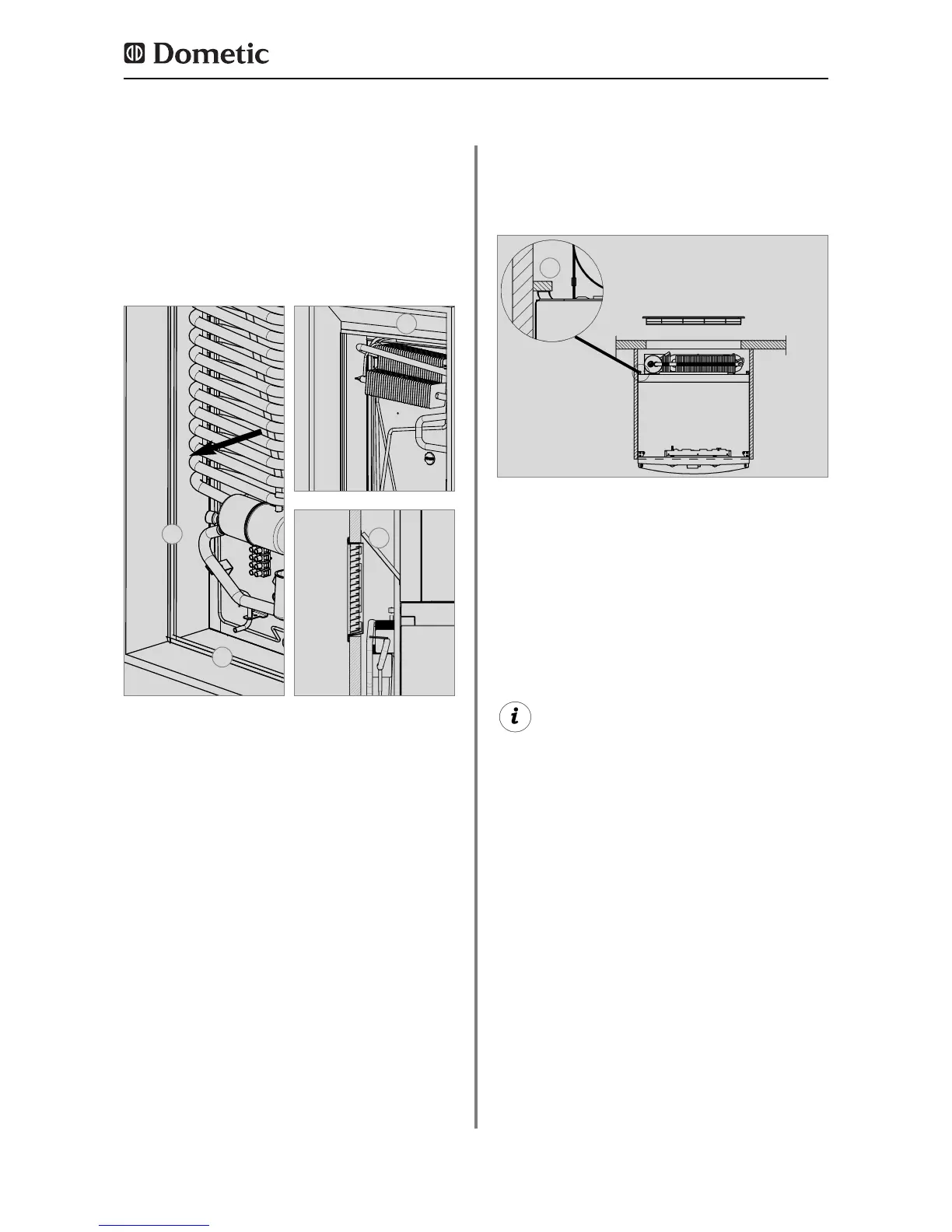

Fig. 12
Fig. 11
Fig. 13
1
1
2
2
installation recess above the refrigerator. Affix
the this plate to the caravan wall, do NOT
attach to the refrigerator !
Attach the deflector plate so that the heated
air escapes through the top ventilation grill into
the open air and no heat build-up can be pro-
duced.
The refrigerator is later pushed into the instal-
lation recess from the front. Ensure that the
seals abut the case evenly.
This installation option facilitates the removal
and installation of the appliance for servicing.
The cavity in-between the outer vehicle wall
and refrigerator is completely isolated from the
vehicle interior. Intrusion of exhaust fumes into
the living space is prevented. Fumes will esca-
pe through the upper ventilation grille to the
outside.
Fig. 14/15
Fasten the sealing lips to a stop bar on the
rear side (1), e.g. by gluing.
1
Proposal 2
Deviations require the consent of the
manufacturer!

Dometic RM 5330 Specifications

General

Noise level	- dB
Climate class	SN
Total net capacity	65 L
Total gross capacity	70 L
Lamp type	LED
No Frost (fridge)	-
Fridge net capacity	60 L
Fridge interior light	Yes
Door hinge	Left
Product color	Black, Grey
Appliance placement	Freestanding
Refrigerating medium	R717
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	5 L
Storage time during power failure	- h
Current	0.54 A
Power source	Gas/Electric
Connected load	125 W
Gas consumption	270 g/24h
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Package depth	543 mm
Package width	523 mm
Package height	845 mm
Package weight	27000 g

Weight and Dimensions

Depth	474 mm
Width	486 mm
Height	821 mm
Weight	22000 g
