Dometic RM 5330 Installation Instructions

15

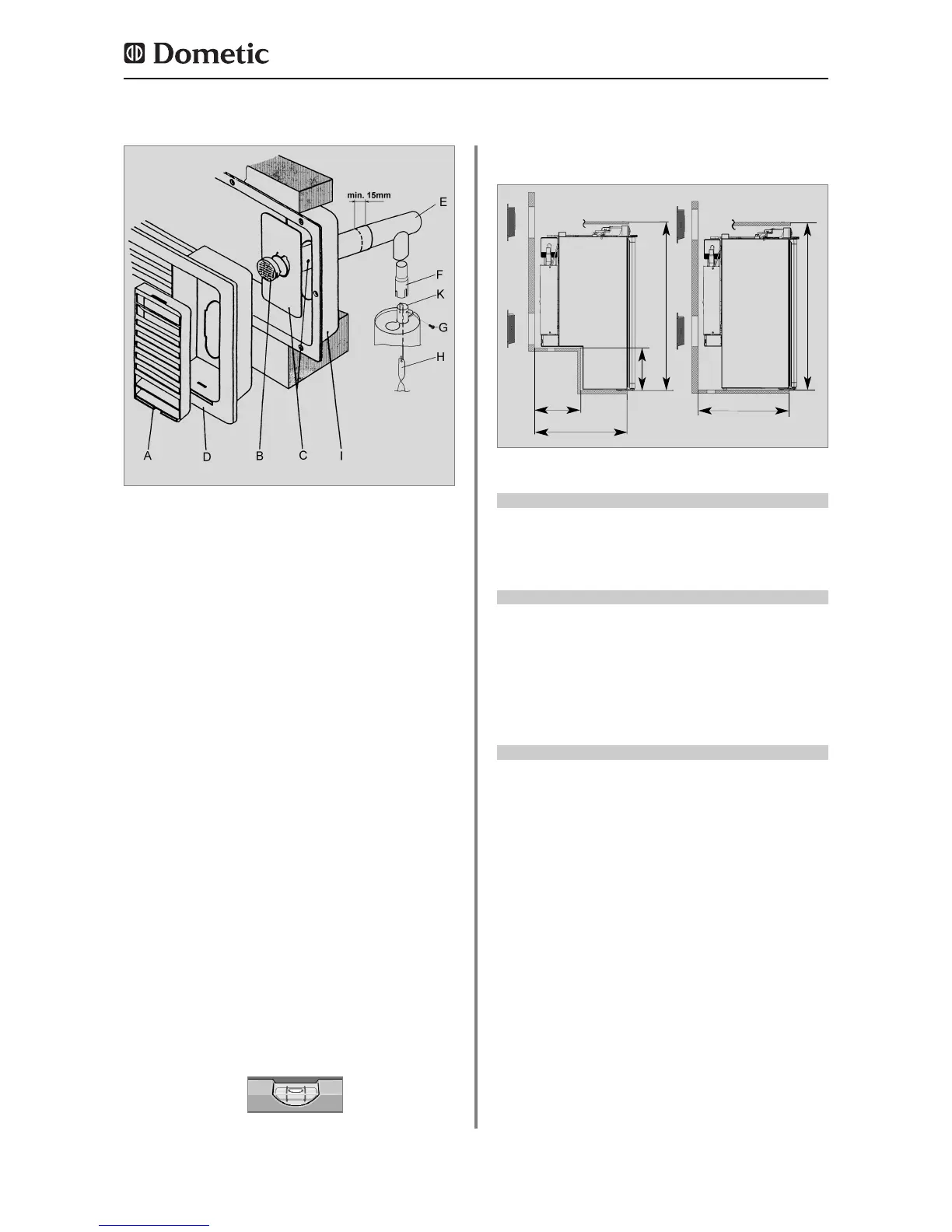

Fig. 25
4.5.1 Installation in the recess
Push the appliance far enough into the recess
until the front edge of the refrigerator casing is
aligned with the front of the recess. Allow a
gap of 15-20 mm between the back wall of
the recess and the refrigeration unit.
Ensure that the refrigerator is installed
level in the recess.
The refrigerator must be installed draught-
proof in a recess (also refer to Section "4.1.4").
The measurements of the recess are stated in
the table below. Step A (Fig. 26) is only requi-
red for cabinets with a step. The floor of the
recess must be level, allowing the appliance to
be pushed easily into its correct position. The
floor must be substantial enough to bear the
weight of the appliance.
4.5 Installation recess
Installation
4.5.2 Recess dimensions
Fig. 26
A
H
T
T
ST
H
ST
Height Width Depth
620 mm 490 mm 450 mm
Model RM 5330
Height Width Depth
825 mm 490 mm 450 mm
Height
Step
Width
Step
Depth
Step
220 mm 490 mm 225 mm
Model RM 5380
Height Width Depth
825 mm 490 mm 450 mm
Model RM 5310
H
T

Dometic RM 5330 Specifications

General

Noise level	- dB
Climate class	SN
Total net capacity	65 L
Total gross capacity	70 L
Lamp type	LED
No Frost (fridge)	-
Fridge net capacity	60 L
Fridge interior light	Yes
Door hinge	Left
Product color	Black, Grey
Appliance placement	Freestanding
Refrigerating medium	R717
Freezer position	Top-placed
Freezing capacity	- kg/24h
Freezer net capacity	5 L
Storage time during power failure	- h
Current	0.54 A
Power source	Gas/Electric
Connected load	125 W
Gas consumption	270 g/24h
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Package depth	543 mm
Package width	523 mm
Package height	845 mm
Package weight	27000 g

Weight and Dimensions

Depth	474 mm
Width	486 mm
Height	821 mm
Weight	22000 g
