19
Installation

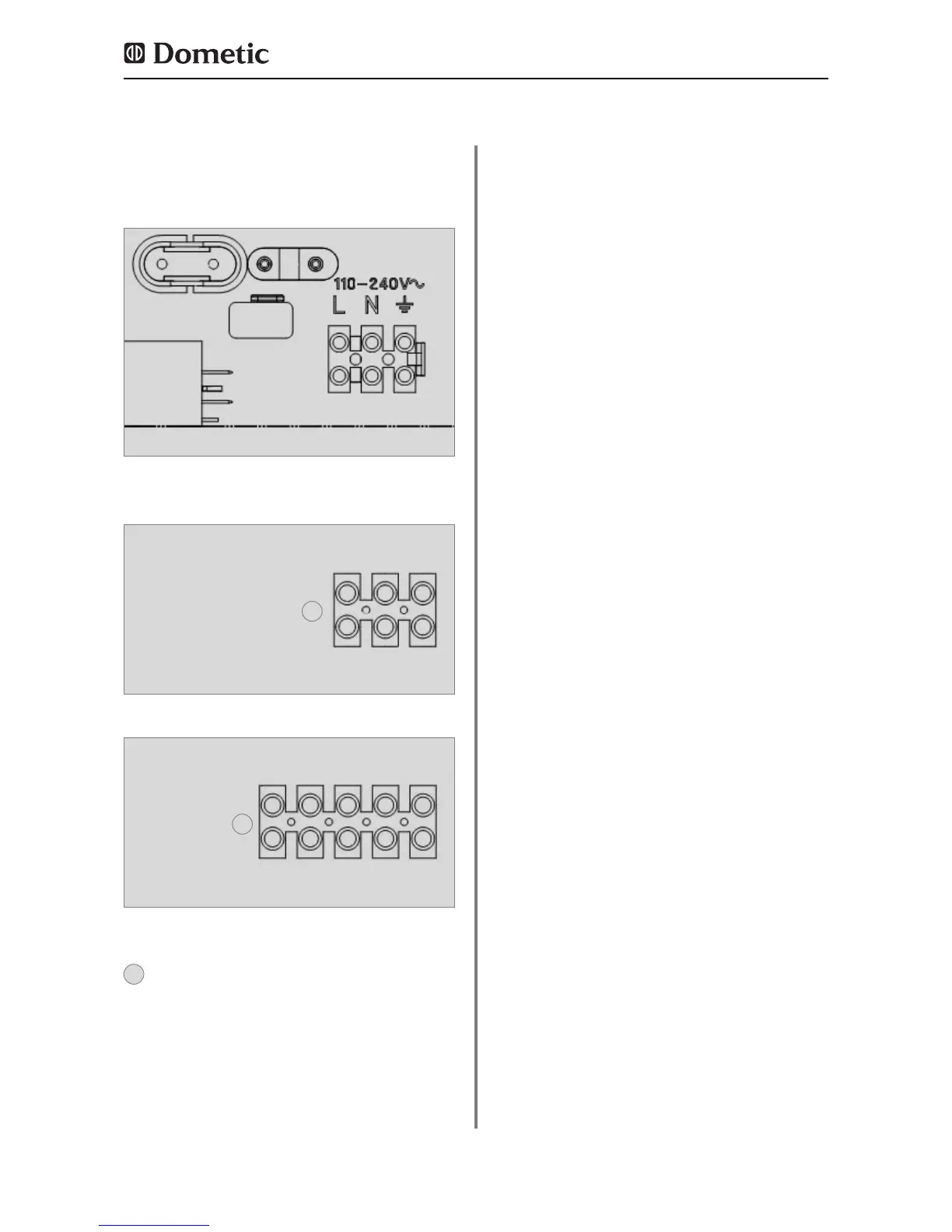

Fig. 35
4.9.3 Terminal block
Connections :
A = Ground heating element DC
B = Positive connection, h.e. DC
C = Ground interior lighting
D = Positive connection, interior lighting
Fig. 36
Fig. 37
1
1
1
A
B
A
B
C
D
12V- connection
appliance without interior lighting
mains connections
12V- connection
appliance with interior lighting
